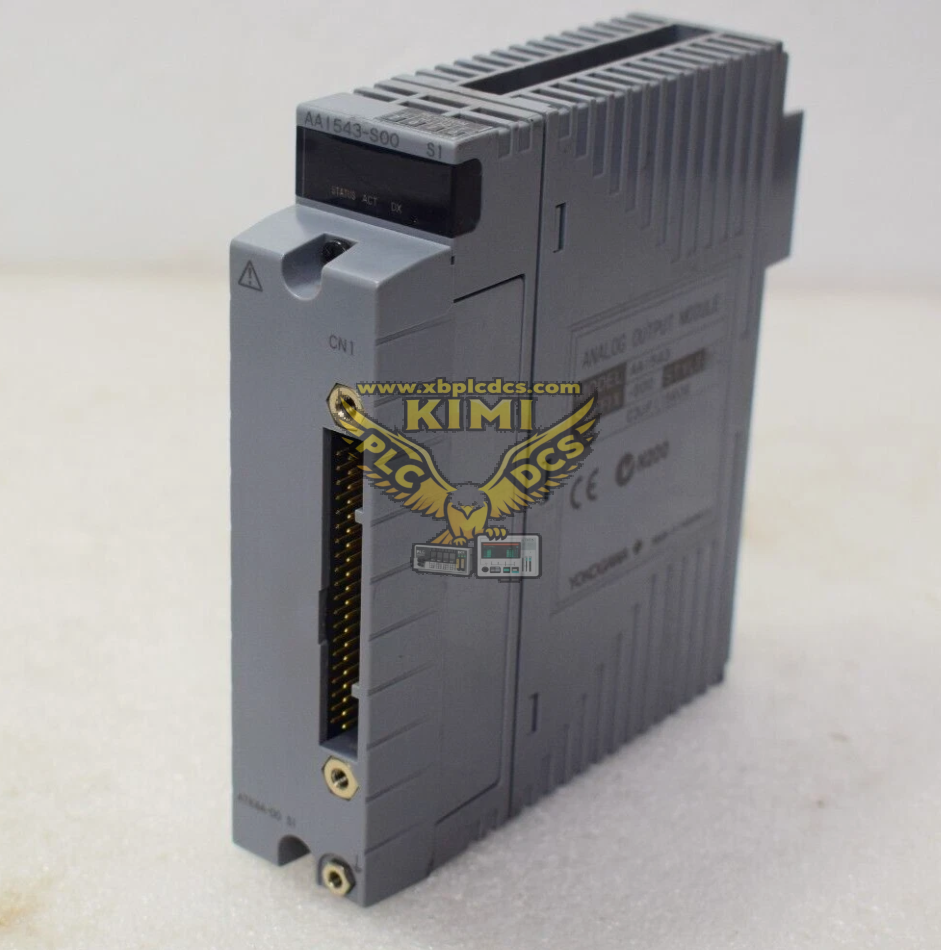

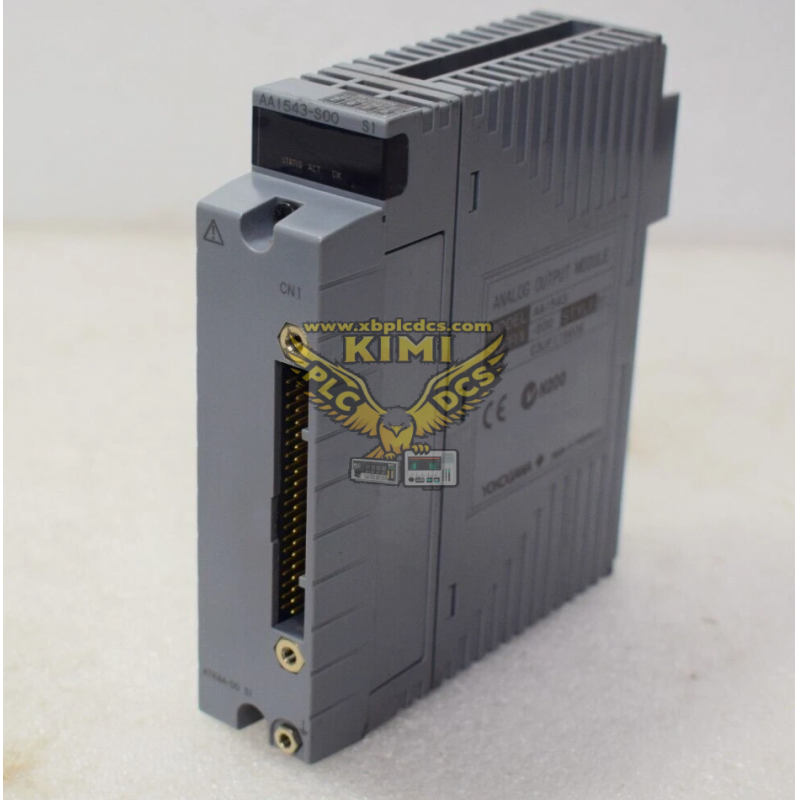

Product Model: YOKOGAWA AAI543‑S00 S1, 16‑Channel Isolated 4‑20mA Analog Output Module (CENTUM‑VP DCS)
1. Product Description
AAI543‑S00 S1 is a hot‑swappable analog output module manufactured by Yokogawa for the CENTUM‑VP distributed control system. It delivers 16‑channel galvanically‑isolated 4‑20 mA DC control signals for field actuators, without built‑in HART communication capability. The S1 hardware variant is equipped with pressure‑clamp terminal blocks for fast field wiring. Each channel provides 1500V AC isolation between field side and DCS system bus, high‑precision D/A conversion, open‑circuit detection and surge protection circuits. Communicating with the FCS controller via the ESB backplane bus, it supports dual‑redundant installation with standard switch‑over performance. The module is rated for continuous operation from ‑20℃ to +70℃, and meets industrial anti‑interference standards for 24‑hour unattended process‑control cabinet operation.
2. Core Product Functions
- Convert digital control commands from DCS controller into standard 4‑20 mA analog current output signals
- Drive field control devices: control valves, I/P converters, variable‑speed drives and position actuators
- Full galvanic isolation for each output channel, preventing ground‑loop interference and surge damage to the DCS rack
- Built‑in hardware open‑loop detection to alarm broken wiring between module and field actuator
- Support hot‑swap replacement and dual‑redundant configuration for non‑stop process operation during maintenance
- 10 ms fast data update cycle to satisfy dynamic closed‑loop control requirements for critical industrial loops
- Real‑time self‑diagnosis for output over‑load, short‑circuit, back‑plane communication and power‑supply faults
- Upload output‑channel status and fault alarms to operator HMI and upper‑level SCADA monitoring system
3. Application Scenarios
- Petrochemical refining plant pipeline flow‑valve, pressure‑valve and tank liquid‑level closed‑loop DCS control cabinets
- Thermal‑power‑plant boiler fuel‑valve, steam‑turbine bypass‑valve and flue‑gas damper regulation racks
- Chemical factory reactor temperature, feeding‑flow and reaction‑pressure automatic adjustment control panels
- Municipal water‑supply and sewage‑treatment plant pump frequency‑converter and dosing‑valve control stations
- Natural‑gas compressor‑station non‑hazardous‑area anti‑surge valve and process‑flow regulation systems
- Metallurgy, cement and papermaking production‑line continuous‑process actuator control DCS nodes
4. Common Problems & Troubleshooting
Q1: DCS controller cannot detect AAI543‑S00 S1 module after rack power‑on
A: Power‑off the DCS node rack, pull out and fully re‑seat the module; clean oxidized gold‑finger contacts on the ESB‑bus back‑plane slot; check stable 24VDC auxiliary‑power‑supply output.
Q2: 4‑20 mA output signal drifts severely, field valve jitters or cannot maintain stable opening
A: Verify load resistance of field actuator within 0‑750Ω allowable range; replace ordinary cables with shielded twisted‑pair wiring; separate analog output cables from high‑power motor power lines.
Q3: DCS reports channel open‑circuit fault while the field actuator wiring is physically connected
A: Retighten pressure‑clamp terminal screws; remove oxide on wire metal contacts; inspect aging or high‑resistance joints in long‑distance field cables.
Q4: Single‑channel output remains fixed, cannot respond to control‑signal changes sent by DCS logic
A: Swap the field actuator cable to a spare healthy output channel to confirm internal module hardware failure; download and re‑activate loop configuration parameters in the engineering tool.
Q5: Redundant primary‑standby module switch‑over failure triggers temporary valve bump or process disturbance
A: Confirm identical configuration parameters for both main and standby modules; clean ESB‑bus back‑plane communication contacts; inspect loose internal inter‑module connection cables inside the DCS rack.
