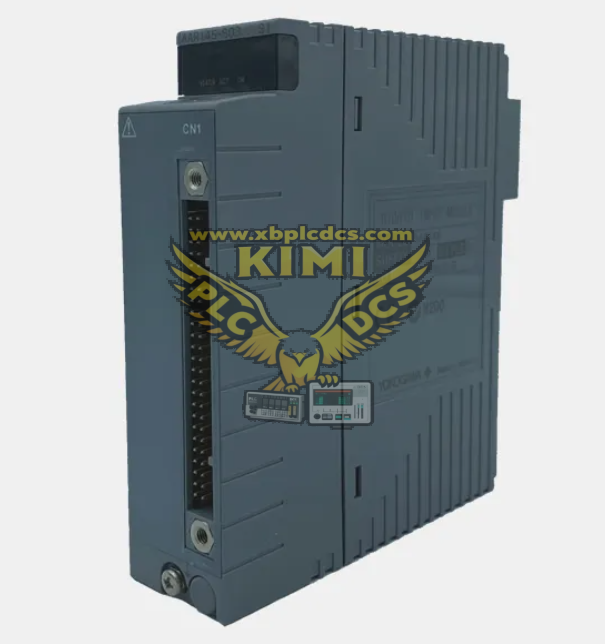

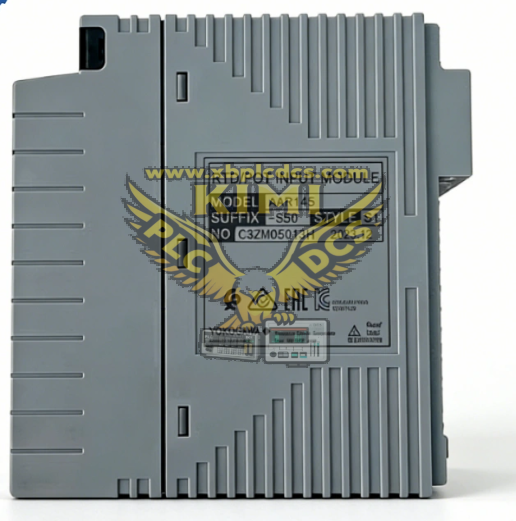

The Yokogawa AAR145-S50 is a 16-channel galvanically isolated RTD input module within Yokogawa’s FIO field I/O series, designed exclusively for resistance temperature detector signal acquisition in CENTUM CS3000 and CENTUM VP distributed control systems. It supports industry-standard Pt100, Pt50, Cu50, Cu100 resistance temperature sensors with flexible 2-wire, 3-wire and 4-wire wiring configurations to eliminate lead wire resistance measurement errors. Each channel features 1500VAC isolation between field circuits and the DCS backplane, suppressing ground loop noise and electromagnetic interference in heavy industrial environments. Equipped with high-precision constant current excitation circuits and 16-bit A/D converters, the module delivers temperature measurement accuracy up to ±0.1°C for Pt100 sensors. The S50 variant is a standard analog temperature input model without HART protocol support. It supports dual redundant hot backup installation for critical temperature monitoring loops, with a 50ms full-channel scan cycle. Conformal coated PCBs ensure stable operation from 0°C to +60°C inside control cabinets. Spring-clamp terminal blocks simplify field sensor wiring, while front-panel multi-color LEDs indicate power status, module hardware faults and individual channel abnormal alarms for rapid field maintenance. The module receives 24VDC power supply via the rack backplane and transmits processed temperature data to DCS control stations through the FIO bus.

• 16 independent isolated measurement channels to collect resistance signals from Pt/Cu RTD temperature sensors simultaneously
• Configurable wiring modes: 2-wire, 3-wire, 4-wire compensation to offset lead resistance and improve long-distance temperature reading precision
• Multi-type sensor compatibility: supports Pt100, Pt50, Cu50, Cu100 standard industrial resistance temperature detectors
• 16-bit high-resolution A/D conversion and constant current excitation circuit to guarantee high-precision temperature measurement
• Full channel-to-backplane galvanic isolation to block common-mode noise, ground loop currents and EMI interference
• Dual redundant hot backup function; automatic seamless switchover without temperature data loss when primary module fails
• Comprehensive channel self-diagnosis: open-circuit sensor wire, short-circuit wiring, abnormal resistance range and internal hardware failure detection
• Configurable digital signal filtering to smooth fluctuating temperature readings caused by field electrical interference
• Fast 50ms full-channel scanning cycle to meet real-time temperature closed-loop control requirements of industrial processes
• Front panel LED status indicators to display normal running, general module fault and single-channel abnormal alarm status
• Spring-clamp quick wiring terminals for convenient connection of field temperature sensor cables without screwdriver tightening
• Continuous temperature data transmission to DCS control stations via FIO backplane bus for PID regulation, trend recording and HMI display

• Built-in overcurrent and short-circuit protection for each sensor excitation channel to avoid damage to module circuits and RTD probes

• Thermal Power Plants: Furnace wall temperature, steam pipeline, boiler drum and exhaust flue gas temperature continuous monitoring
• Petrochemical Refineries: Distillation tower, reactor, heat exchanger and crude oil pipeline temperature closed-loop control
• Oil & Gas Platforms: Storage tank medium temperature, pipeline transmission medium temperature and compressor bearing temperature measurement
• Chemical & Fertilizer Plants: Synthesis reactor temperature, catalyst bed temperature and raw material preheating tank temperature monitoring
• Metallurgical Steel Mills: Heating furnace, continuous casting roller and cooling water circulation temperature acquisition
• Pharmaceutical & Fine Chemical Factories: Constant-temperature reaction kettle, drying oven and sterile workshop precise temperature control
• Water Treatment Plants: Wastewater tank, heating exchange equipment and biochemical reaction pool temperature monitoring systems
• DCS Equipment Retrofit: Spare replacement temperature input module for aging Yokogawa CENTUM CS3000 control cabinets

• Q: AAR145-S50 general fault LED flashes after power-on, no temperature data uploaded to DCS?
  A: Check loose backplane insertion, unstable 24VDC rack power supply, large-area field wiring short-circuit or damaged internal measurement circuit; re-seat the module and inspect terminal wiring faults.
• Q: Single channel triggers open-wire alarm, while the RTD sensor is physically intact?
  A: Check loose spring-clamp terminals, broken internal sensor cable cores, incorrect 2/3/4-wire configuration in DCS software, or excessive lead resistance exceeding module compensation range.
• Q: Does AAR145-S50 support HART communication for smart temperature transmitters?
  A: No, the S50 version only processes passive RTD resistance signals without HART digital communication function; select H-series modules if HART compatibility is required.
• Q: Is hot swapping available for AAR145-S50 when the FIO rack is powered on?
  A: Single non-redundant modules cannot support hot swap. Only the standby card of dual redundant pairs can be replaced online; fully cut off rack power before replacing single modules to prevent FIO bus communication crash.
• Q: Temperature values jump drastically and show unstable fluctuations during long-term operation?
  A: Enable digital filtering function in DCS configuration; separate sensor signal cables from high-current power cables to reduce EMI; re-tighten loose terminal contacts and clean dust on wiring terminals.
• Q: Measured temperature has large deviation from actual medium temperature after wiring new Pt100 sensors?
  A: Confirm correct wiring mode selection (3-wire or 4-wire for long-distance sensors); recalibrate channel zero offset parameters in control station software; check sensor aging or damage.
• Q: Is Yokogawa AAR145-S50 still supplied for new DCS construction projects?
  A: This classic FIO RTD input module is still provided as official spare parts for maintenance. Yokogawa recommends the latest compact I/O series for newly built industrial control projects.
