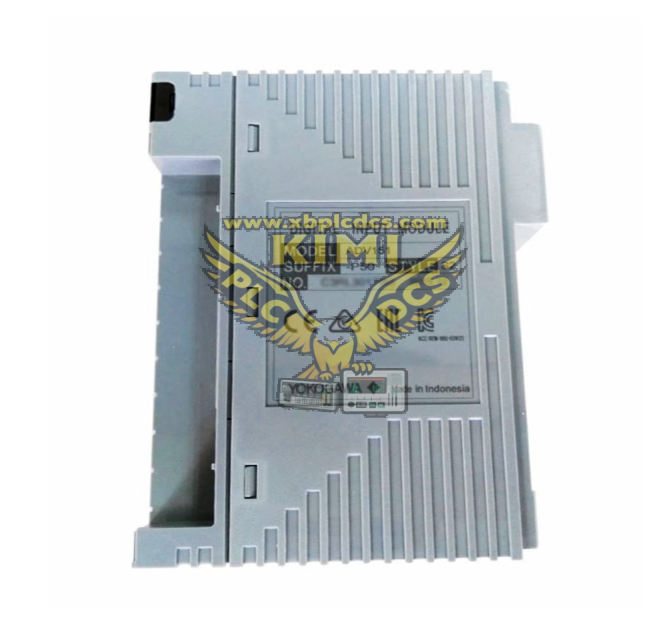

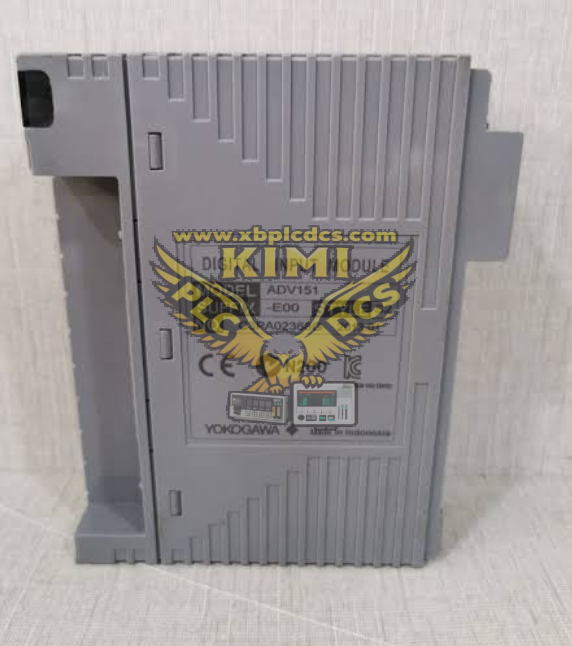

Yokogawa ADV151-S50 is a high-density 32-channel galvanically isolated digital input module belonging to Yokogawa FIO (Field Input/Output) series, fully compatible with CENTUM CS3000 and CENTUM VP distributed control systems. It collects standard 24VDC binary ON/OFF signals from field devices including limit switches, proximity sensors, equipment status feedback contacts, fault alarm switches and local push buttons. Each group of channels provides group-to-backplane galvanic isolation with 1500VAC dielectric strength to eliminate ground loop interference and heavy electromagnetic noise in industrial plant environments. The S50 version is a basic standard digital input variant without SOE (Sequence of Event) timestamp capture function; the E50 model is selected when millisecond-level event sequence recording is required. The module supports dual redundant communication bus configuration for high-reliability control units, with a fast signal scan cycle to ensure real-time state acquisition of field digital points. It supports three wiring modes: spring pressure-clamp terminal block, MIL connector cable and dedicated AKB331 signal cable for flexible field wiring layout. The PCB is coated with conformal coating for dust, moisture and corrosive gas resistance, operating stably within 0°C ~ +60°C cabinet ambient temperature, powered by 24VDC backplane power supply of FIO base unit. Multi-color LED indicators on the front panel display module running status, general hardware faults and channel group abnormal alarms for quick on-site maintenance diagnosis.

• 32 independent digital input channels for synchronous acquisition of 24VDC binary status signals from field switches and contact sensors
• Group-based galvanic isolation design to suppress common-mode noise, ground loop currents and EMI interference between field equipment and DCS backplane
• Multi wiring compatibility: spring-clamp terminals, MIL connector cables and AKB331 dedicated signal cables adapt to different cabinet wiring standards
• Built-in reverse polarity protection and overvoltage suppression for each input channel to prevent module circuit damage caused by field wiring misconnection
• Dual redundant ESB bus communication support; seamless data transmission backup to avoid signal loss during single communication channel failure
• Comprehensive self-diagnosis functions: backplane communication error, power supply abnormality and internal hardware circuit fault detection
• Configurable digital signal filter in DCS software to eliminate contact bounce and transient noise of mechanical switches, stabilizing digital state readings
• Fast periodic signal scanning to upload real-time equipment status to the control station for interlock logic, alarm judgment and HMI display
• Front panel LED status indication: power running light, module fault alarm light and group channel abnormal prompt for rapid troubleshooting
• Standard FIO backplane bus interface, supporting installation on AMN/ANB series base units and seamless docking with CENTUM VP/CS3000 control stations

• Compact single-slot structure, high channel density to save cabinet installation space for large-scale digital signal monitoring systems

• Thermal Power Plants: Boiler door limit feedback, fan running status, pump fault alarms, valve position switch and furnace safety interlock signal collection
• Petrochemical Refineries: Emergency stop button, safety valve feedback, pump motor operation state and tank high/low level switch monitoring
• Oil & Gas Onshore/Offshore Platforms: Pipeline cut-off valve status, compressor vibration alarm and wellhead safety switch digital signal acquisition
• Chemical & Fertilizer Plants: Reactor safety interlock contact, feeding equipment running feedback and pressure relief valve position monitoring
• Water & Wastewater Treatment Plants: Pump running feedback, gate valve limit switch, liquid level overflow alarm and disinfection equipment status collection
• Metallurgical Steel Mills: Heating furnace door interlock, conveyor broken belt alarm and rolling mill auxiliary equipment status monitoring
• Pulp & Paper Factories: Paper machine auxiliary switch feedback, drying oven safety alarm and raw material conveying equipment status detection
• DCS Retrofit & Maintenance Projects: Spare replacement digital input module for aging Yokogawa CENTUM CS3000 control cabinets

• Q: ADV151-S50 fault LED lights red after power-on, all digital input signals cannot be uploaded to DCS?
  A: Check loose module insertion on FIO base unit, abnormal 24VDC rack power supply, short-circuit of multi-channel field wiring or damaged internal communication circuit; re-seat the module and inspect terminal wiring short faults.
• Q: Individual channel status shows abnormal jump and unstable switching state in DCS picture?
  A: Enable software signal filter to suppress mechanical contact bounce; separate signal cables from high-power motor cables to reduce EMI interference; check loose spring-clamp wiring terminals.
• Q: Does ADV151-S50 support SOE millisecond event sequence recording for safety interlock events?
  A: No, S50 standard version has no SOE function. Select ADV151-E50 module if high-precision event timestamp tracking is required for safety systems.
• Q: Is hot swapping supported for ADV151-S50 when the FIO rack is powered on?
  A: Hot swap is not allowed for single non-redundant modules. Cut off the entire rack power supply before disassembly to avoid ESB bus communication crash and interlock misoperation.
• Q: Field switch has normal 24VDC signal, but DCS always displays OFF state for corresponding channel?
  A: Inspect reversed positive/negative wiring of field contact; check open circuit of signal cable; confirm no overvoltage protection triggered by abnormal field voltage.
• Q: Dual redundant communication configuration fails, only single bus channel can transmit data normally?
  A: Check loose ESB bus connector of the base unit; verify correct dual-bus parameter configuration in control station engineering software; replace damaged communication cable.
• Q: Is Yokogawa ADV151-S50 still supplied for brand-new DCS construction projects?
  A: This classic FIO digital input module is still available as official spare parts for maintenance. Yokogawa recommends the latest compact I/O series for new greenfield industrial control projects.
