Brief Product Description

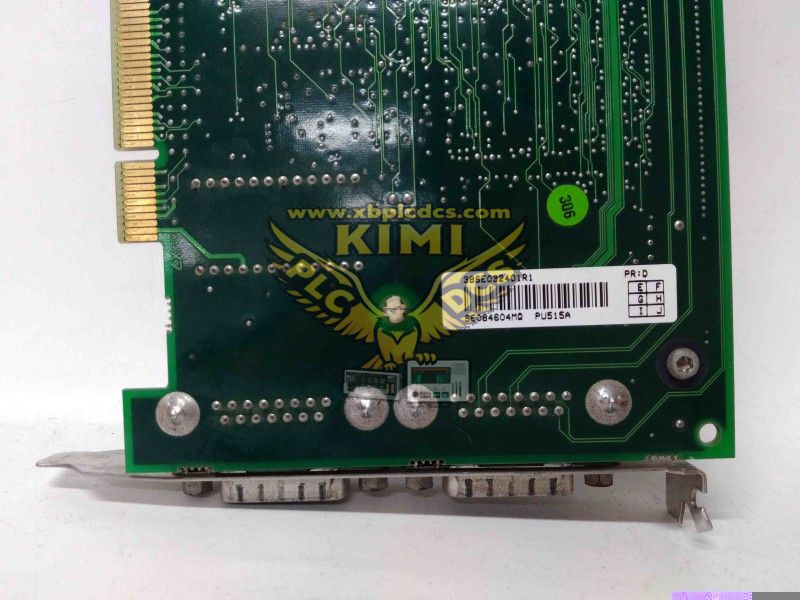

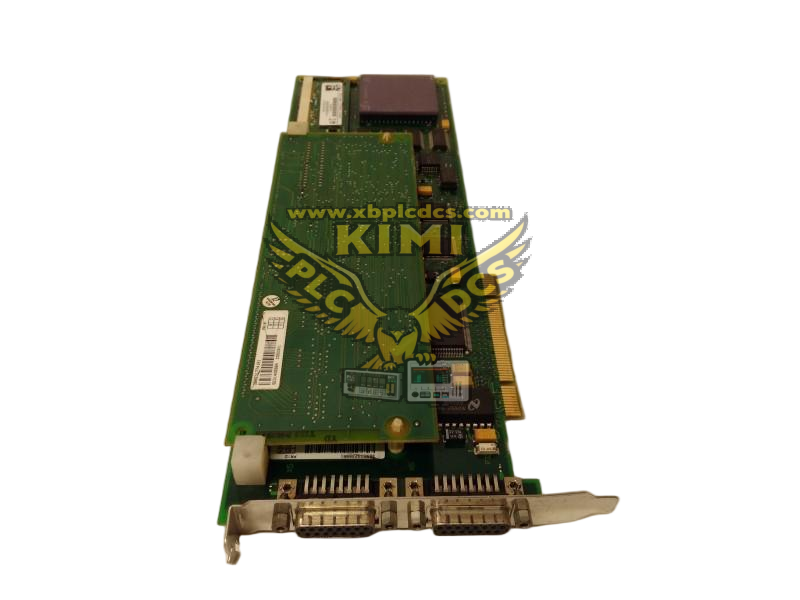

ABB PU515A, part number 3BSE032401R1, is a PCI Real-Time Accelerator (RTA) board for ABB Advant OCS / MOD300 DCS platform. It is installed in Advant Master or engineering station PCI slot, equipped with on-board processor and dedicated memory to offload high-speed MB300 fieldbus communication and real-time data processing from host PC CPU. Dual-channel MB300 bus interface ensures high-speed, deterministic data exchange between operator station/engineering station and DCS controllers. This legacy ABB DCS hardware is end-of-life, only surplus and fully refurbished tested units available for existing Advant OCS system maintenance and spare replacement.

Core Product Functions

• PCI real-time accelerator RTA board for ABB Advant OCS / MOD300 DCS
• Onboard 25MHz dedicated processor + 16MB local memory for bus data preprocessing
• Dual MB300 bus channels via dual 15-pin D-Sub connectors
• Offload MB300 bus heavy communication tasks to reduce host PC CPU load
• Provide deterministic high-speed data exchange between station and DCS controllers
• Supports redundant MB300 bus connection for high availability control system
• Real-time process data refresh, alarm and remote command transmission
• Diagnostic LEDs on board for communication and hardware fault indication

• Installed inside Advant Master / OS500 engineering & operator station PCI slot

Application Scenarios

• Legacy ABB Advant OCS / MOD300 DCS operator & engineering station
• Thermal power plant main DCS human-machine interface station
• Petrochemical, refinery continuous process Advant control system
• Pulp & paper, cement plant old ABB Advant DCS platform
• Metallurgy, water treatment Advant OCS system spare replacement

• Existing Advant DCS maintenance, spare parts and system retrofit

FAQ (Frequently Asked Questions)

• Q: Station cannot connect to DCS controllers after installing PU515A?
  A: Check PCI seat contact, MB300 bus cable and termination resistor, D-sub connector, RTA driver software, board firmware and bus redundancy configuration.
• Q: What is difference between PU515A 3BSE032401R1 and PU515 (3BSE013063R1)?
  A: PU515A is upgraded revision of PU515, improved hardware stability, backward compatible; both are RTA boards for MB300 bus.
• Q: Can PU515A run on normal industrial PC without Advant software?
  A: No, it requires dedicated Advant OS500 software and driver, only works for Advant OCS platform.
• Q: Is ABB PU515A available for new DCS projects?
  A: End-of-life legacy Advant OCS component, no new original production. Recommend migration to ABB newer DCS systems. Only surplus/refurbished tested spares for existing Advant systems.
• Q: Common failure modes?
  A: PCI gold finger oxidation, D-sub connector pin corrosion, onboard memory chip aging, bus transceiver damage caused by surge, firmware corruption.
