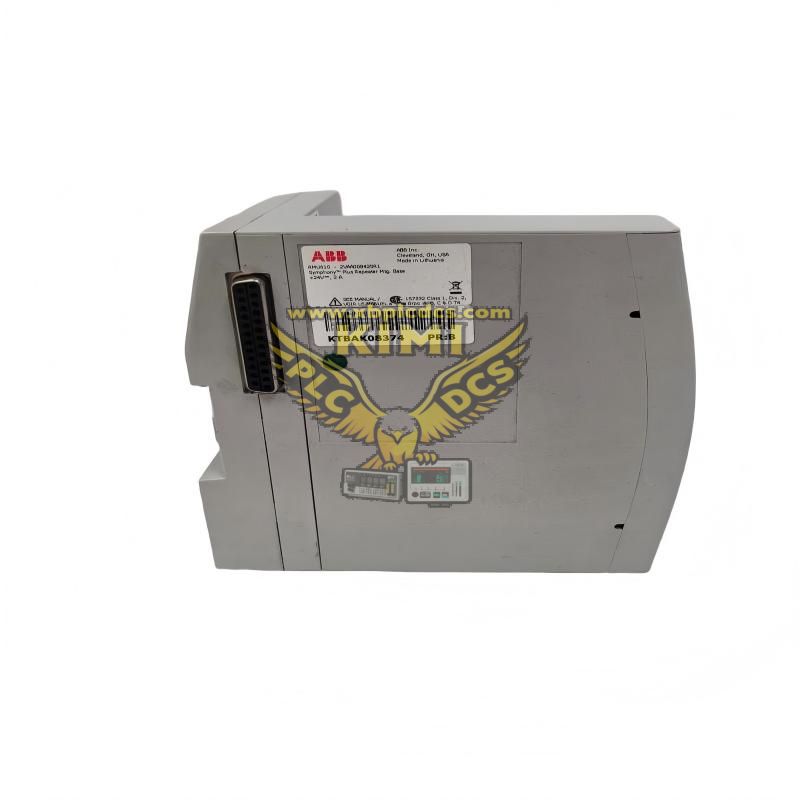

ABB RMU610 2VAA008425R1 Rack Mounting Unit
Modular Mounting Frame for Symphony Plus HN800 I/O System Modules
1. Core Product Overview
The ABB RMU610 (2VAA008425R1) is a dedicated rack mounting unit engineered for the Symphony Plus HN800 I/O system, serving as the structural foundation for mounting, securing and powering HN800 series I/O modules, bus extenders and auxiliary components in industrial control cabinets. It features a modular, compact mechanical design optimized for standard industrial rack enclosures, providing precise mounting positions and robust mechanical fixation for HN800 modules to prevent displacement caused by industrial vibration and shock. The unit integrates a centralized 24VDC power distribution system with overvoltage and overcurrent protection, delivering stable power to all mounted HN800 components while simplifying cabinet wiring and power management. Built with industrial-grade rugged materials and anti-corrosion coating, it operates stably in harsh industrial environments (-25°C~+70°C) with strong electromagnetic interference, and is fully compatible with all HN800 series peripherals (e.g., CHBX01L bus extender), forming a complete, scalable mounting and power solution for HN800 I/O systems in process control and industrial automation applications.
• Core Role: HN800 I/O system structural mounting; module fixation; centralized 24VDC power distribution; cabinet wiring integration; industrial rack compatibility
• Model Info: RMU610 (ABB type designation); 2VAA008425R1 (official part number); rack mounting unit; Symphony Plus HN800 series dedicated accessory
• Key Specs: 24VDC ±15% power input; centralized power distribution; modular mounting slots; anti-vibration fixation; -25°C~+70°C operating temp; IP20 front protection; steel alloy construction
• Reliability: IEC 60068 vibration/shock compliance; overvoltage/overcurrent protection; anti-corrosion coating; dustproof design; 100,000+ hours structural MTBF
2. Mechanical Design & Mounting Performance
The RMU610 2VAA008425R1 features a high-strength steel alloy frame with precision-machined mounting slots, designed to perfectly match the mechanical dimensions of HN800 I/O modules and bus extenders, ensuring a tight, vibration-resistant fit with no loose connections during long-term operation. It supports standard 19-inch industrial rack mounting and DIN rail fixation, with adjustable mounting brackets for flexible cabinet layout and easy integration into existing control system enclosures. The unit incorporates a snap-in locking mechanism for each mounting slot, enabling tool-free installation and replacement of HN800 modules, greatly reducing on-site commissioning and maintenance time. Its rigid structural design withstands industrial vibration (5-50Hz, IEC 60068-2-6) and shock impact (15g, IEC 60068-2-27), preventing module damage and signal interruption caused by mechanical stress. The frame is coated with anti-corrosion and anti-static paint, protecting against rust and electrostatic discharge (ESD) in humid or dusty industrial environments, and the compact form factor maximizes the use of cabinet space for high-density HN800 I/O system configuration.
• Structural Construction: High-strength steel alloy frame; anti-corrosion/anti-static coating; precision-machined mounting slots; rigid vibration-resistant design
• Mounting Compatibility: 19-inch industrial rack mount; DIN rail fixation; adjustable mounting brackets; control cabinet compatible; flexible layout options
• Module Fixation: Snap-in locking mechanism; tool-free installation/replacement; precise HN800 module fit; anti-displacement design; vibration-dampening structure
• Space Optimization: Compact form factor; high-density mounting slots; integrated wiring channels; minimal cabinet footprint; scalable module expansion
3. Power Distribution & Electrical Protection
The RMU610 2VAA008425R1 integrates a centralized 24VDC power distribution system, with a single power input port and multiple isolated power output terminals for each mounted HN800 module, simplifying cabinet power wiring and eliminating the need for separate power supplies for individual components. It supports a wide voltage input range of 24VDC ±15%, adapting to unstable power grid conditions in industrial sites, and the built-in power regulation circuit ensures a stable 24VDC output for HN800 modules with low voltage ripple (<50mV). The unit is equipped with comprehensive electrical protection functions, including overvoltage protection (30VDC cutoff), overcurrent protection (per-channel current limiting) and short-circuit protection, which automatically cut off power to faulty channels to prevent damage to the entire HN800 system and power supply equipment. It also features electrical isolation between the power input and output circuits (2.5kV galvanic isolation), reducing electromagnetic interference between the power supply and signal circuits, and LED power status indicators for each output channel, enabling quick identification of power supply faults for on-site troubleshooting.
• Power Specifications: 24VDC ±15% input; 24VDC stable output;<50mV voltage ripple; centralized power distribution; isolated output channels
• Electrical Protection: 30VDC overvoltage cutoff; per-channel overcurrent limiting; short-circuit protection; 2.5kV galvanic isolation (input/output); reverse polarity protection
• Wiring & Indication: Integrated wiring channels; terminal block connections; LED power status indicators (per channel); input power LED; fault alarm LED
• Power Efficiency: High-efficiency power regulation; low standby power consumption; heat-dissipating design; no fan operation (passive cooling)
4. System Compatibility & Industrial Adaptation
The RMU610 2VAA008425R1 is 100% compatible with all ABB Symphony Plus HN800 series components, including HN800 I/O modules, CHBX01L bus extenders, auxiliary connection modules and signal conditioning units, supporting seamless module expansion and flexible system configuration. It natively integrates with the HN800 bus system, ensuring unobstructed signal transmission between mounted modules and the HN800 controller, with no additional bus adapters required. The unit is designed for harsh industrial environments, with a wide operating temperature range of -25°C to +70°C and 5-95% non-condensing relative humidity, adapting to extreme temperature and humidity conditions in petrochemical, power generation and metallurgical industries. It complies with IEC 61000-4 EMC standards, with built-in EMI shielding and surge suppression, effectively resisting electromagnetic interference from industrial equipment such as frequency converters and high-voltage motors. The IP20 front protection design prevents dust and debris from entering the mounting slots, and the passive cooling structure eliminates the risk of fan failure, ensuring long-term, maintenance-free operation in industrial control cabinets.
• HN800 Compatibility: HN800 I/O modules; CHBX01L bus extenders; HN800 auxiliary modules; signal conditioning units; seamless bus integration
• System Integration: Symphony Plus automation system; HN800 controller; industrial control cabinets; 19-inch standard racks; DIN rail mounting systems
• Environmental Adaptation: -25°C~+70°C operating temp; 5-95% non-condensing humidity; passive cooling; dustproof design; corrosion resistance
• EMC & Reliability: IEC 61000-4 EMC compliance; EMI shielding; surge suppression; IEC 60068 vibration/shock resistance; IP20 front protection
5. Typical Applications & Industrial Compliance
Key Industrial Sectors: Thermal/hydro/wind/solar power generation; petrochemical/chemical process control; steel/metallurgy smelting; oil/gas pipeline transportation; water/wastewater treatment; manufacturing automation; industrial process control.
Core Use Cases: Symphony Plus HN800 I/O system mounting; industrial control cabinet integration; centralized 24VDC power distribution; high-density HN800 module configuration; on-site automation system commissioning; HN800 system maintenance and expansion.
Certifications & Compliance: IEC 61131-2 (industrial control equipment); IEC 61010-1 (electrical safety); IEC 60068 (vibration/shock); IEC 61000-4 (EMC/surge/ESD); CE/UL/RoHS certified; IP20 front protection; 19-inch rack standard compliance.
Quality & Warranty: ABB genuine original accessory; factory pre-assembled and tested; 24-month standard warranty; industrial-grade long-life materials; anti-corrosion/anti-static construction; technical support for HN800 system rack configuration and cabinet integration.
