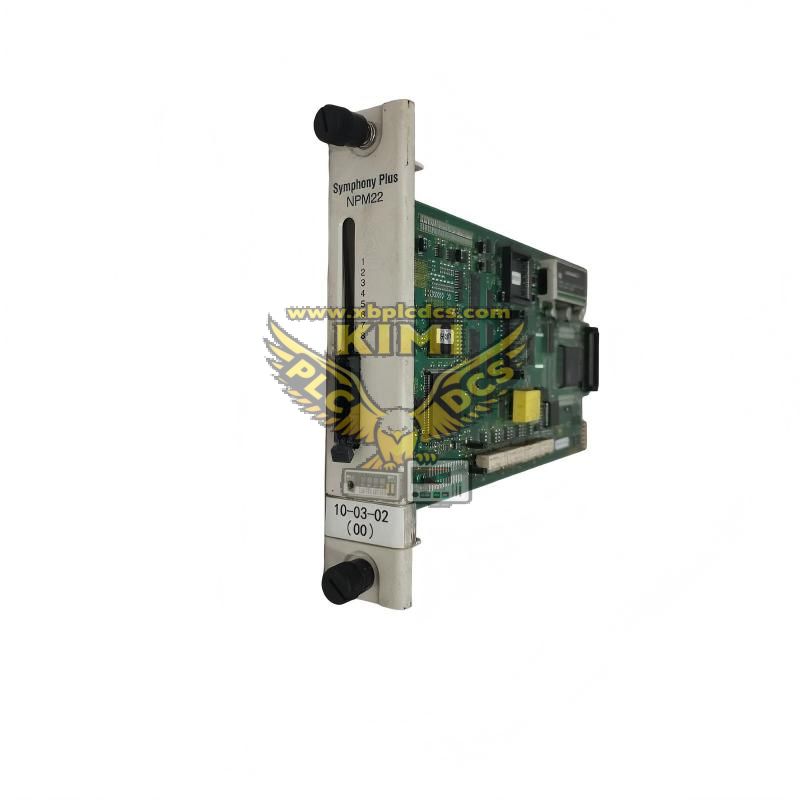

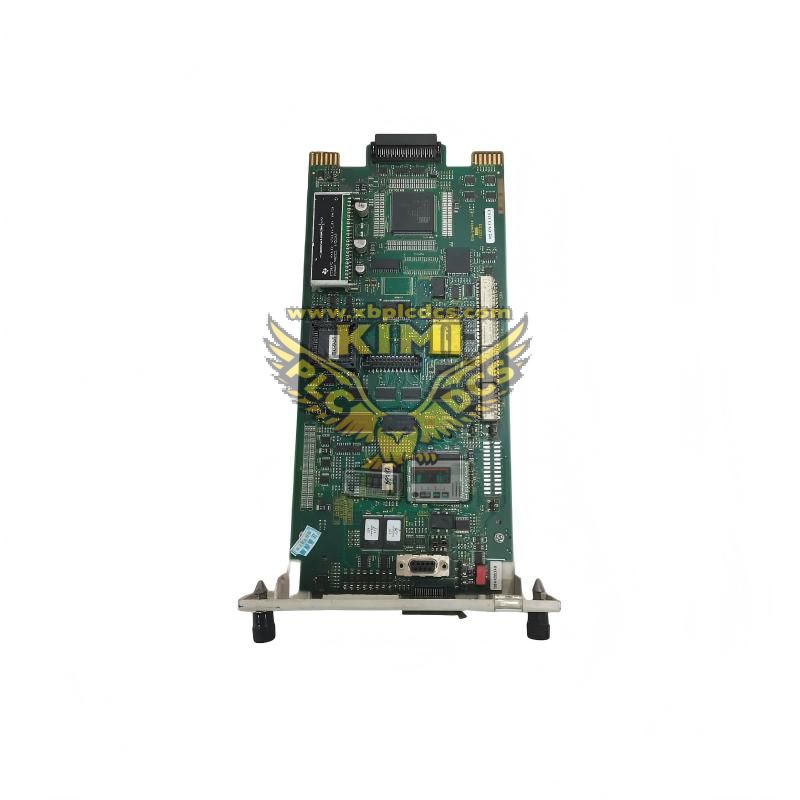

ABB Bailey Infi 90 SPNPM22 Network Processor Module
Infi 90 DCS | Network Communication Core | Infi‑Net Data Routing | Real‑Time Process Control & Redundant Network Management
1. Core Product Overview
The ABB Bailey SPNPM22 is a Network Processor Module (NPM) for ABB Bailey Infi 90 DCS, acting as the core communication gateway between Infi‑Net (ABB’s proprietary DCS backbone) and Infi 90 controller racks (e.g., IMASI03, IMMFP12), remote I/O, and operator stations. It routes real‑time process data (I/O values, alarms, control commands) across the DCS with<5ms latency, supporting redundant Infi‑Net rings for fault‑tolerant operation (<5ms failover). The module uses a 32‑bit embedded processor for high‑speed data handling, 128MB SDRAM for buffering, and dual 24V DC redundant power inputs for 24/7 reliability. Designed for Infi 90 rack mounting (IP20), it operates in -20°C~+60°C industrial environments with conformal coating, and integrates with ABB System 800xA for centralized monitoring/diagnostics.
• Core Role: Infi 90 DCS network core; Infi‑Net data routing; controller‑to‑I/O/operator station communication; redundant network management
• Model Info: SPNPM22 (Infi 90 Network Processor Module); Bailey Infi 90/Net 90 compatibility; 32‑bit processing; Infi‑Net V1/V2 support
• Key Specs: 24V DC redundant power; Infi‑Net dual‑port (A/B rings); 128MB SDRAM;<5ms data routing latency; -20°C~+60°C operation
• Reliability: Redundant power/Infi‑Net; fault‑tolerant routing; conformal coating; IP20; IEC 61010‑1 safety compliance
2. Technical Specifications
| Parameter | Specification |
|---|
| Processor | 32‑bit Embedded RISC; 200 MHz clock speed |
| Memory | 128MB SDRAM (data buffering); 2MB Flash (firmware) |
| Power Supply | 24V DC redundant input (20‑30V DC); 10W max power |
| Communication | 2×Infi‑Net ports (A/B rings, 10Mbps); 1×RS‑232 (service); 1×Infi 90 rack backplane interface |
| Performance | Max 10,000 I/O points;<5ms routing latency; <5ms Infi‑Net failover; 1kHz data refresh rate |
| Environment | -20°C~+60°C; 5‑95% non‑condensing humidity; IEC 60068‑2‑6 vibration resistance |
| Mounting & Protection | Infi 90 rack mount (3U); IP20; conformal coating (optional); hot‑swap compatible |
2. Infi‑Net Redundancy & Data Routing
The SPNPM22 supports redundant Infi‑Net A/B rings (ABB’s dual‑ring backbone), ensuring zero data loss if one ring fails. It auto‑detects ring breaks and switches to the standby ring in<5ms, maintaining real‑time control. The module routes data between Infi 90 controller racks, remote I/O (e.g., IMASO02), operator stations (OMRON), and engineering workstations via Infi‑Net V1/V2 protocols. It handles up to 10,000 I/O points, 1,000 alarms, and 500 control commands simultaneously, with priority‑based routing for critical safety signals (e.g., ESD shutdowns). Front‑panel DIP switches set Infi‑Net address (1‑254), ring priority, and baud rate (10Mbps fixed), while status LEDs (Power: green; Infi‑Net A: amber; Infi‑Net B: blue; Fault: red) enable on‑site monitoring.
• Infi‑Net Support: Dual‑port A/B rings;<5ms failover; Infi‑Net V1/V2 compatibility; 10Mbps fixed baud rate
• Data Capacity: 10,000 I/O points; 1,000 alarms; 500 control commands; priority routing for safety signals
• Routing Logic: Controller‑to‑I/O/operator station data flow; fault‑tolerant packet switching; buffer overflow protection
•Configuration: DIP switch for Infi‑Net address/ring priority; ABB Infi 90 Engineering Tool for routing tables/IP setuP
3. Infi 90 DCS Integration & Configuration
The SPNPM22 is plug‑and‑play with Infi 90 DCS, mounting on Infi 90 rack backplanes with plug‑in terminal blocks for power and Infi‑Net wiring. It integrates seamlessly with Infi 90 controllers (IMMFP12, IMMFP14), remote I/O (IMASO02, IMASI03), and operator stations via Infi‑Net. Configuration uses two methods: ABB Infi 90 Engineering Tool (Windows‑based) for advanced setup (routing tables, redundancy, fault logging, firmware updates) and front‑panel DIP switches for basic Infi‑Net address/ring priority. The module features a fault relay output (NO/NC, 2A/24V DC) to trigger remote alarms, and integrates with ABB System 800xA for centralized diagnostics (data throughput, ring status, fault codes).
• Compatibility: Infi 90 controller racks; remote I/O modules; operator stations; System 800xA; Infi‑Net V1/V2
• Mounting: Infi 90 3U rack; plug‑in terminal blocks; IP20 cabinet installation; no custom cabling
• Configuration: Engineering Tool (routing/firmware); DIP switches (address/priority); config backup/restore; fault logging
• Monitoring: Status LEDs; fault relay; System 800xA diagnostics; real‑time Infi‑Net ring health checks
4. Safety, Compliance & Target Applications
The SPNPM22 complies with IEC 61010‑1 (safety), IEC 61000‑4 (EMC), CE, and UL standards, with redundant power/Infi‑Net for functional safety. It is ideal for Infi 90 DCS in power generation (thermal/hydro), oil & gas, petrochemical, and water/wastewater treatment—where fault‑tolerant network communication is critical. It supports Infi 90 DCS retrofits, enabling integration with modern ABB System 800xA while preserving existing controller/IO infrastructure.
• Certifications: CE, UL, IEC 61010‑1, IEC 61000‑4 EMC, RoHS
• Environmental Resilience: -20°C~+60°C; vibration/shock resistant; optional conformal coating for harsh areas
• Key Applications: Power generation; oil & gas; petrochemical; water/wastewater; Infi 90 DCS upgrades/retrofits
• Warranty: 12‑month ABB factory warranty; global ABB technical support; authorized service for calibration/repair
5. Installation, Maintenance & Troubleshooting
Installation: Infi 90 rack mounting; redundant 24V DC power (polarity check); Infi‑Net A/B ring wiring; DIP switch address setup; LED status verification (Power=green, Infi‑Net A=amber, Infi‑Net B=blue).
Configuration: Engineering Tool for routing tables/firmware; backup config files; integrate with System 800xA for centralized control.
Maintenance: 6‑month visual inspection (terminals, LEDs); 12‑month Infi‑Net port testing; fault diagnosis via LEDs/Engineering Tool; no moving parts (zero mechanical maintenance).
Troubleshooting: Red fault LED = power/Infi‑Net/overtemperature; check power first; verify Infi‑Net cable continuity; use Engineering Tool for fault codes/data logs.
Replacement: Hot‑swap compatible with Infi 90 redundant racks; plug‑and‑play with pre‑saved config for minimal downtime.
