Brief Product Description

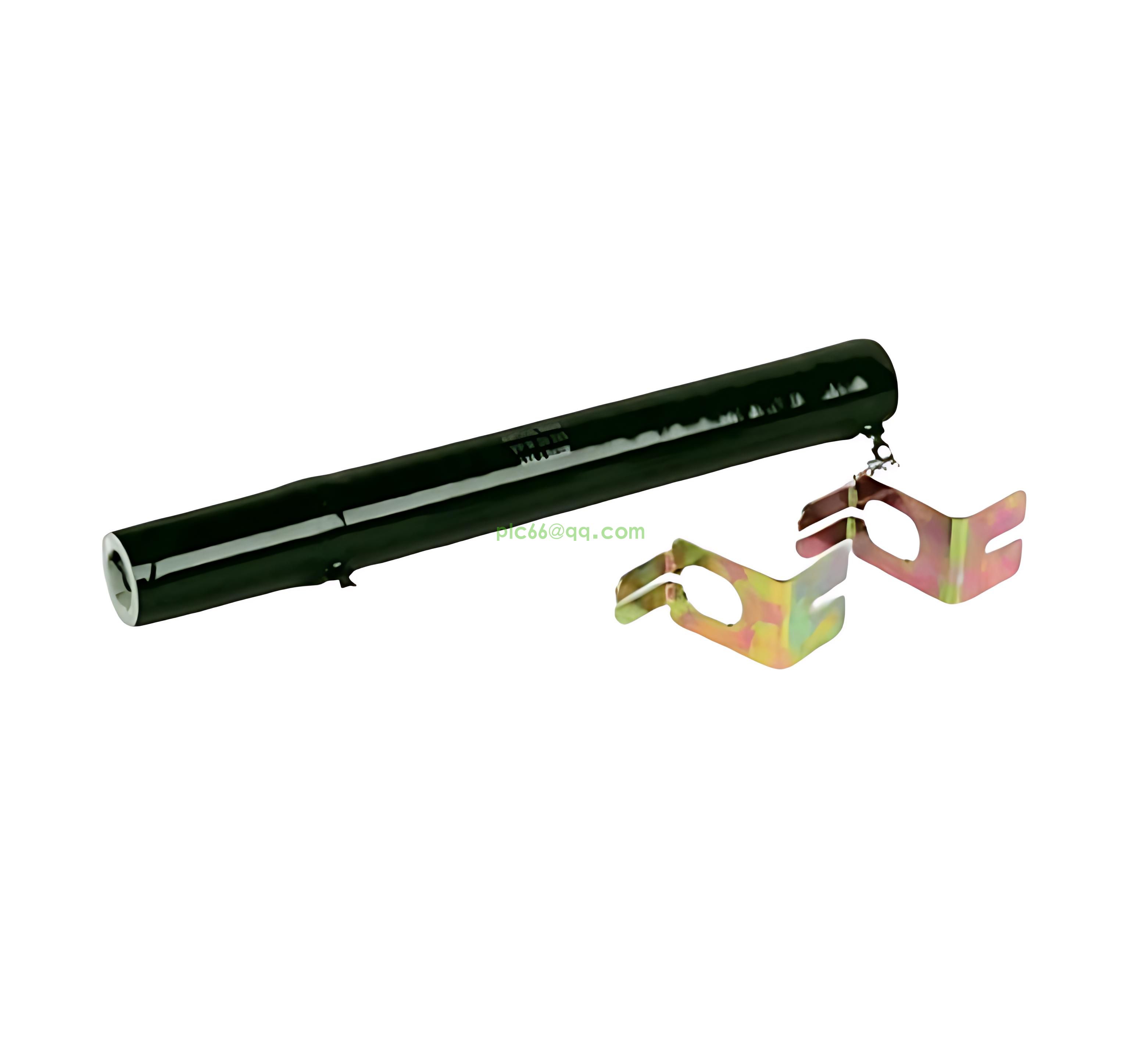

3BHL000406P0103 belongs to ABB VFW 30/265 series, a wire‑wound high‑power industrial resistor with nominal parameters of 40 kΩ and 250 W power rating. Specially designed for medium‑voltage drive and power‑electronic systems, it undertakes DC‑bus discharge, pre‑charge and energy‑dissipation tasks. Featuring low temperature coefficient, high insulation strength and robust housing construction, it can withstand continuous thermal stress in converter cabinets. Widely deployed in ABB medium‑voltage variable‑frequency drives, this passive component serves as critical spare replacement part for on‑site equipment maintenance and retrofitting projects.

Product ID: 3BHL000406P0103

ABB model name: VFW 30/265 40KOHM/250W

Catalog description: VFW 30/265 40KOHM/250W; RESISTOR

Detailed description: VFW 30/265 40KOHM/250W

Replacement product ID (OLD): HL000406P0103

Net height of the product: 48 mm

Net weight of the product: 0.51 kg

Net width of the product: 32 mm

Net depth of the product: 265 mm

Core Product Functions

• DC‑bus discharge function, safely release residual stored energy inside medium‑voltage converter DC‑link capacitors
• Pre‑charge current limiting to suppress inrush current during system power‑on and protect power semiconductor devices
• Energy dissipation for transient over‑voltage suppression inside power‑electronic units
• Low temperature coefficient minimizes resistance drift under long‑time heating conditions
• High‑grade insulation structure satisfies isolation requirements of medium‑voltage power cabinets
• Metal housing with optimized heat‑dissipation structure for stable performance under continuous load
• Absorb transient energy spikes to reduce impact to IGBT and rectifier power components
• Standard cabinet mounting structure for installation inside ABB medium‑voltage drive cubicles
• Resist harsh cabinet environment including temperature fluctuation, dust and vibration in industrial sites

Application Scenarios

• ABB medium‑voltage variable‑speed drive systems for industrial large‑motor control
• Power‑plant auxiliary medium‑voltage converter and power‑electronic cabinet assemblies
• Oil & gas and petrochemical plant heavy‑duty medium‑voltage frequency conversion equipment
• Metallurgy and mining industry high‑power drive and energy‑feedback converter units
• Renewable energy power conversion systems requiring DC‑link pre‑charge and discharge protection
• Spare replacement power resistor for maintenance and upgrade of existing ABB medium‑voltage drive installations

FAQ (Frequently Asked Questions)

• Q: Drive reports pre‑charge failure or DC‑bus fault alarm?
  A: Check resistor open‑circuit burnout, terminal loosening, insulation degradation or damage caused by over‑temperature.
• Q: Resistor over‑heats during normal equipment operation?
  A: Verify actual working duty cycle, cabinet ventilation condition, mechanical installation clearance and parameter matching of the system.
• Q: Can 3BHL000406P0103 be replaced while converter cabinet remains energized?
  A: Strictly forbidden. Fully power off the whole system and make sure DC‑bus capacitors are completely discharged before replacement for personal safety.
• Q: Can this resistor be substituted with ordinary general‑purpose resistors?
  A: Not recommended. Special requirements on power rating, resistance value, insulation voltage and temperature coefficient must be satisfied for medium‑voltage converter application.

• Q: Is 3BHL000406P0103 available for brand‑new medium‑voltage drive projects?
  A: This legacy power resistor reaches end‑of‑life. Only surplus and fully‑tested spare units are supplied for existing‑site maintenance work.
