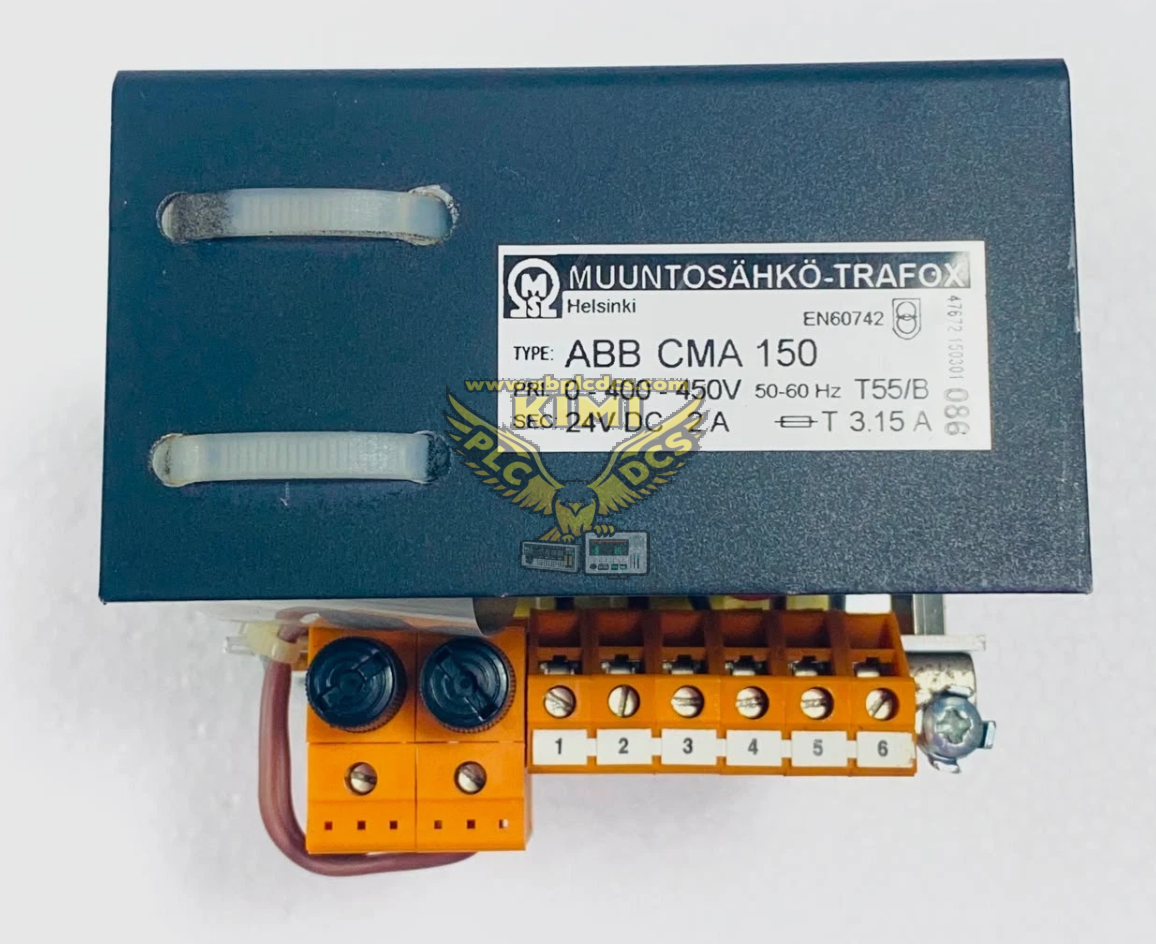

ABB CMA150 (3DDE300410) SYNPOL D Analog Input Board

Product Description

The ABB CMA150 (3DDE300410) is an analog signal acquisition board for the ABB SYNPOL D generator protection and control system. It collects AC voltage, AC current and other analog measurement signals from generator instrument transformers, converts them into digital data for the main control board CMA127 to calculate electrical parameters and execute protection logic. It works with CMA127, CMA123 and other modules to complete generator monitoring and protection functions.

Features

• Dedicated analog input acquisition board for SYNPOL D generator protection system, part number 3DDE300410
• Supports multi-channel AC current and voltage signal sampling from CT/PT secondary side
• High-precision AD conversion, transmits sampled electrical data to CMA127 main CPU via internal bus
• Built-in signal conditioning, filtering and over-range protection circuit for transformer signals
• On-board self-diagnosis, detects signal loss, overload and board hardware faults
• LED indicators for power supply, running status and signal fault alarm
• Standard rack slot installation, compatible with SYNPOL D backplane and module series
• Strong anti-interference performance, designed for power plant generator protection cabinet environment

Application Scenarios

• Thermal power and hydropower plant generator SYNPOL D protection cabinets
• Sampling of generator voltage, current, power and frequency measurement signals
• Provide raw measurement data for differential protection, overcurrent, overvoltage and other protection functions
• Cooperate with CMA127 to realize fault judgment, trip and alarm of generator sets
• Power plant generator protection system maintenance, spare parts replacement and retrofit

FAQ

Q: Which system does CMA150 belong to?
A: It is an analog input sampling board for ABB SYNPOL D generator protection system.

Q: What is the matching module?
A: It cooperates with CMA127 main control board for data processing and protection calculation.

Q: What is the full part number?
A: CMA150 / 3DDE300410.

Q: Is this board discontinued?
A: SYNPOL D is legacy generator protection equipment; CMA150 is mainly supplied as surplus and fully tested refurbished spare parts.
