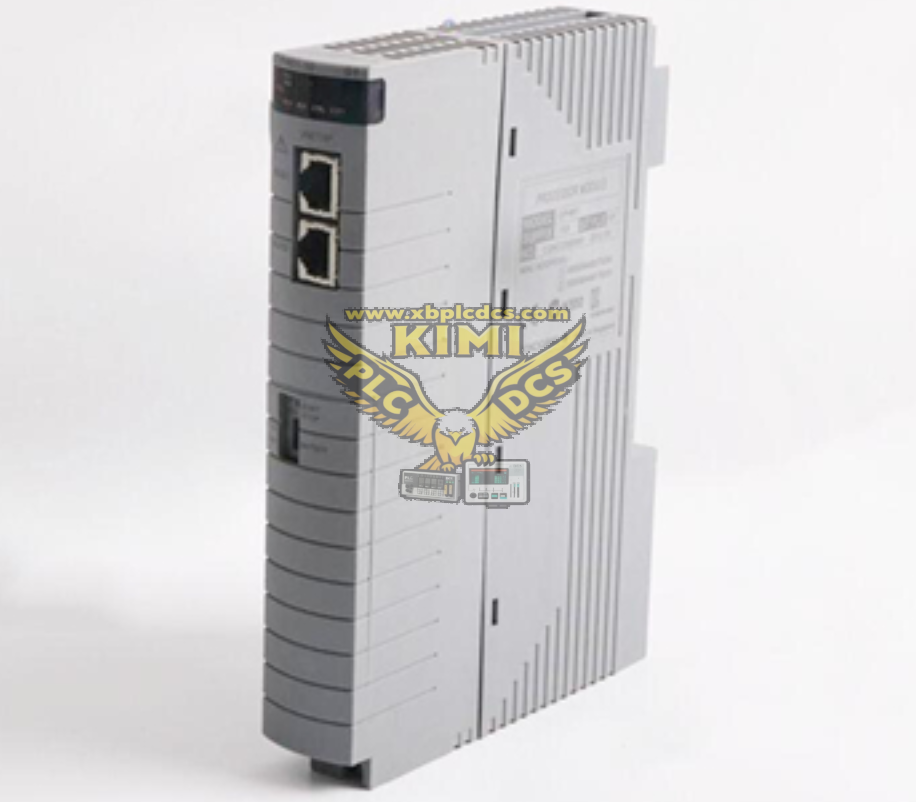

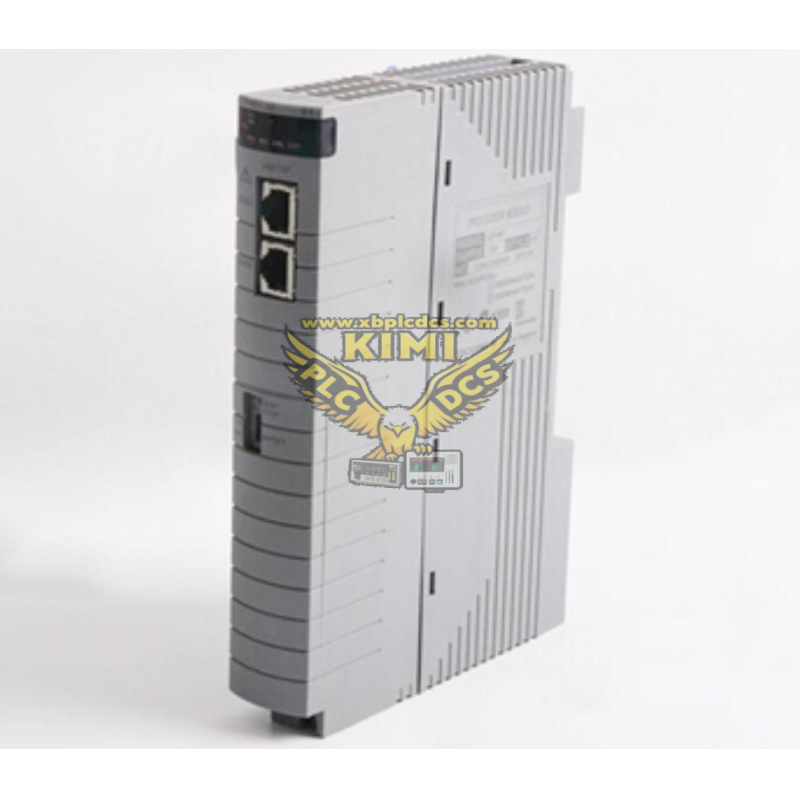

Yokogawa CP471-01 Processor Module for CENTUM VP DCS

1. Product Description

CP471-01 is an explosion-proof CPU processor module developed by Yokogawa for the CENTUM VP Distributed Control System, designed for AFV30, AFV40, A2FV50 and A2FV70 series Field Control Stations (FCS). The suffix "-01" stands for the Class I Div.2 explosion-proof variant, differentiated from the standard non-explosion-proof CP471-00 model. It serves as the core arithmetic unit of the FCS, executing continuous process control, sequence logic, safety interlock and alarm management. The module supports dual redundant hot standby configuration and hot-swap maintenance without shutting down the entire control station. The PCB is coated with conformal coating to resist dust, humidity and corrosive gas. It operates on 24VDC power supply and complies with FM intrinsic safety, CE and industrial EMC standards, supporting CENTUM VP R6.05 and later system firmware with EC401 S3 or higher ESB bus coupler matching.

2. Core Product Functions

• High-speed real-time control operation: PID loop regulation, batch sequential control, equipment safety interlock and dynamic process compensation calculation
• Dual redundant Ethernet communication: two independent RJ45 ports for connection to HMI operator stations, OPC servers and third-party control systems; single network disconnection will not interrupt overall communication
• ESB backplane bus master management: uniformly collect field signals from AI/AO/DI/DO and communication modules, and transmit control output instructions to each I/O card periodically
• Comprehensive full-range self-diagnosis: real-time monitoring of CPU core, memory, backplane bus, Ethernet ports and power supply; all fault codes are uploaded to the upper system with SOE event timestamp records
• Intrinsic safety explosion-proof design exclusive to CP471-01: built-in isolation, current-limiting and power-limiting circuits, allowing installation in Class I Div.2 hazardous process areas
• Local process data caching: store historical trend curves, alarm records and critical process parameters; key data can be retained after power failure
• Hot-swap support for redundant racks: faulty CPU can be replaced online without stopping the FCS operation to maximize production uptime

3. Application Scenarios

• Petrochemical refinery, LNG and chemical plant DCS control stations for explosion-risk process sections
• Onshore oil & gas gathering stations and offshore platform process control systems
• Thermal power and combined cycle power plant boiler and turbine side FCS control cabinets
• Fine chemical, pharmaceutical and papermaking hazardous workshop process monitoring
• Industrial wastewater treatment plants with flammable chemical dosing units

4. Common Troubleshooting & Typical Issues

• Frequent Redundant CPU Switchover

  Causes: Inconsistent control program versions between two CP471 modules, poor contact of ESB backplane golden fingers, unstable 24VDC power supply voltage fluctuation. Solutions: Synchronize control logic programs of dual CPUs, clean backplane contacts with anti-static cloth, inspect and stabilize rack power supply.

• Intermittent Ethernet Communication Disconnection

  Causes: Damaged shielded industrial Ethernet cables, faulty switch ports, internal hardware damage of CPU network ports. Solutions: Replace double-shielded twisted-pair cables, switch to standby switch port, replace the faulty CP471-01 module if hardware failure occurs.

• Module FAIL Indicator Steady Red

  Causes: Mismatched system firmware version, outdated EC401 ESB bus coupler version, internal CPU hardware breakdown. Solutions: Upgrade CENTUM VP firmware to R6.05 or above, replace with S3 version EC401 coupler, substitute the damaged processor module.

• Intrinsic Safety Fault Alarm in Explosion-proof Zones

  Causes: Missing matched safety barriers for field I/O loops, short-circuit of field instrument wiring. Solutions: Check explosion-proof terminal wiring layout, install certified intrinsic safety barriers, troubleshoot short-circuited sensor cables.
