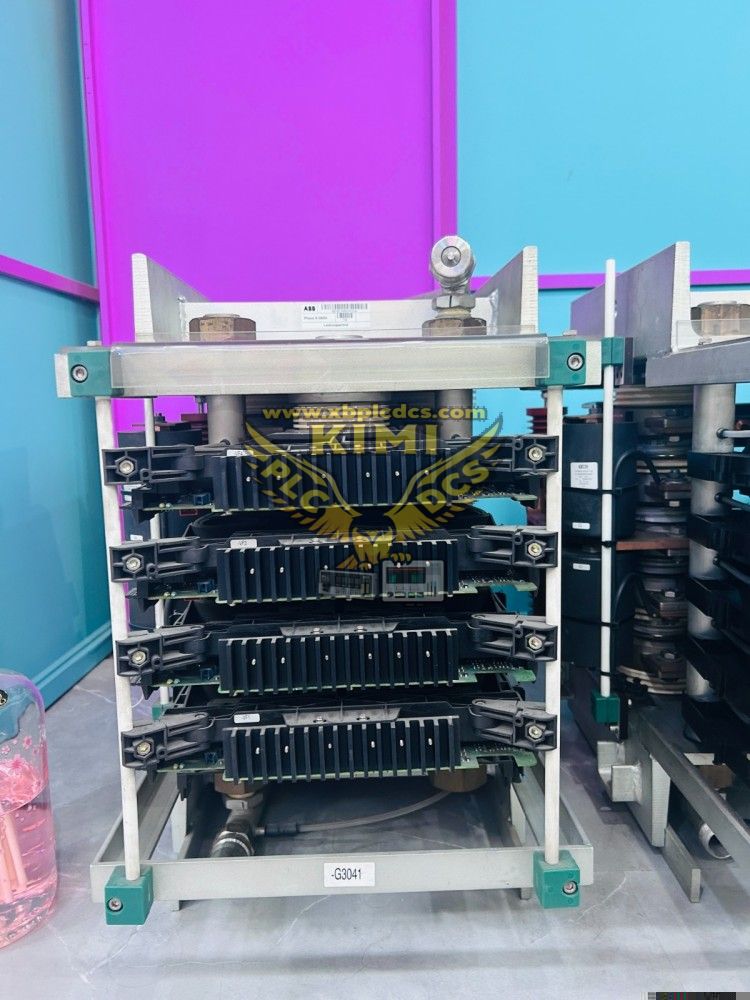

ABB ACS6000 Series Medium-Voltage Drive Phase Module - 3BHB009884R0014

3BHB009884R0014 is an S-073M model phase module of the ABB ACS6000 series medium-voltage drive system, adapted for 7 MV voltage scenarios. It is a core component ensuring the series drive system achieves high-power electrical energy conversion and precise motor control. Integrating high-quality power components suitable for medium and high-voltage operating conditions, it relies on the Direct Torque Control technology supported by the ACS6000 series and a flexible pulse configuration design. It can efficiently complete the phase conversion and stable output of AC-DC electrical energy, providing adaptive power supply phases for various high-power motors such as asynchronous motors and synchronous motors, thereby realizing precise regulation of motor speed and torque. The module meets the high-power output requirements of the ACS6000 series (3000 - 36000kW) and is suitable for drive scenarios of large heavy-duty equipment such as crushers and rolling mills in industries like metallurgy and mining. Its modular structure not only facilitates on-site installation and later maintenance/replacement but also reduces system failure risks through stable operating characteristics. Meanwhile, it complies with the strict requirements of relevant industrial electrical standards for medium and high-voltage drive components in terms of harmonic control and power factor, helping the entire drive system achieve high operating efficiency and reliability.
