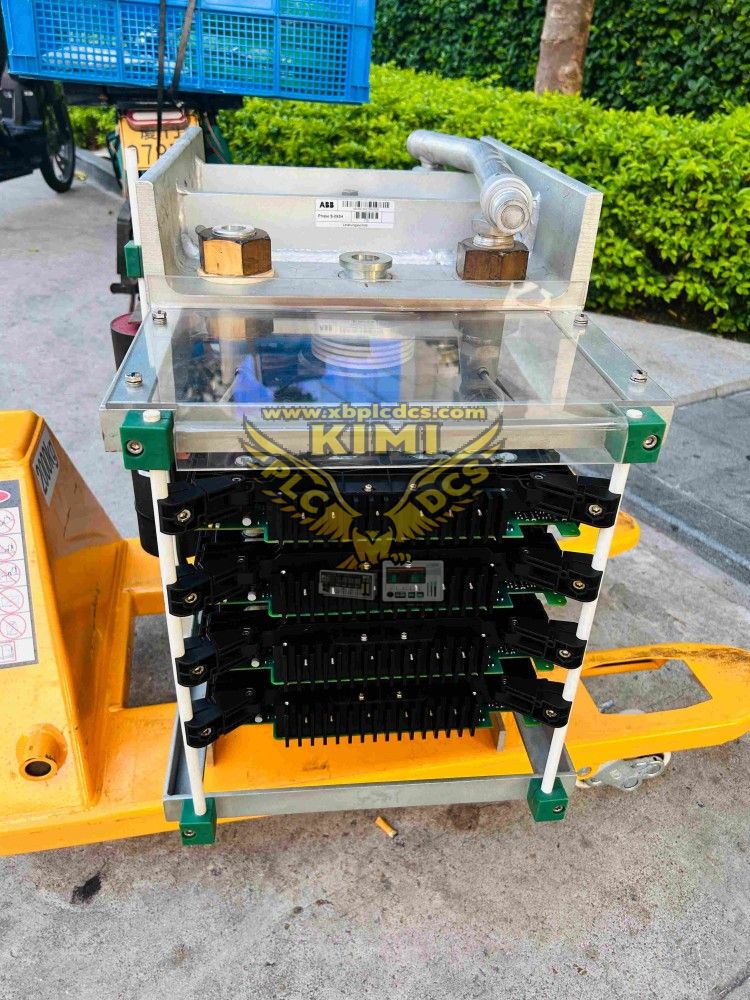

ABB ACS6000 Series Medium-Voltage Drive Phase Module - 3BHB030478R0309
3BHB030478R0309 is an S-093H model phase module of the ABB ACS6000 series medium-voltage drive system. As a core modular component enabling the system to achieve power conversion and precise motor control, it integrates high-quality power elements such as Gate Commutated Thyristors (IGCT). Relying on Direct Torque Control (DTC) technology, it can real-time and accurately detect and adjust voltage and current phases, efficiently completing AC-DC power conversion. It provides stable and adaptive power supply phases for induction motors, synchronous motors, and other types of motors, thereby ensuring precise regulation of motor speed and torque. The module adopts a robust and durable design, capable of adapting to a wide temperature industrial environment of -20℃~+60℃. It meets the high-power output requirements of the ACS6000 series (3000–36000kW) and is widely used in large and heavy-duty equipment drive scenarios in industries such as metallurgy, mining, and chemical engineering. Its compact modular structure facilitates installation, maintenance, and replacement, while complying with industrial electrical standards such as IEC 61000-2-4. It ensures high reliability and low-loss operation, and helps the entire drive system achieve energy optimization and efficient stable operation.
Replacement Notice
This product (3BHB030478R0309) replaces the old product IDs: 3BHB030478R0009 and 3BHB030478R0209
Technical Alert: Dual-use item (ECN 3A001g2). Subject to international export control.
| Specification Item | Details |
|---|---|
| Product ID | 3BHB030478R0309 |
| ABB Model Name | S-093H G2.03 |
| Catalog Description | S-093H G2.03; PHASE MODULE |
| Detailed Description | S-093H G2.03 |
| CN8 | 85049099 |
| Country of Origin | United States, Switzerland, Poland |
| Customs Tariff Number | 85049090 |
| Overall Dimensions | Spare_Parts |
| Gross Weight | 150 kg |
| Invoice Description | PHASE MODULE |
| Made to Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiples | 1 piece |
| Level 1 Packaging Length | 0 mm |
| Level 1 Packaging Total Weight | 150 kg |
| Level 1 Packaging Height | 0 mm |
| Level 1 Packaging Unit | 1 piece |
| Level 1 Packaging Width | 0 mm |
| Component Type | New |
| Product | PHASE MODULE |
| Product Net Depth | 0 mm |
| Product Net Height | 0 mm |
| Product Net Weight | 150 kg |
| Product Net Width | 0 mm |
| Product Application Type | Spare_Parts |
| Quote Only | No |
