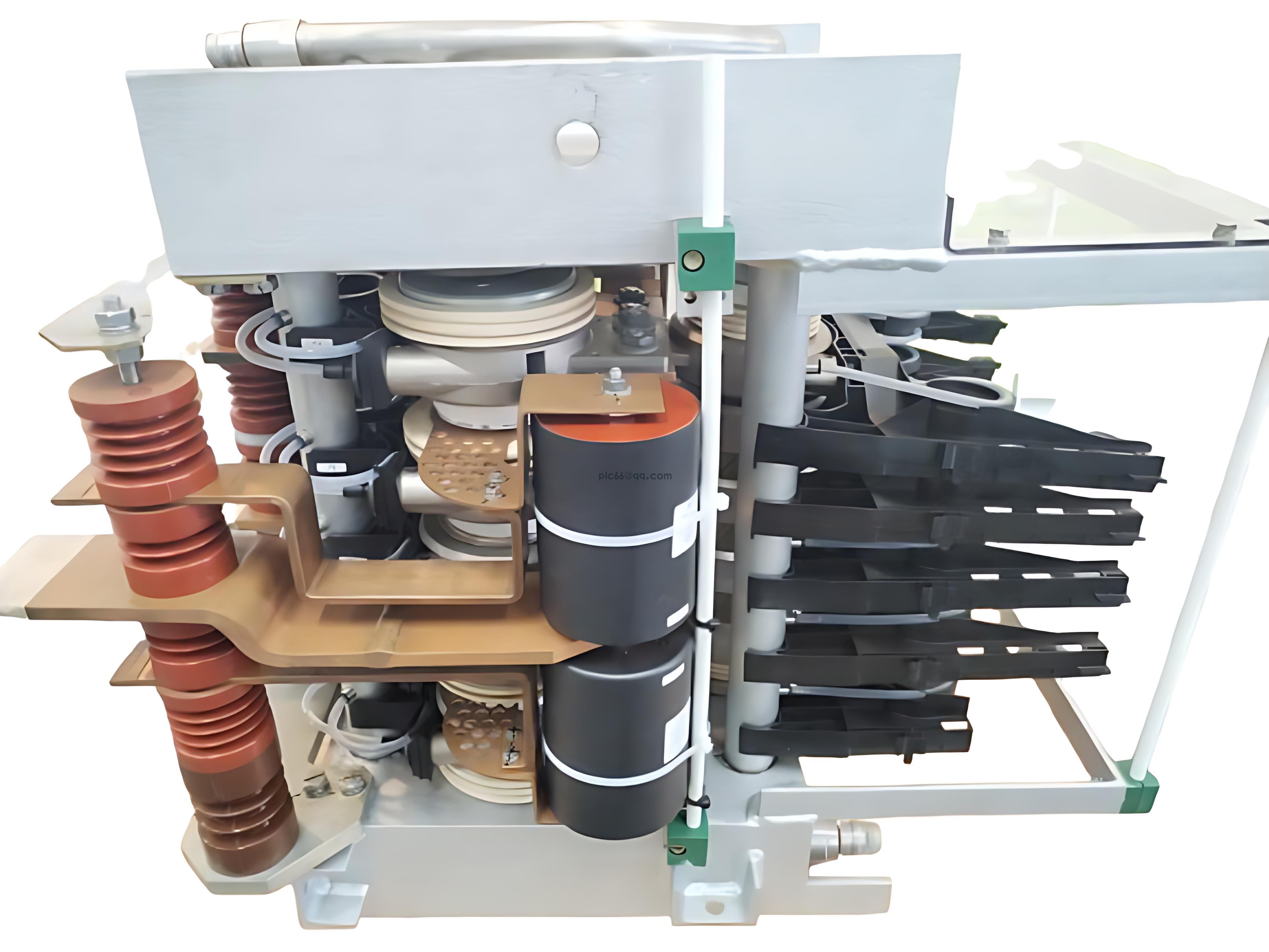

S-073R  3BHB009884R5211  Phase module IGCT

The ABB S-073R 3BHB009884R5211 (also often written as S-073N 3BHB009884R5211) is a key high-voltage inverter phase module,

which is a core component in the ABB ACS2000 series and similar high-power drive systems (such as ACS 6000). In fact, the functionality of the S-073 series products is the same.

The letters at the back are different; it's just a matter of the manufacturer's version in each period

Product clear height: Confirm with customer service

Net weight of the product :162 kg

Product net width: Confirm with customer service

Product net depth: Confirm with customer service

Technical Information :Dual-use item (ECN 3A001g2).

Subject to international export control.

Other information

Product :PHASE MODULE

Before purchasing YMGK, it is necessary to understand its main functions and features

Core function: The primary function of this module is to control the speed and operation of large motors in the industrial and power sectors. It generates output signals of different phases by allocating the phases of the input signals, which is crucial for controlling high-voltage AC motors.

IGCT technology: It adopts the advanced IGCT (Integrated Gate Converter Thyristor) technology. IGCT technology combines the advantages of GTO (Gate Off Thyristor) and IGBT (Insulated Gate Bipolar Transistor), endowing it with the following characteristics:

High blocking voltage and high power capacity: Suitable for high-power applications.

Fast switching speed: Crucial for precise motor control and high-frequency operation.

Low on-state loss: Reduce energy consumption and improve efficiency (typically up to over 99.6% in frequency converters).

Snubberless Turn-off: It simplifies the circuit design and eliminates the need for bulky absorption circuits, thereby reducing the complexity of the system.

Integrated gate unit: It simplifies installation and control. Users usually only need to connect power and optical fiber cables for control.

Modular design: The S-073R is part of a modular system, designed to integrate with other components (such as the S-076N IGCT frame) to build a complete high-voltage frequency converter system.

Mechanical structure: It is usually a closed box, containing an IEGT (Integrated Gate Bipolar Transistor) unit, a diode unit, a manifold, an insulating partition, and typically comes with a water-cooled quick connector for thermal management.

Internal structure: The internal structure of this module is complex and may include buffer absorption circuits, composed of inductors, resistors, diodes, capacitors, etc., to ensure the stability of current and voltage.
