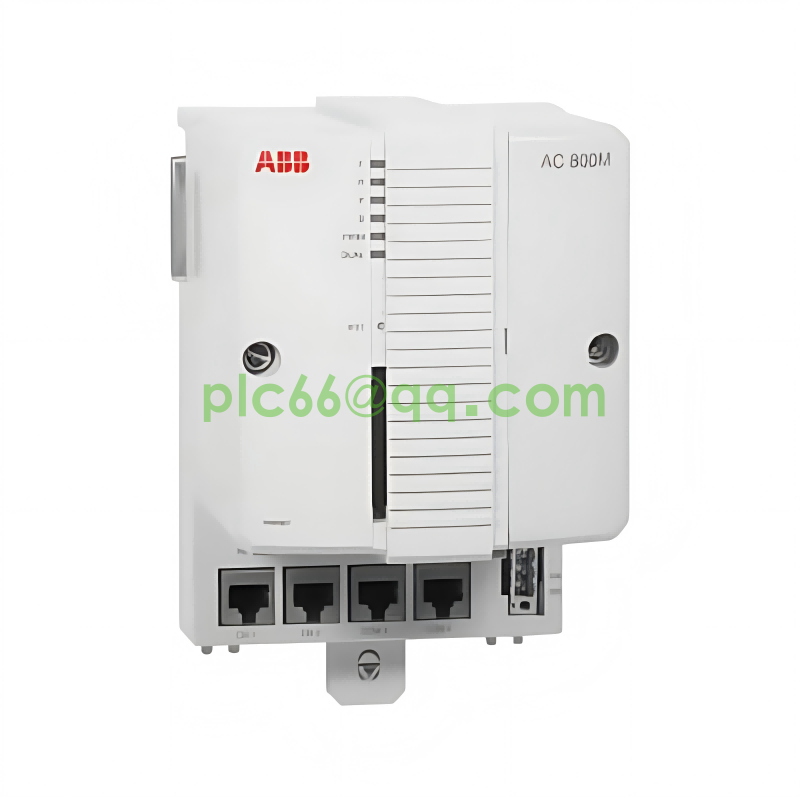

PM867K01 3BSE076355R1  processor unit

The ABB PM867K01 3BSE076355R1 is a high-performance processor unit belonging to the AC 800M controller series.

The processor adopts a 133MHz clock frequency and is equipped with 64MB of RAM, of which approximately 46.559MB can be used for applications, enabling efficient processing of control algorithms.

The processor unit supports CPU redundancy, which can ensure continuous system operation and improve system availability.

The processor unit features high integrity and has passed SIL3 certification, making it suitable for critical application scenarios with extremely high requirements for security and reliability.

It has 2 redundant Ethernet ports and 2 serial ports. One of the serial ports is equipped with a modem control signal, and the other is isolated for connecting configuration tools, facilitating communication and integration with other devices or systems.

It is equipped with an inbuilt diagnostic function to monitor the system's operational status. It also adopts a modular design, allowing for easy expansion and configuration to meet specific application requirements.

The package includes

PM867, CPU

-TP830, base plate

-TB850, CEX bus terminal

-TB807, ModuleBus terminal

-TB852, RCU-Link terminal

- Battery for memory backup (4943013-6)

- No license included.

Only compatible with 800xA 6.0.2 and later versions.

Product net depth: 135mm

Product clear height: 186mm

Product net width: 119mm

Net weight of the product: 0.8kg

General info

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

The base plate of the PM867 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network,

and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals,

whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

The high integrity functionality is enabled by the addition of an SM812 module and the SIL-certified software.

The AC 800M High-Integrity also offers IEC 61508 and TÜV-certified control environment for combining safety and business-critical process control in one controller unit without sacrificing the safety integrity.

Features and benefits

•  ISA Secure certified - Read more
•  AC 800M High up to SIL 3 certified using PM865/SM811 or PM867/SM812
•  Supports S800 I/O High Integrity (PM865, PM866A, PM867 and PM891)
•  The controller can be configured with 800xA control builder
•  The controller has full EMC certification
•  TÜV Certified SIL 2 and SIL 3
•  Built-in redundant Ethernet Communication ports
