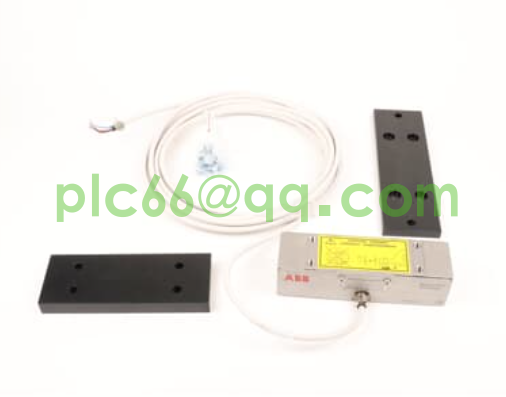

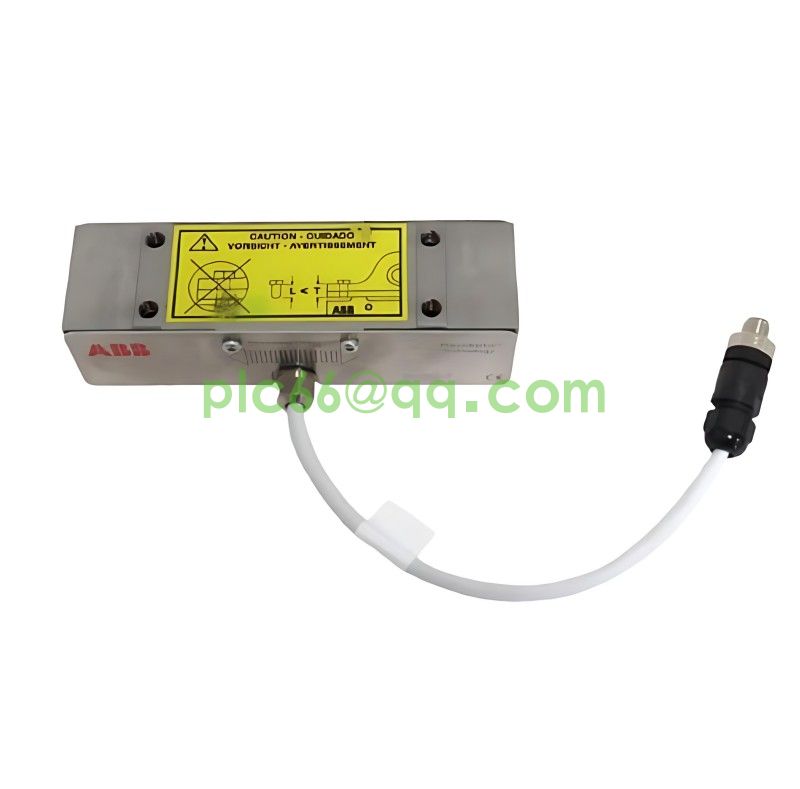

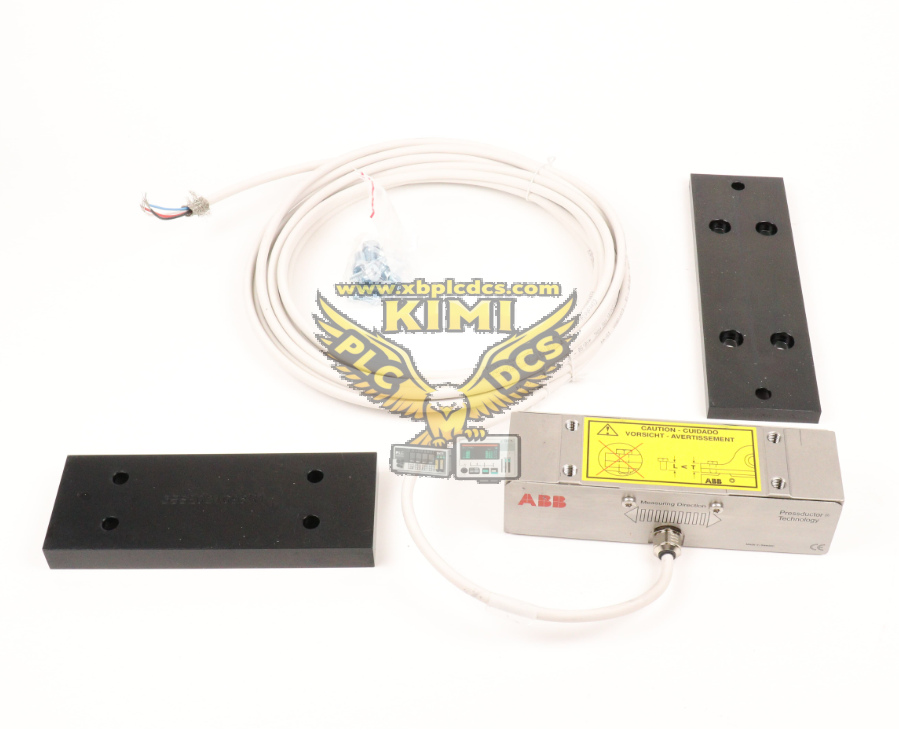

PFTL301E-0.1kN 3BSE019050R100 Load cell
The PFTL301E-1.0kN 3BSE019050R1000 is a load cell from the Pressductor PillowBlock series.
This sensor is specifically designed for measuring horizontal tension in coil processing, such as on paper, textile and plastic film production lines.
Its uniqueness lies in the fact that, unlike traditional sensors that simultaneously measure the weight and tension of rolls, the PFTL301E only senses the horizontal component of the roll tension.
This means that it can be precisely selected based on actual tension requirements, ensuring outstanding tension measurement performance even when heavy-duty rollers and mild tension coexist. Its rated load is 1.0 kN (approximately 225 pounds).
The load cell adopts ABB's unique Pressductor® magnetoelastic technology. This technology generates signals by sensing changes in the magnetic field rather than relying on physical deformation,
thus featuring extremely high precision and sensitivity. It also features an outstanding overload capacity and an almost unlimited load cycle life, effectively avoiding the drift problem of traditional sensors and significantly reducing calibration requirements.
The low-impedance AC signal generated by PFTL301E makes it highly resistant to electrical interference and ground faults, ensuring the stability and reliability of the signal. With its robust and durable design,
the PFTL301E can operate stably for a long time in harsh industrial environments and is an ideal choice for tension measurement that requires high precision and high reliability.
Product Number: 3BSE019050R100
ABB model name: PFTL301E-0.1kN
Catalogue Description: PFTL 301E 0.1kN, load cell
Net weight of the product: 5.25kg
Technical information
PFTL 301E- 0.1kN, with 8 m cable (horizontal)
Top and bottom adapter plate included.
Unlike indenters that measure vertical components, they do not measure the weight of tension rollers. Therefore,
the specifications of these pressure heads can be determined solely based on the magnitude of the tension and the functions corresponding to the upper limit of their measurement range (at which point the performance of the pressure head is the best).
The result is that the indenter always provides the best tension measurement performance, even when the roller is heavy and the tension is small.
A high-quality indenter with no drift and no need for recalibration
- Wide measurement range
- Simple and easy to use
数据
Properties | PFTL301E | ||||
Nominal load | |||||
(rated capacity) | kN | 0.1 | 0.2 | 0.5 | 1.0 |
Lbs. | 22 | 45 | 112 | 225 | |
Extended load | kN | 0.15 | 0.3 | 0.75 | 1.5 |
Lbs. | 33 | 67 | 169 | 337 | |
Permitted load | |||||
Transverse direction | kN | 0.3 | 0.6 | 1.5 | 3.0 |
(vertical) h=135 mm | Lbs. | 67 | 135 | 337 | 674 |
Overload capacity | |||||
Measurement direction | kN | 0.3 | 0.6 | 1.5 | 3.0 |
(horizontal) | Lbs. | 67 | 135 | 337 | 674 |
Transverse direction | kN | 0.5 | 1.0 | 2.5 | 5.0 |
(vertical) h=135 mm | Lbs. | 112 | 225 | 562 | 1125 |
Deflection | mm | 0.05 | 0.05 | 0.07 | 0.13 |
1/1000 in. | 2.0 | 2.0 | 2.8 | 5.0 | |
Spring constant | kN/mm | 2.0 | 4.0 | 7.0 | 8.0 |
1000 Lbs./inch | 11.3 | 22.4 | 39.7 | 44.6 |
Magnetomechanical technology
The pressure head of ABB's Millmate strip tension measurement system is based on the renowned Pressductor® magnetostrictive effect, which was patented in 1954.
According to this principle, the magnetic properties of steel are affected by mechanical forces.
There are four holes inside the sensor. Two mutually perpendicular coils are wound together through these holes. One coil is applied alternating current, and the other coil serves as the measuring coil.
Since the two coils are perpendicular to each other, there will be no magnetic coupling between them as long as there is no load on the sensor.
If there is a load on the sensor (as shown in the figure), the magnetic field characteristics will change. The magnetic permeability of steel will decrease in the direction of force application and increase in the vertical direction.
This causes a change in the symmetry of the magnetic flux, and part of the magnetic flux will induce an induced voltage in the secondary side coil. The induced voltage is proportional to the load.
ABB's unique magneto-compression ® technology makes the Mini series pillow pressors exceptionally sturdy, enabling them to withstand a wide range of working conditions
