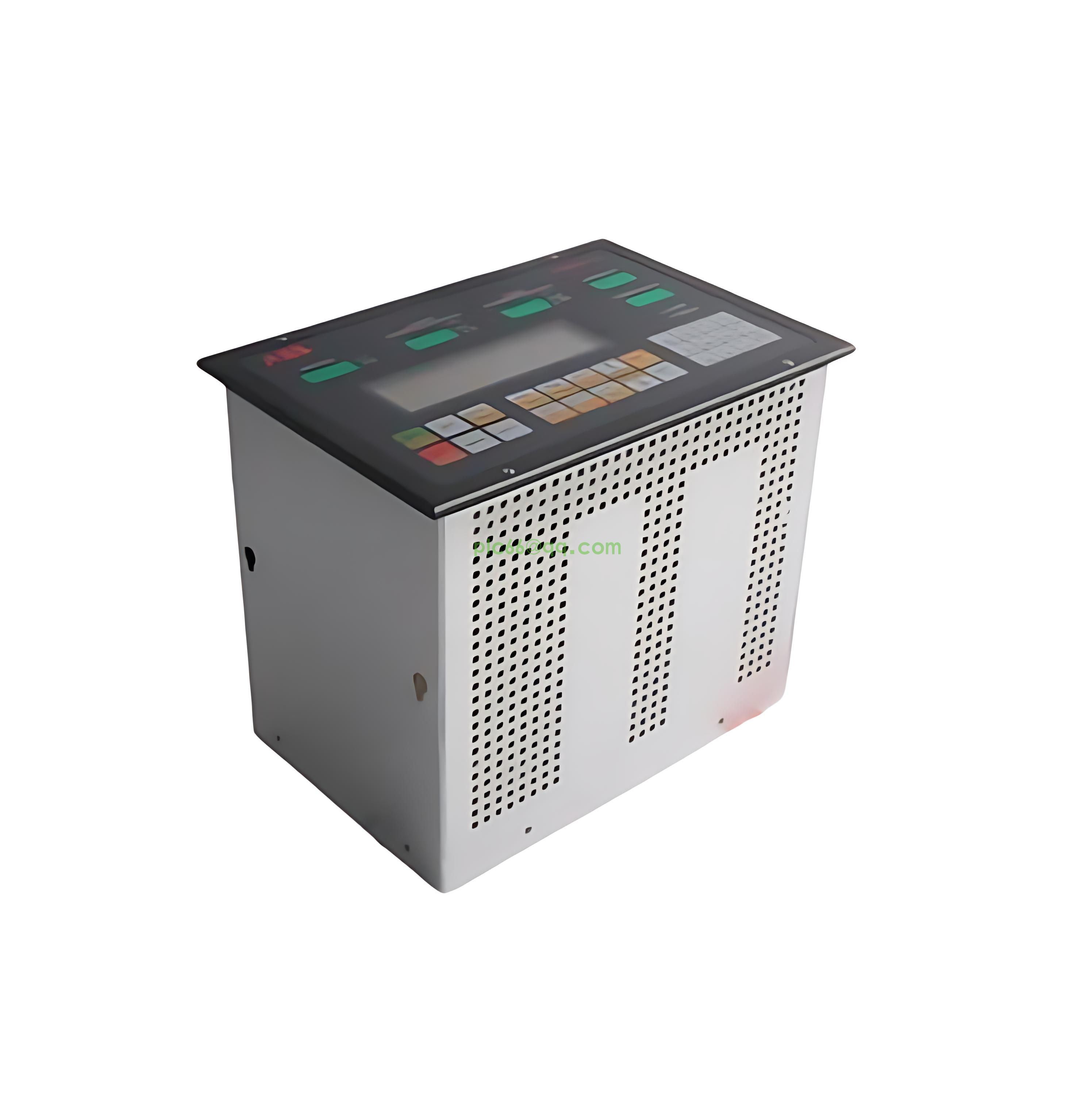

ABB CMA120 3DDE300400 Basic Controller Panel Unit

Product Description

The CMA120 (long ordering part number 3DDE300400) is a high-reliability industrial basic controller panel unit independently developed by ABB, belonging to the classic ABB industrial control system product line. As the core integrated control and man-machine interaction component specially designed for industrial automation and process control scenarios that have extremely strict requirements for control stability and continuous operation reliability, it is widely deployed in heavy-duty industrial scenarios such as power generation excitation systems, petrochemical process control, manufacturing automation production lines and other safety-critical industrial fields. It is responsible for integrating the core control logic execution, on-site parameter display, manual operation intervention and fault state diagnosis functions, ensuring that the industrial control system can continuously and stably complete the process parameter regulation and equipment operation monitoring tasks during long-cycle uninterrupted production, providing the most fundamental high-reliability integrated control guarantee for the stable operation of large industrial automation systems.

Core Technical Specifications

• Manufacturer: ABB, original industrial control system grade production standard, product origin Switzerland
• Product Category: ABB dedicated basic controller panel unit, official part number CMA120, long ordering code 3DDE300400
• Physical Parameters: Standard industrial panel installation design, dimensions 220mm × 150mm × 100mm, net weight about 5.4kg, IP20 protection grade, fully compliant with industrial anti-vibration and strong electromagnetic interference standards in industrial sites
• Electrical Parameters: 24V DC industrial power supply, compatible with 110-240V AC wide voltage power supply mode, maximum power consumption 1200W, with built-in power supply overvoltage and reverse connection protection circuit
• Performance Parameters: Adopting high-performance industrial processor, with high-speed data processing capability, which can efficiently execute complex control algorithms and real-time control tasks, the minimum control loop response time can reach 2ms
• Signal Acquisition: 2-channel 4-20mA analog signal input, full-scale acquisition accuracy up to ±0.1%, which can accurately collect on-site process parameters such as temperature, pressure and flow
• Communication Capability: Natively supports Profibus DP, Modbus RTU and Ethernet industrial communication protocols, which can seamlessly realize data interconnection with ABB DCS/PLC systems, on-site sensors and upper monitoring platform
• Operating Environment: -20°C to +70°C industrial wide temperature working range, 5%-95% non-condensing relative humidity, mean time between failures (MTBF) as high as 250,000 hours

Key Product Functions

• Integrated Process Control Execution:

• The module integrates the core industrial control logic processing function, which can independently complete the closed-loop regulation of process parameters such as temperature, pressure and flow, and efficiently execute complex interlock logic operations, ensuring that the industrial production process parameters are always maintained within the optimal control range, effectively improving the production efficiency and product qualification rate.

• Intuitive On-Site Man-Machine Interaction: Equipped with user-friendly operation interface and intuitive status display function, maintenance personnel can directly view the real-time operation state of the equipment and process parameters on site, and complete manual operation intervention and parameter adjustment without relying on the upper computer monitoring system, which greatly improves the convenience of on-site operation and maintenance work.
• Full Fault Self-Diagnosis and Quick Locating: The module continuously performs real-time all-round health monitoring on the operation state, communication link state and signal acquisition state, automatically identifies abnormal states such as signal line open circuit, communication interruption, module hardware fault, and intuitively feeds back the fault information through the panel indicator, helping maintenance personnel quickly locate system hidden dangers and effectively shorten the system fault recovery time.
• Perfect ABB System Compatibility: The module fully matches the ABB industrial control system architecture, no additional protocol conversion equipment is required, no complex parameter adaptation work is needed after installation, and it can be directly used as spare parts for maintenance replacement of old ABB control systems that have been running for many years, effectively extending the service life of the old industrial automation system.
• Highly Reliable Harsh Environment Adaptability: The module adopts industrial-grade reinforced design, which can stably and reliably operate for a long time in harsh industrial site environments with strong electromagnetic interference, wide temperature change and high dust, and the operation reliability is far higher than that of ordinary general-purpose operation panels.

Typical Application Scenarios

• Power generation industry: Thermal power plant generator excitation system control panel, responsible for the core excitation regulation and on-site operation monitoring of the generator set.
• Petrochemical industry: Large refinery and chemical plant process control system, realizing stable and reliable on-site parameter monitoring and manual operation of the whole production line.
• Manufacturing industry: Automobile manufacturing factory automated production line control system, realizing high-stability operation control and on-site state monitoring of the production line equipment.
• Energy management industry: Industrial park energy management system, realizing efficient monitoring and optimized control of power consumption equipment.
• Industrial transformation and upgrading projects: Spare parts replacement and system maintenance of old ABB control systems that have been in operation for many years in various industrial sites.
