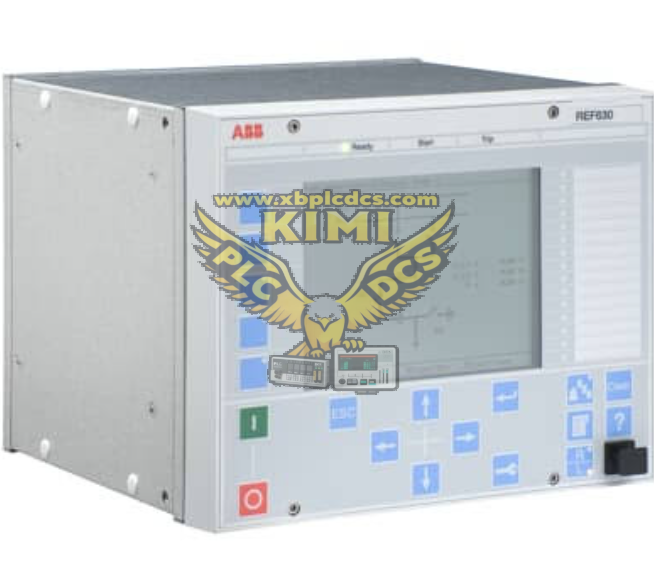

ABB REF630 VBFNBAADAAAZCNBBXD Relion Feeder Protection & Control IED

Product Description

REF630 VBFNBAADAAAZCNBBXD is a member of ABB Relion® 630 series, a multifunctional feeder protection and control intelligent electronic device (IED) for medium‑voltage distribution networks. This configured variant integrates protection elements, bay control, metering, fault recording and communication interfaces within one compact unit. It supports overhead and cable feeders, suitable for isolated, resistance‑earthed and Petersen‑coil compensated neutral systems. The ordering code VBFNBAADAAAZCNBBXD defines hardware housing, I/O configuration, power supply, communication options, HMI and firmware feature set. Installed in MV switchgear cubicles, it performs primary and backup protection, breaker control, condition supervision and data exchange with substation SCADA/DCS systems complying with IEC‑61850 standard.

Product Features

• Comprehensive feeder protection suite: phase overcurrent, earth‑fault, negative‑sequence overcurrent, thermal overload, voltage‑based protection, frequency and ROCOF protection for load‑shedding logic
• Admittance‑based sensitive earth‑fault protection optimized for compensated neutral networks, directional and non‑directional fault elements, multi‑shot auto‑reclose function
• Distance protection with configurable mho / quadrilateral characteristic zones for overhead‑line fault detection and fault‑location calculation
• Rich configurable digital inputs / relay outputs for breaker status acquisition, trip‑close control, interlock and alarm annunciation
• High‑accuracy metering for three‑phase current, voltage, power, energy and demand values; support optional RTD/mA analog input expansion module
• Fault oscillography, Sequence‑of‑Events (SOE) recording, fault‑report storage for post‑fault disturbance analysis
• Multi‑protocol communication: IEC 61850 including GOOSE messaging, Modbus TCP, DNP3 TCP/IP, IEC‑60870‑5‑103 serial for substation automation integration
• Local HMI panel with configurable push‑buttons, WebHMI and PCM600 engineering tool for parameter setting, monitoring and firmware upgrade
• Multiple mounting options: flush, semi‑flush and wall‑mount for switchgear cabinet installation
• Wide operating temperature range ‑40 °C ~ +70 °C, high EMC immunity fulfilling IEC‑61000 requirements for substation environment

Application Scenarios

• Medium‑voltage overhead‑line and cable feeder primary protection for utility distribution substations
• Industrial plant MV switchgear bay control and feeder protection for petrochemical, mining and power‑plant auxiliary systems
• Networks with distributed generation, loop‑network and meshed distribution system protection and automation
• Resonance‑earthed (Petersen coil) network requiring high‑sensitivity selective earth‑fault protection
• Substation bay level control integrating protection, measurement and interlock logic in single IED device
• Retrofit and spare‑part replacement for existing Relion 630‑series installed‑base protection systems

Common Problems & Troubleshooting

• IED fails power‑on: Check rated auxiliary power supply voltage range; inspect cabinet fuse and terminal wiring; verify internal power module health; reboot IED and check front‑panel LED status.
• Protection false tripping or unwanted operation: Review setting‑group parameters; verify CT/VT secondary wiring polarity and grounding; check transient substation interference; re‑tune earth‑fault and overcurrent setting values.
• Metering reading deviation: Confirm CT and VT ratio parameter configuration; inspect loose terminals on CT/VT secondary circuits; check for CT secondary open‑circuit risk; perform measurement loop calibration.
• Communication cannot connect with PCM600 / SCADA: Verify IP address, subnet mask and gateway setting; check Ethernet cable quality; confirm IEC‑61850 / Modbus slave address and baud‑rate parameters; inspect network firewall and switch port status.
• Digital input status not updated: Check field loop supply voltage; verify dry‑contact continuity; inspect input threshold parameter setting; check wiring terminal tightness under cabinet vibration.
• Fault record or SOE cannot be retrieved: Check IED internal time‑synchronization (SNTP / IRIG‑B); confirm storage resource availability; upgrade firmware version if parsing error occurs.
• Spare‑part replacement mismatch risk: Use full ordering code REF630 VBFNBAADAAAZCNBBXD; different suffix letters represent different I/O, power‑supply, communication and feature options; wrong variant causes function missing, re‑configuration required after replacement.
