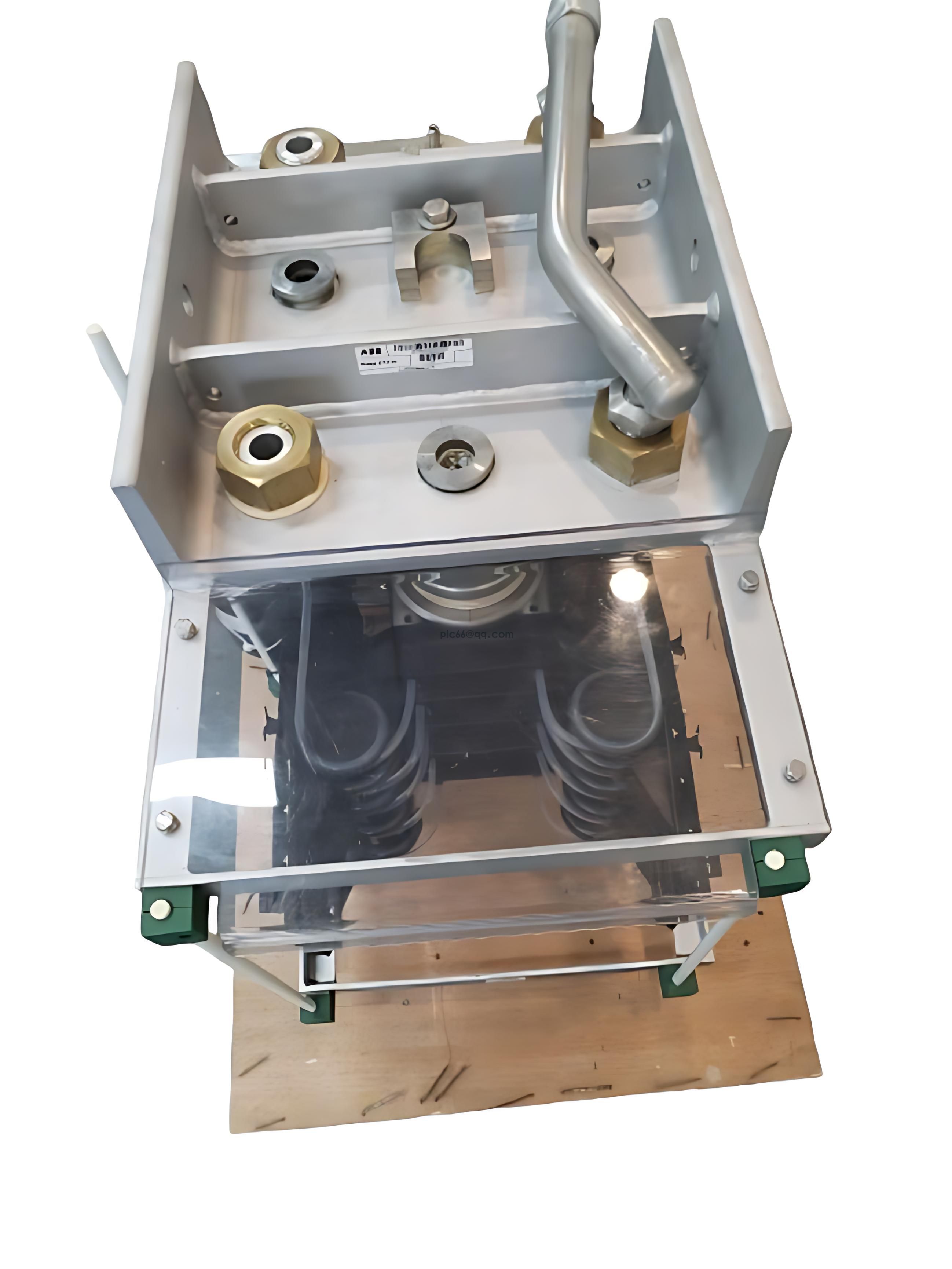

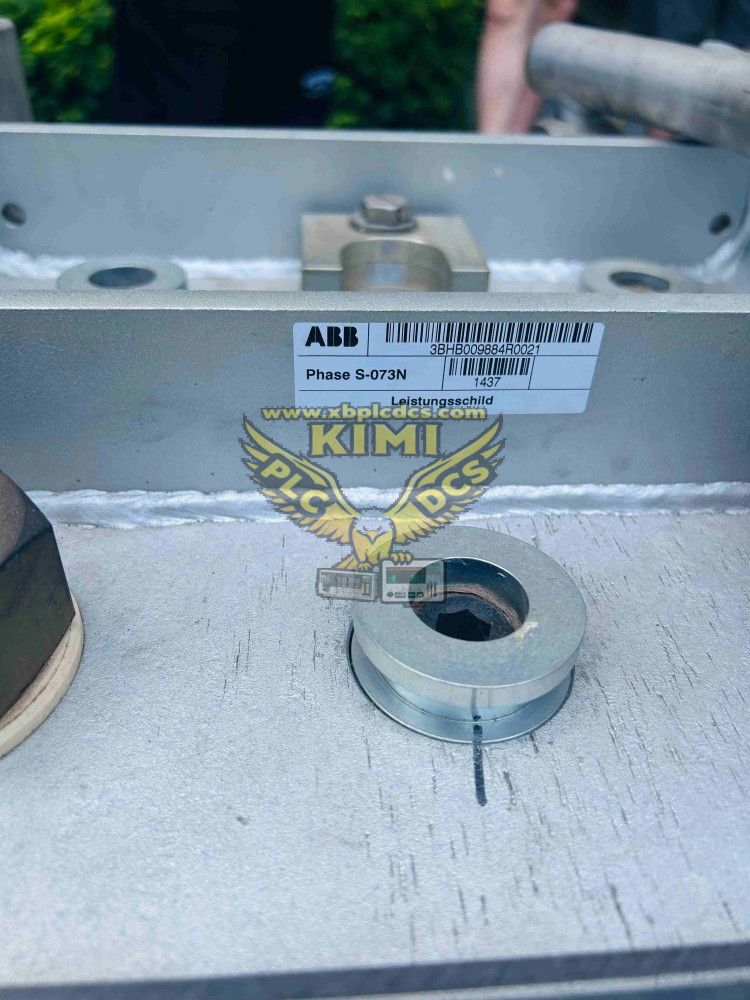

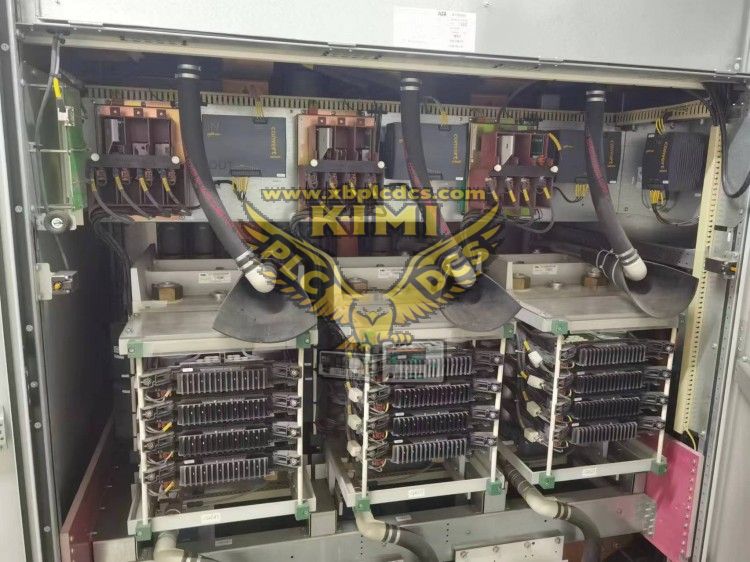

ABB ACS6000 S-073N 3BHB009884R0021 7 MV Standard Phase Module

Product Description

The ABB ACS6000 S-073N 3BHB009884R0021 is a 7 MV standard phase module optimized for ACS6000 medium-voltage drive systems, utilizing cost-effective yet high-reliability IGCT semiconductor technology to achieve stable low-loss power conversion. It integrates basic precision gate driver circuits, single-point thermal monitoring, and dual-mode cooling interfaces (forced air/liquid) to adapt to mild-to-moderate industrial environments with stable temperature conditions. The module features a compact modular design for easy installation and maintenance, complies with IEC 61800-5-1 safety standards, operates stably at ambient temperatures from -10°C to +40°C, and offers an IP20 front-panel protection rating, ensuring long-term cost-efficient reliability in medium-power motor control applications for auxiliary industrial equipment.

• ABB Model Name (Alternative): PHASE S-073N G1.03
• CN8: 85049099
• Core Credit: 0.00
• Country of Origin: Switzerland
• Customs Tariff Number: 85049090
• External Dimensions: Spare_Parts
• Total Volume: 0 m³
• Gross Weight: 180 kg
• Invoice Description: PHASE MODULE
• Made to Order: No
• Minimum Order Quantity: 1 piece
• Order Multiples: 1 piece
• Level 1 Packaging Length: 0 mm
• Level 1 Packaging Total Weight: 180 kg
• Level 1 Packaging Height: 0 mm
• Level 1 Packaging Unit: 1 piece
• Level 1 Packaging Width: 0 mm
• Part Type: New
• Product: PHASE MODULE
• Product Net Depth: 0 mm
• Product Net Height: 0 mm
• Product Net Weight: 175 kg
• Product Net Width: 0 mm
• Product Application Type: Spare_Parts
• Quote Only: No
• Sales Unit of Measure: piece
• Warehouse Inventory Locations:
• Finland
• New Berlin, Wisconsin, United States
• Beijing, China
• Singapore, Singapore
• Tokyo, Japan
• Finland

• Bangalore, India

Key Functions

The S-073N 3BHB009884R0021 delivers core 7 MV standard drive phase control capabilities: High-precision phase voltage/current regulation via optimized IGCT technology for smooth motor speed/torque control and IEEE 519 grid harmonic compliance; 7 MV standard continuous operation to handle steady light-to-medium industrial loads; Dual-mode cooling compatibility for flexible deployment in different thermal environments without additional cost; Basic thermal, overcurrent and overvoltage protection to safeguard power semiconductors and reduce maintenance frequency; Seamless integration with ACS6000 master controllers for centralized local diagnostics and monitoring; Compact modular structure enabling quick replacement and system expansion with minimal downtime; Low total cost of ownership (TCO) to meet the budget requirements of auxiliary equipment motor control projects.

Application Scenarios

The S-073N 3BHB009884R0021 excels in 7 MV standard motor control across light industrial and heavy industry auxiliary sectors: Metallurgy for rolling mill lubrication pump and cooling tower fan motor control; Power generation for coal handling conveyor and ash removal system motor drives; Mining for auxiliary ventilation fan and small-scale feeder motor systems in surface operations; Petrochemical refining for storage tank mixing pump and pipeline transfer pump motor drives; Pulp & paper for wastewater treatment system and raw material handling conveyor motor control; General manufacturing for factory ventilation and material transport motor drives requiring stable operation and low maintenance costs.

Technical Information

• - Dual-use item (ECN 3A001g2). Subject to international export control.
• NOTE! Module not manufactured anymore.
• NOTE2! ALL clamp diodes must be the same type in INU phase modules supplying the same motor. Diode 3BHB006457R0001
• Verify from the customer if water fast coupling upgrade to INOX has been performed:
• If water fast coupling upgrade done = 3BHB009884R0204
• If water fast coupling upgrade NOT done = 3BHB009884R5211
• UNSPSC: 39122004
• WEEE B2C / B2B: Business To Business
• WEEE Category: Product Not in WEEE Scope; Parts

• Category Path: Parts and Services › Drives › Services › Spare Parts and Consumables › Components
