PM891K02  3BSE053242R1 Redundant Processor Unit

PM891K02 3BSE053242R1 is a redundant processor unit that adopts the MPC8270 processor and can be connected to multiple expansion modules via the communication expansion bus CEX-Bus.

Seven S800 I/O unit clusters can also be connected by using the optical module bus. It has full EMC certification, a protection level of IP20, and supports hot plugging.

It is applicable to industrial automation fields with high reliability requirements such as petroleum, chemical engineering and power.

Product ID:3BSE053242R1

ABB model name :PM891K02

Catalogue Description :PM891K02 Redundant Processor Unit

Product net depth: 94mm

Product clear height: 186mm

Product net width: 174mm

Net weight of the product :4 kg

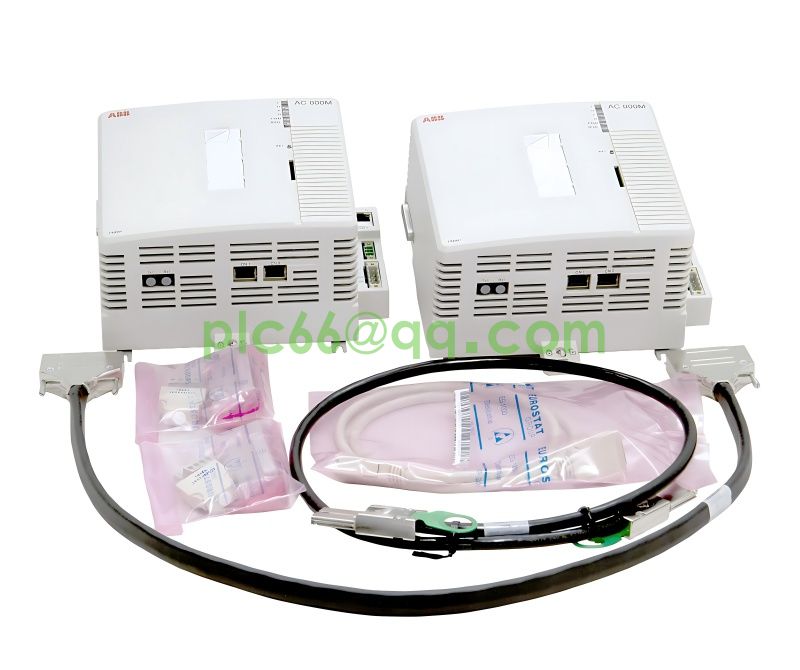

450MHZ and 256MB. Package including: - 2 pcs PM891K01 Processor Unit - TK850V007 CEX-bus Extension Cable - TK855 RCU Data Link Cable - TK856 RCU Control Link Cable - No license included

The PM891 processor is a monolithic unit equipped with power supply, CPU-boards and unit termination.

The unit contains microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button and a Secure Digital interface.

The PM891 does not contain any internal battery The PM891 has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and one RJ45 serial port (COM4).

The COM4 port is isolated and used for a configuration tool. The PM891 supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

The communication expansion bus (CEX-Bus) is mounted on the unit. The CEX-Bus is used for extending the on-board communication ports with communication interface units.

It is possible to use redundant communication interfaces on the CEX-Bus.

The CEX-Bus Interconnection unit BC810 is used to increase the availability on the CEX-Bus by dividing it into separate segments.

The optical Modulebus of the unit can be used for connecting seven clusters of S800 I/O units (each comprising up to 12 units).

Each PM891 is provided with a unique Ethernet address which provides hardware identity to the unit.

Please note: The BC810K02 is not included in the PM891K02 Redundant Processor Unit kit.

In order to make hot replacement of PM891 Processor Unit possible, the BC810K02 is required and has to be ordered separately.
