Brief Product Description

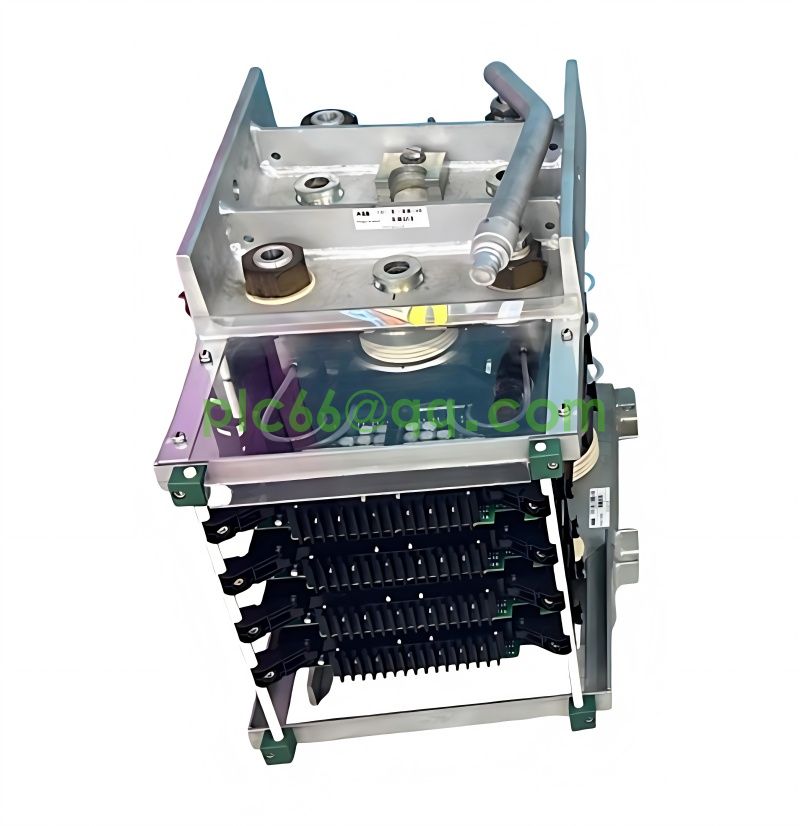

S‑093H, part number 3BHB030478R0309, is a high‑power IGCT‑based phase module designed for ABB ACS6000 medium‑voltage variable frequency drive systems, rated for 9 MVA power conversion capacity. This fully integrated drawer‑style power unit integrates IGCT power semiconductors, gate drive circuits, snubber protection components and precision monitoring sensors. Adopting three‑level inverter topology and fiber‑optic triggering technology, it delivers efficient and reliable AC‑DC‑AC power conversion for heavy‑duty industrial motors. Featuring liquid cooling structure and strong anti‑interference performance, it ensures stable long‑term operation under high‑voltage and high‑load conditions. As a critical end‑of‑life spare part, it is widely supplied as fully tested refurbished and surplus units for maintenance and retrofitting of legacy ABB medium‑voltage drive systems.

Core Product Functions

• High‑efficiency three‑level AC‑DC‑AC power conversion for 9MVA medium‑voltage drive systems to realize motor speed and torque regulation
• Integrated IGCT power devices and fiber‑optic gate drive units ensure noise‑immune precise switching control
• Built‑in snubber circuits suppress voltage spikes and transient surges to protect internal power semiconductor components
• Real‑time monitoring of internal temperature, current and voltage parameters for dynamic power unit protection
• Liquid cooling heat dissipation system supports continuous heavy‑load operation and reduces operating temperature rise
• Accurate phase sequence detection and voltage balance monitoring to maintain three‑phase power output stability
• Multiple hardware protection mechanisms including over‑current, over‑voltage and over‑temperature fault self‑protection
• Drawer‑type modular structure enables convenient installation, inspection and field replacement

• Transmits real‑time operating status and fault diagnostic data to the main drive controller for system logic judgment and alarm output

Application Scenarios

• ABB ACS6000 medium‑voltage drive systems for 9MVA industrial heavy‑duty motor equipment
• Mining and mineral processing plant large crusher, conveyor and fan medium‑variable speed drive systems
• Petrochemical and chemical industry high‑power compressor and pump frequency conversion control cabinets
• Cement and metallurgical plant high‑capacity medium‑voltage motor energy‑saving speed regulation systems
• Power plant auxiliary large mechanical equipment variable frequency drive and power regulation installations

• Spare replacement phase module for maintenance, fault repair and system upgrade of legacy ABB ACS6000 drive racks

FAQ (Frequently Asked Questions)

• Q: Drive system reports phase module over‑temperature or power unit fault?
  A: Check liquid cooling pipeline blockage, insufficient cooling water flow, sensor failure, internal IGCT device aging or poor heat dissipation.
• Q: Drive trips intermittently with unbalanced three‑phase output alarms?
  A: Inspect module internal circuit damage, snubber component failure, inconsistent phase switching or loose high‑voltage wiring terminals.
• Q: Can ABB S‑093H 3BHB030478R0309 be hot‑swapped during drive operation?
  A: Hot‑swap is strictly prohibited. Cut off all high‑voltage power, fully discharge DC bus capacitors and complete lockout‑tagout procedures before replacement.
• Q: Is this module compatible with other ABB drive series or third‑party medium‑voltage inverters?
  A: It is exclusively designed for ABB ACS6000 drive platform. Dedicated IGCT logic, fiber trigger protocol and cooling structure do not support cross‑platform use.

• Q: Is ABB S‑093H 3BHB030478R0309 available for new drive projects?
  A: This legacy medium‑voltage phase module has reached end‑of‑life. Only surplus and fully tested refurbished units are provided for existing site maintenance and retrofit work.

• ABB S-093H 3BHB030478R0309   PHASE MODULE.pdf
