- Brand:ABB
- Part number:PFTL301E-0.2kN 3BSE019050R200
- Product Origin:Sweden
- Weight:5.75 kg
- HS CODE:8443919090
- RMB Market price:20000-30000
- Warehouse: Spot
- Warranty: 365 days
- Quality: Original module
- Condition: New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat:18059884790
- E-mail: plc66@qq.com
The PFTL301E-0.2kN 3BSE019050R200 is a miniature paper tension level pressure measurement element produced by ABB.
Its rated force measurement range is from 0.1kN to 1.0kN, with a typical range of 0.2kN. The accuracy complies with the IEC 61131-2 standard and is suitable for high-precision industrial measurement.
It is connected by cylindrical plugs or fixed cables and has a protection level of IP66/67.
It can adapt to harsh environments such as the wet end of papermaking. The power supply voltage is 24V DC, and the output analog signal is such as 4-20mA or 0-10V, which is compatible with most control systems.
It is mainly used for real-time monitoring of material tension and can output standard signals to PLC or DCS systems, supporting constant tension closed-loop control.
It is applicable to industries such as papermaking, textile, and metal processing, and can be used in scenarios like paper sheet tension measurement, yarn and fabric tension control, and tension monitoring of tapes and wires.
It can prevent paper breakage, wrinkles, and other situations, ensure product quality, and optimize production stability.
It is equipped with an 8-meter cable and comes with top and bottom adapter boards for easy installation and use.
Product Number: 3BSE019050R200
ABB model name: PFTL301E-0.2kN
Catalogue Description: PFTL301E-0.2kN, load cell
Net weight of the product: 5.75kg
Technical information

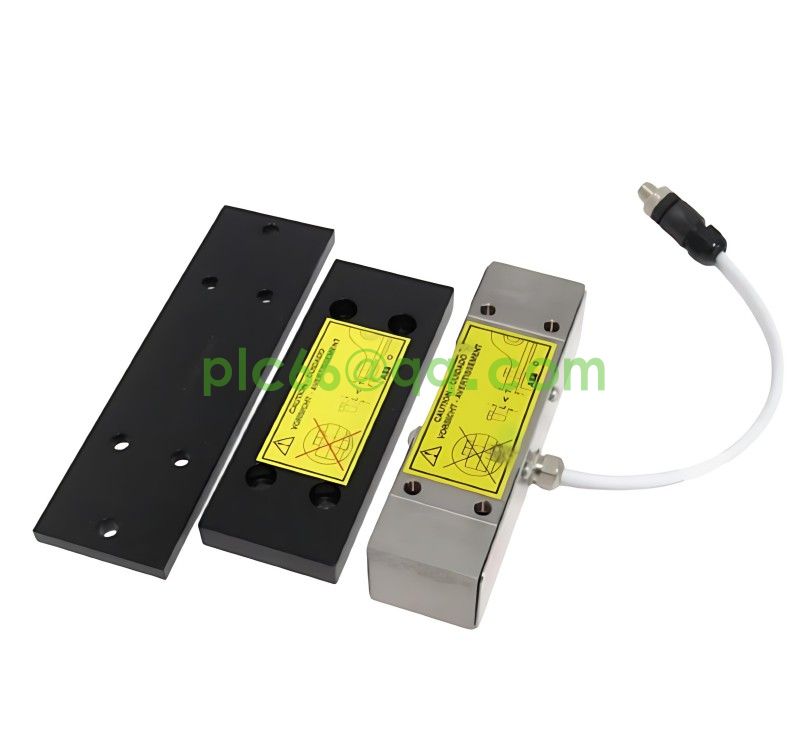

PFTL301E-0.2kN, with 8 m cable (horizontal)
Top and bottom adapter plate included.
Unlike indenters that measure vertical components, they do not measure the weight of tension rollers. Therefore,
the specifications of these pressure heads can be determined solely based on the magnitude of the tension and the functions corresponding to the upper limit of their measurement range (at which point the performance of the pressure head is the best).
The result is that the indenter always provides the best tension measurement performance, even when the roller is heavy and the tension is small.
A high-quality indenter with no drift and no need for recalibration
- Wide measurement range
- Simple and easy to use
数据
Properties | PFTL301E | ||||
Nominal load | |||||
(rated capacity) | kN | 0.1 | 0.2 | 0.5 | 1.0 |
Lbs. | 22 | 45 | 112 | 225 | |
Extended load | kN | 0.15 | 0.3 | 0.75 | 1.5 |
Lbs. | 33 | 67 | 169 | 337 | |
Permitted load | |||||
Transverse direction | kN | 0.3 | 0.6 | 1.5 | 3.0 |
(vertical) h=135 mm | Lbs. | 67 | 135 | 337 | 674 |
Overload capacity | |||||
Measurement direction | kN | 0.3 | 0.6 | 1.5 | 3.0 |
(horizontal) | Lbs. | 67 | 135 | 337 | 674 |
Transverse direction | kN | 0.5 | 1.0 | 2.5 | 5.0 |
(vertical) h=135 mm | Lbs. | 112 | 225 | 562 | 1125 |
Deflection | mm | 0.05 | 0.05 | 0.07 | 0.13 |
1/1000 in. | 2.0 | 2.0 | 2.8 | 5.0 | |
Spring constant | kN/mm | 2.0 | 4.0 | 7.0 | 8.0 |
1000 Lbs./inch | 11.3 | 22.4 | 39.7 | 44.6 |
Magnetomechanical technology
The pressure head of ABB's Millmate strip tension measurement system is based on the renowned Pressductor® magnetostrictive effect, which was patented in 1954.
According to this principle, the magnetic properties of steel are affected by mechanical forces.
There are four holes inside the sensor. Two mutually perpendicular coils are wound together through these holes. One coil is applied alternating current, and the other coil serves as the measuring coil.
Since the two coils are perpendicular to each other, there will be no magnetic coupling between them as long as there is no load on the sensor.
If there is a load on the sensor (as shown in the figure), the magnetic field characteristics will change. The magnetic permeability of steel will decrease in the direction of force application and increase in the vertical direction.
This causes a change in the symmetry of the magnetic flux, and part of the magnetic flux will induce an induced voltage in the secondary side coil. The induced voltage is proportional to the load.
ABB's unique magneto-compression ® technology makes the Mini series pillow pressors exceptionally sturdy, enabling them to withstand a wide range of working conditions
