Brief Product Description

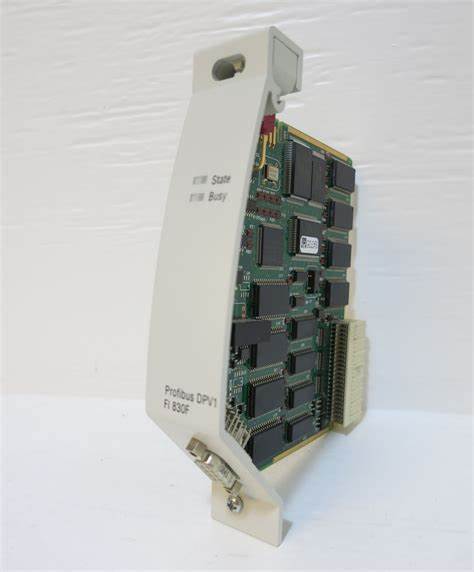

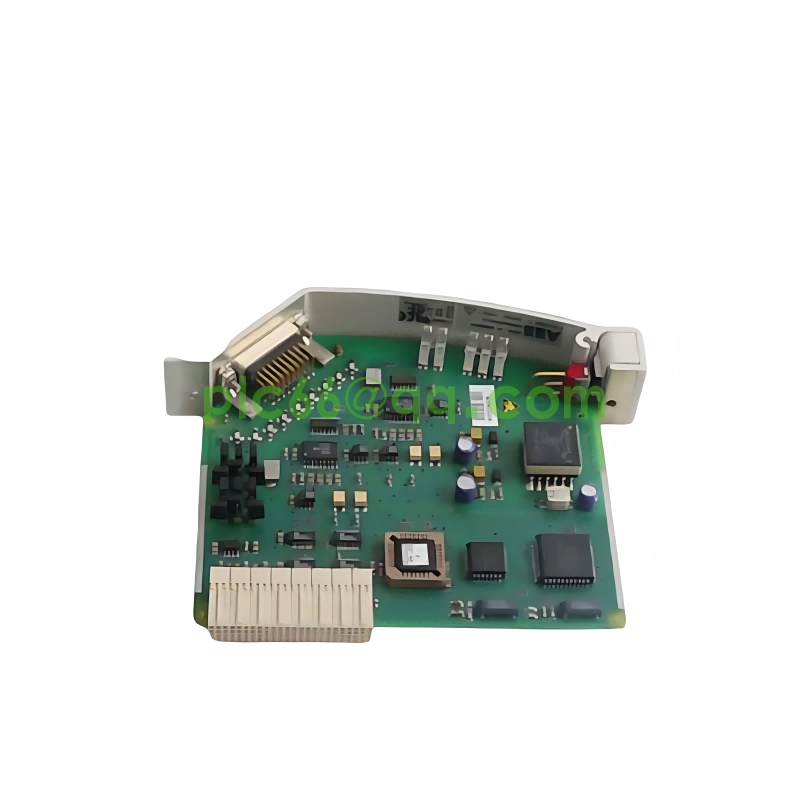

FI830F, part number 3BDH000032R1, is a rack‑mounted PROFIBUS‑DP fieldbus interface module for ABB Freelance DCS system. Operating as a PROFIBUS‑DP master station, it establishes data communication between the DCS controller and diverse PROFIBUS‑DP slave field devices such as remote I/O, drives, transmitters and valve positioners. It handles cyclic process data exchange, diagnostics and bus management for field‑level equipment. Designed for redundant system architecture options, this module fits standard Freelance hardware racks with reliable galvanic bus isolation for harsh industrial environments. As a legacy DCS spare part, it is offered as fully‑tested surplus and refurbished units for maintenance and retrofit of existing Freelance distributed control installations.

id: 3bdh000032r1

Abb 830f

FI 830F fieldbus module PROFIBUS-DP

fi830f fieldbus module, PROFIBUS-DP

Does not comply with the RoHS standard

[au:] 5 Small-sized equipment (with an external dimension not exceeding 50cm

SCIP: Malta has no SVHC

Product net depth: 125mm

Product clear height: 155mm

Product net width: 28mm

Net weight of the product: 0.26kg

Core Product Functions

• PROFIBUS‑DP master function for cyclic data communication with multiple PROFIBUS‑DP slave field devices
• Real‑time transmission of process input/output data between Freelance DCS controller and field bus slaves
• Support extensive slave device types: remote I/O modules, frequency converters, sensors, actuators and motor starters
• Comprehensive bus diagnostic functions for slave fault detection, short‑circuit and communication error reporting
• Galvanic isolation on PROFIBUS‑DP port to suppress ground‑loop interference and improve EMC performance
• Supports redundant configuration for enhanced system availability for critical process control loops

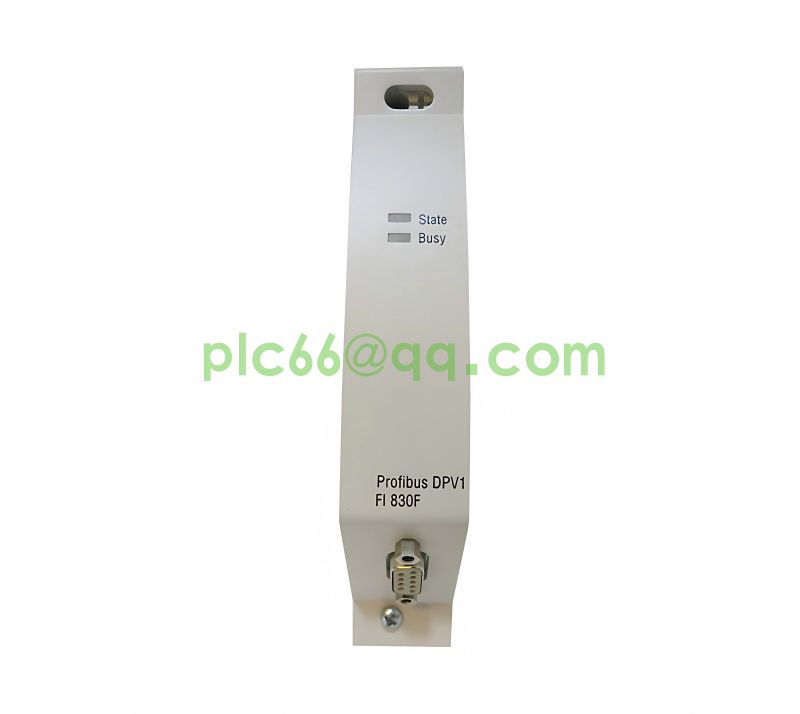

• Front‑panel LED status indicators for module run state, bus activity and fault diagnostic indication
• Seamless data interaction with other Freelance rack modules via internal backplane bus
• Parameter configuration and slave device management accomplished through Freelance engineering tool software

Application Scenarios

• ABB Freelance DCS system PROFIBUS‑DP fieldbus communication for process industry plants
• Chemical, petrochemical and pharmaceutical factory distributed control system cabinet communication interfaces
• Power plant auxiliary control systems, water treatment and waste‑water automation control facilities
• Oil & gas processing plant field device networking based on PROFIBUS‑DP protocol
• Modernization and spare‑part replacement for aging Freelance DCS automation installations
• Spare replacement fieldbus module for maintenance, troubleshooting and upgrade of existing Freelance DCS racks

FAQ (Frequently Asked Questions)

• Q: PROFIBUS‑DP bus communication failure after installing FI830F 3BDH000032R1?
  A: Check bus cable wiring, terminal termination resistance, slave address configuration, backplane contact condition and DCS project hardware configuration download status.
• Q: Partial PROFIBUS‑DP slave devices drop offline intermittently?
  A: Inspect bus shielding and grounding, check bus segment length, eliminate signal reflection and verify individual slave device health status.
• Q: Can FI830F operate as PROFIBUS‑DP slave module?
  A: No, it functions exclusively as PROFIBUS‑DP master; it cannot be configured for slave‑mode operation.

• Q: Does FI830F 3BDH000032R1 support hot‑swap replacement while DCS system remains online?
  A: Follow official operating procedures for hot‑swap; bus communication will be interrupted briefly during module replacement process.
