PFTL301E-0.5kN 3BSE019050R500 Load cell
  • Brand:ABB
  • Part number:PFTL301E-0.5kN 3BSE019050R500
  • Product Origin:Sweden
  • Weight:5.25 kg
  • HS CODE:8479909090
  • RMB Market price:20000-30000
  • Warehouse: Spot
  • Warranty: 365 days
  • Quality: Original module
  • Condition: New
  • Shipping method: Courier delivery

  • Contact person: LI MING
  • Contact number: +86 18059884790
  • WeChat:18059884790
  • E-mail: plc66@qq.com

Product Description

The PFTL301E-0.5kN 3BSE019050R500 is a load cell from the Pressductor PillowBlock series.

This sensor is specially designed for measuring horizontal tension in coil processing and is widely used in industries such as paper, textiles and plastic films.

Unlike traditional sensors that measure both roll weight and tension simultaneously, the PFTL301E only senses the horizontal component of the roll tension.

This design enables the sensor to be precisely selected based on actual tension requirements, providing outstanding tension measurement performance even in conditions where heavy rollers and slight tension coexist.

The rated load of this model is 0.5 kN (approximately 112 pounds).

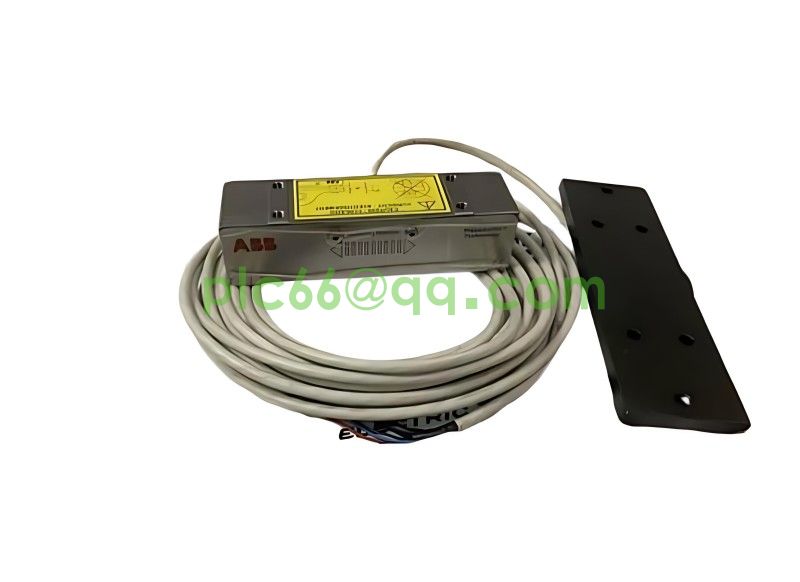

PFTL301E 0.5kN.jpg


Load cells are mainly used to measure tension and convert it into electrical signals.

It is widely used in industries such as papermaking, textile, and plastic, and can measure the tension of paper, fabric, film, etc.

It helps to achieve precise control during the production process and ensures the stability of product quality.

In addition, it can also be used for data collection, providing data support for the optimization of the production process.

Its installation methods are diverse, including beam type, micro type, etc. The interface types are cable type or lead type, which is convenient for users to install and connect according to their actual needs




Product Number: 3BSE019050R500

ABB model name: PFTL301E-0.5kN

Catalogue Description: PFTL301E-0.5kN, load cell

Net weight of the product: 5.25kg

Technical information

PFTL301E-0.5kN, with 8 m cable (horizontal)

Top and bottom adapter plate included.





Unlike indenters that measure vertical components, they do not measure the weight of tension rollers. Therefore,

the specifications of these pressure heads can be determined solely based on the magnitude of the tension and the functions corresponding to the upper limit of their measurement range (at which point the performance of the pressure head is the best).

The result is that the indenter always provides the best tension measurement performance, even when the roller is heavy and the tension is small.

A high-quality indenter with no drift and no need for recalibration

- Wide measurement range

- Simple and easy to use



数据

Properties
PFTL301E
Nominal load




(rated capacity)kN0.10.20.51.0

Lbs.2245112225
Extended loadkN0.150.30.751.5

Lbs.3367169337
Permitted load




Transverse directionkN0.30.61.53.0
(vertical) h=135 mmLbs.67135337674
Overload capacity




Measurement directionkN0.30.61.53.0
(horizontal)Lbs.67135337674
Transverse directionkN0.51.02.55.0
(vertical) h=135 mmLbs.1122255621125
Deflectionmm0.050.050.070.13

1/1000 in.2.02.02.85.0
Spring constantkN/mm2.04.07.08.0

1000 Lbs./inch11.322.439.744.6




Magnetomechanical technology

The pressure head of ABB's Millmate strip tension measurement system is based on the renowned Pressductor® magnetostrictive effect, which was patented in 1954.

According to this principle, the magnetic properties of steel are affected by mechanical forces.


There are four holes inside the sensor. Two mutually perpendicular coils are wound together through these holes. One coil is applied alternating current, and the other coil serves as the measuring coil.

Since the two coils are perpendicular to each other, there will be no magnetic coupling between them as long as there is no load on the sensor.


If there is a load on the sensor (as shown in the figure), the magnetic field characteristics will change. The magnetic permeability of steel will decrease in the direction of force application and increase in the vertical direction.

This causes a change in the symmetry of the magnetic flux, and part of the magnetic flux will induce an induced voltage in the secondary side coil. The induced voltage is proportional to the load.


ABB's unique magneto-compression ® technology makes the Mini series pillow pressors exceptionally sturdy, enabling them to withstand a wide range of working conditions
