BENTLY NEVADA 3500/15 106M1079-01 ARM-1813-00GE Universal AC Power Supply Module--KIMI
- Part number：Bently Nevada 3500/15 106M1079-01
- Product Origin：America
- HS CODE：8708299000
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description

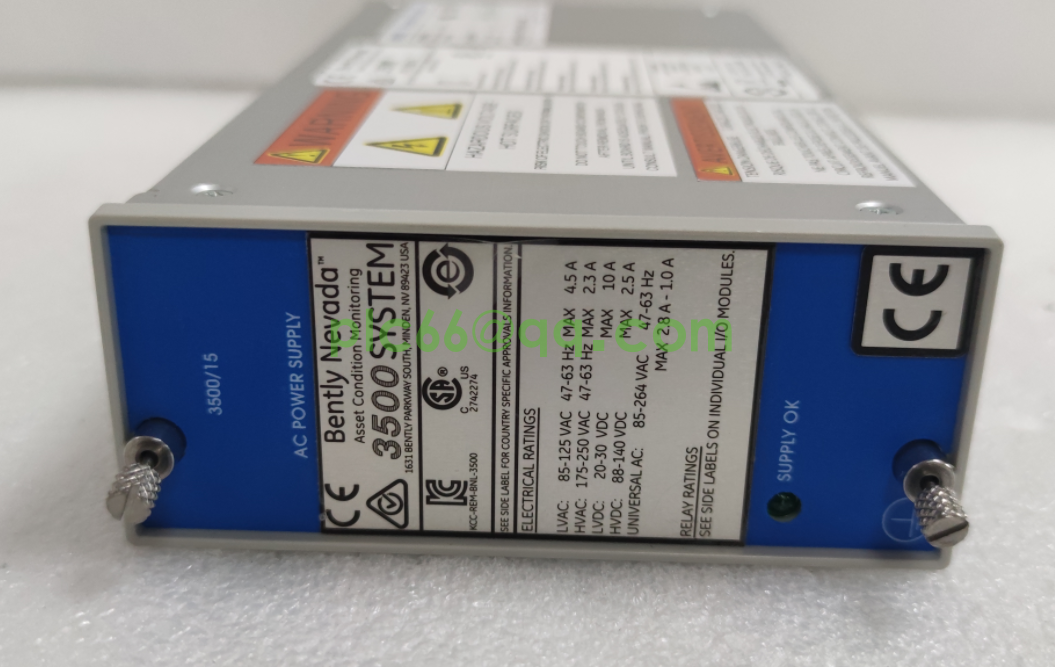

BENTLY NEVADA 3500/15 106M1079-01 ARM-1813-00GE Universal AC Power Supply Module
Redundant Power Supply for 3500 Series Machinery Protection System
1. Product Overview
The BENTLY NEVADA 3500/15 (106M1079-01, ARM-1813-00GE) is a universal AC power supply module designed for the 3500 Series Machinery Protection System, a half-height unit that converts 85-264 VAC input into stable 24 VDC output to power all modules in the 3500 rack. It supports redundant configuration (two modules can be installed in the rack, with primary/backup operation) and hot-swapping without disrupting system operation when a second supply is active. With built-in overload, short-circuit, and over-temperature protection, it ensures reliable power delivery in power generation, oil & gas, and petrochemical industries, safeguarding critical rotating machinery like turbines, compressors, and generators.
2. Key Technical Specifications
• Product Type: Universal AC Power Supply Module (Half-Height)
• Brand & Model: BENTLY NEVADA 3500/15, 106M1079-01, ARM-1813-00GE
• System Compatibility: BENTLY NEVADA 3500 Series Machinery Protection System
• Input Voltage: 85-264 VAC, 50/60 Hz (Universal AC Input)
• Output Voltage: 24 VDC (Stable Output for 3500 Modules)
• Output Power: 120 W (5 A Max. Output Current)
• Input Current: 2.8 A RMS Max. (85 VAC)
• Redundancy Support: Dual Power Supply Configuration (Primary/Backup)
• Hot-Swap Capability: Supported (No System Interruption with Secondary Supply)
• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Protection Class: IP20 (Module Chassis Mount)
• Dimensions (H×W×D): 120.7 × 50.8 × 251.5 mm (4.75 × 2.0 × 9.9 in)
• Gross Weight: 1.39 kg (3.06 lbs)
• Certifications: CE, CSA/NRTL/C (Class I, Division 2), ATEX/IECEx
3. Core Features
• Universal AC Input: 85-264 VAC Range Adapts to Global Power Standards.
• Redundant Power Design: Dual Module Installation for Primary/Backup Operation (Full Rack Power by Either).
• Hot-Swapping: Replace Module Without System Shutdown (When Secondary Supply is Active).
• Comprehensive Protection: Overload, Short-Circuit, Over-Temperature, and EMC Protection (EN55011 Class A).
• LED Indicators: "Supply OK" and "Fault" LEDs for Real-Time Status Monitoring.
• Half-Height Design: Fits in Designated Left Slots of 3500 Rack (Two Modules per Rack Max.).
• Stable Output: Line Noise Filter Ensures Clean 24 VDC Power for Accurate Monitoring Data.
• Easy Installation: Quick DIN Rail Mounting with Screw Terminals for Power Connections.
4. Typical Applications
• Power Generation: Turbine/Generator Protection Systems (3500 Vibration/Displacement Monitoring).
• Oil & Gas: Compressor/Pump Machinery Protection (API 670 Compliance for Critical Equipment).
• Petrochemical: Refinery Rotating Equipment Monitoring (Motor, Blower, and Fan Protection).
• Pulp & Paper: Paper Machine Roll Vibration Monitoring (Prevent Unplanned Downtime).
• Marine: Ship Propulsion System Protection (Main Engine and Gearbox Monitoring).
• Metallurgy: Rolling Mill Equipment Protection (Reduce Maintenance Costs & Improve Reliability).
5. Installation & Maintenance
• Mounting: Install in Designated Left Slots of 3500 Rack (Half-Height, 2 Slots for Redundancy).
• Wiring: AC Input via Screw Terminals (1.5 mm² Max. Cable, Tighten to 0.8 Nm).
• Redundancy Setup: Install Two Modules (Lower Slot = Primary, Upper Slot = Backup).
• Hot-Swap: Replace Module While Secondary Supply is Active (No System Interruption).
• Maintenance: Check "Supply OK" LED; Clean Air Vents Annually; Verify Input/Output Voltage with Multimeter.
• Troubleshooting: Use 3500 Configuration Software to Check Power Module Status & Redundancy Operation.
• Safety Guidelines: Disconnect AC Power Before Installation; Ensure Proper Earthing for Noise Immunity.
Technical Document | BENTLY NEVADA 3500/15 | 106M1079-01 | ARM-1813-00GE | Universal AC Power Supply Module
