XO08R2 1SBP260109R1001 Extension Module-KIMI
- Part number：XO08R2 1SBP260109R1001
- Product Origin：America
- HS CODE：8537109021
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description

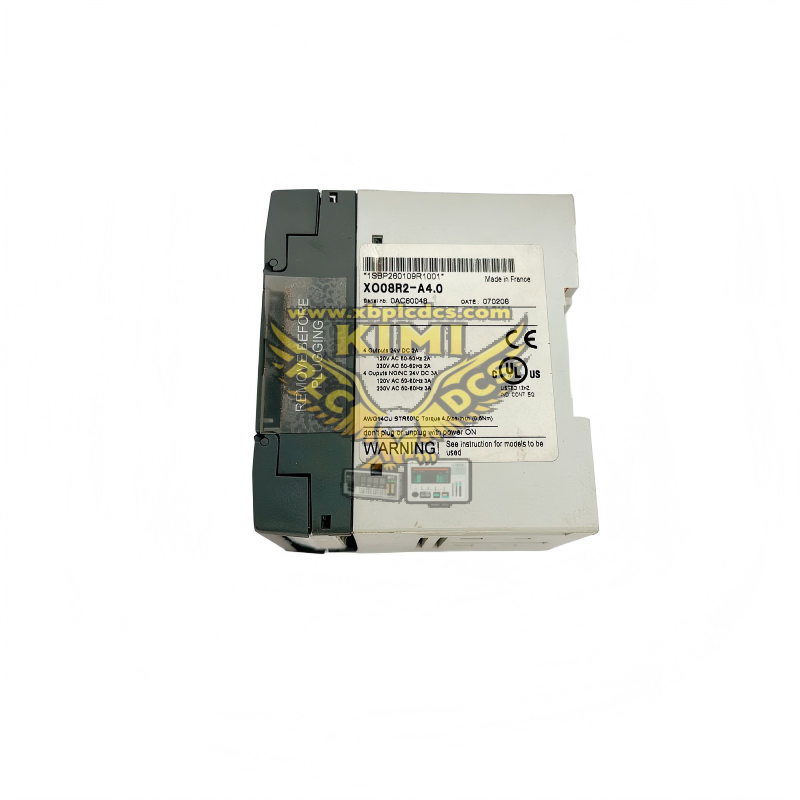

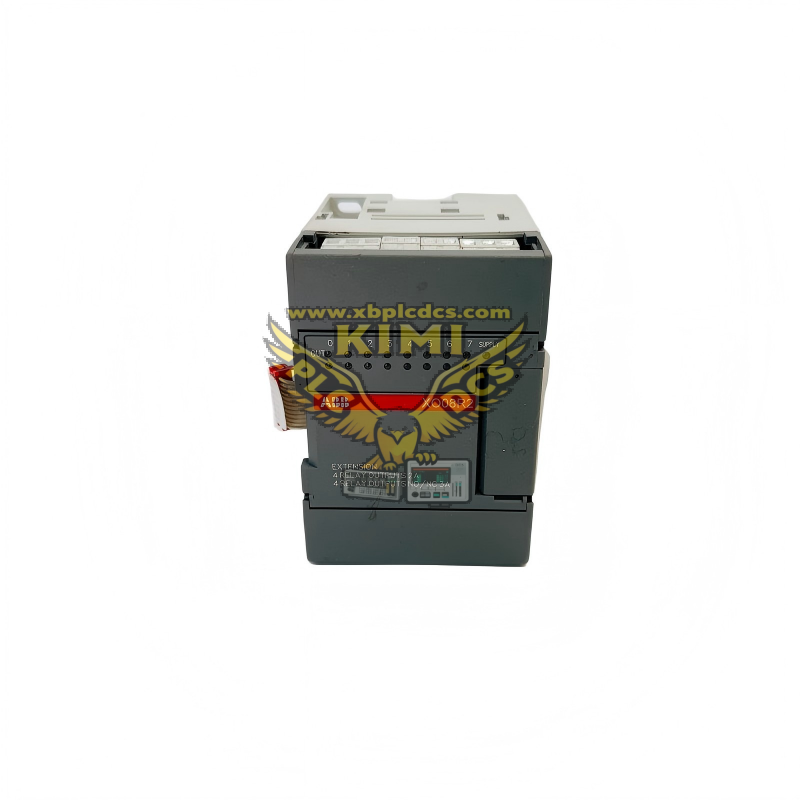

ABB XO08R2 1SBP260109R1001 8-Channel Relay Output Extension Module
Advant Controller 31 Series - High - Performance Relay Output Expansion for Industrial Automation Control
1. Product Overview
The ABB XO08R2 1SBP260109R1001 is a high - performance 8 - channel relay output extension module belonging to the ABB Advant Controller 31 series, which is specially designed for expanding the output capacity of the PLC system. It has 4 normally - open (NO) relay output channels and 4 configurable normally - open/normally - closed (NO/NC) relay output channels, which can directly drive loads such as solenoid valves, motor contactors, and indicator lights in industrial fields. The module communicates with the CPU through the backplane bus, is powered by an external 24 V DC power supply, and adopts a modular DIN rail mounting design. It is suitable for various industrial automation scenarios such as process control, factory automation, and building automation, and provides reliable relay isolation and load driving capabilities for the control system.
Key Specifications
• Model: XO08R2 | Ordering Code: 1SBP260109R1001 | Brand: ABB | Series: Advant Controller 31
• Type: 8 - Channel Relay Output Extension Module for PLC System Expansion
• Output Configuration: 4 x NO (250 V AC/2 A), 4 x Configurable NO/NC (250 V AC/3 A)
• Contact Rating: Resistive Load - 250 V AC/2 A (NO), 250 V AC/3 A (NO/NC); Inductive Load - 250 V AC/0.5 A
• Switching Life: 10⁶ Operations (At Rated Load), 10⁸ Operations (At No Load)
• Communication: Backplane I/O BUS (With Advant Controller 31 CPU)
• Power Supply: External 24 V DC (18 - 32 V DC) | Typical Power Consumption: 5 W
• Isolation: Channel - to - Channel Isolation 500 V AC; Module - to - Backplane Isolation 1500 V AC
• Operating Temperature: -20°C to +60°C | Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% - 95% (Non - Condensing)
• Protection Class: IP20 (Front Panel); MTBF: > 100,000 Hours
• Dimensions: 100 mm (W) × 150 mm (D) × 25 mm (H) | Weight: 0.3 kg
• Installation: DIN Rail Mounting (EN 50022 Standard); Wiring: Screw - Terminal Connectors
• Protection Features: Over - current Protection, Short - Circuit Protection, Over - temperature Protection
2. Core Features
• 8 - Channel Relay Output: 4 fixed NO and 4 configurable NO/NC channels to meet diverse load control requirements
• High - Power Load Driving: Supports 250 V AC/3 A resistive load for the NO/NC channels, suitable for driving heavy - duty industrial loads
• Backplane Bus Communication: Seamless integration with Advant Controller 31 CPU for fast and stable data transmission
• High Isolation Performance: Channel - to - channel and module - to - backplane isolation to prevent signal interference and protect the controller
• Modular DIN Rail Design: Quick installation and replacement without system shutdown
• Comprehensive Protection: Built - in over - current, short - circuit, and over - temperature protection to ensure the stable operation of the module and loads
• Long Switching Life: 10⁶ operations at rated load, ensuring long - term reliable use in industrial environments
• Easy Configuration: Configurable via ABB Control Builder Software, with intuitive parameter setting interface
YMGK Purchase Information
This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.
One-Stop Global Industrial Product Procurement
- Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
- Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
- Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
- Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
- Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.
For additional inquiries, reach out to us at any time.
All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders
3. Typical Applications
• Process Automation: Control of solenoid valves, pneumatic valves, and hydraulic valves in chemical, pharmaceutical, and food processing industries
• Factory Automation: Control of motor contactors, alarm lights, and buzzers in assembly lines and packaging machinery
• Building Automation: Control of lighting systems, HVAC dampers, and water valves in commercial buildings
• Power Distribution: Control of circuit breakers, switchgear, and power monitoring equipment in substations
• Material Handling: Control of conveyor belts, sorting machines, and lifting equipment in logistics centers
4. Installation & Maintenance
Installation: Mount on EN 50022 DIN rail; Connect external 24 V DC power supply; Wire load to relay terminals (distinguish NO/NC); Connect to Advant Controller 31 backplane; Configure output type and parameters via Control Builder Software; Test relay switching and communication status.
Maintenance: Daily - Check power and status LEDs (Power: Green, Run: Green, Fault: Red); Weekly - Inspect terminal connections and load operation; Annual - Clean dust, verify isolation performance, and update module firmware.
Safety Notes: Cut off power before wiring; Use ESD protection during module handling; Follow ABB safety guidelines for high - voltage load connection.
Technical Document | XO08R2 1SBP260109R1001 | ABB Advant Controller 31 Relay Output Extension Module
