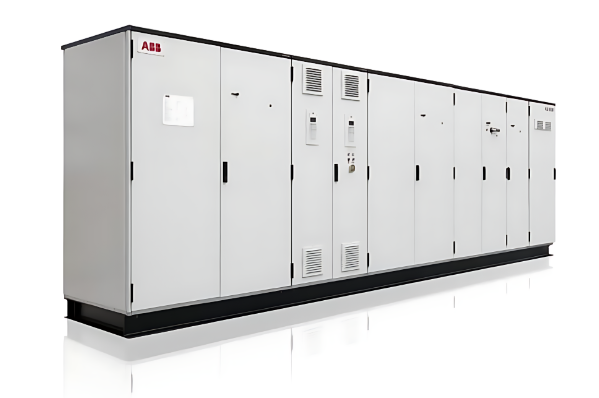

Medium-voltage AC drive ACS6000 medium-voltage drive

                                                                                                                                                               5 MW - 36 MW, 2.3 - 3.3 kV provides customers with the required modular design and reliability

Description of the Medium Voltage Transmission System in ABB ACS 6000 3BHS212794E01

The ABB ACS 6000 3BHS212794E01 is a medium-voltage inverter specifically designed for high-power motors (3-36MW). It adopts a modular architecture and IGCT semiconductor technology.

The core advantages are as follows:<br>1. Four-quadrant operation capability: Equipped with an active rectifier unit (ARU), it enables smooth switching of motor forward and reverse rotations, reducing grid harmonics (in accordance with IEC 61000-2-4 standards),

and minimizing interference to other factory equipment;<br>2. Full-speed high power factor: Through line voltage regulation technology, the power factor remains stable at 0.95 (diode rectification) or 1.0 (active rectification) throughout the entire speed range,

reducing grid losses and saving 10%-15% of electricity annually;<br>3. High reliability: The closed-loop water-cooling system (WCU) provides stable heat dissipation for the core power components, suitable for ambient temperatures ranging from 0 to 40°C,

and offers options for IP32/IP42/IP54 protection levels to meet the requirements of harsh environments such as mines and chemical plants;<br>4.

Precise control: Based on the DTC control platform, the torque response speed is 50% faster than traditional inverters, enabling precise control of high-precision equipment such as rolling mills and mine hoists, reducing the defect rate of products.

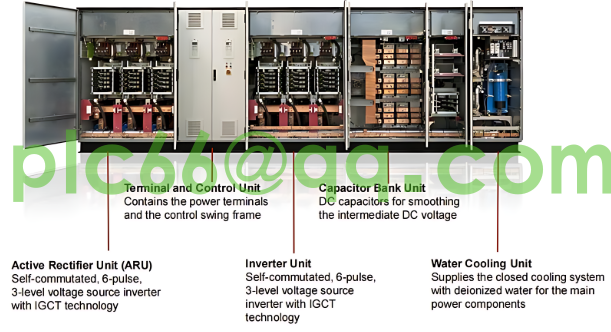

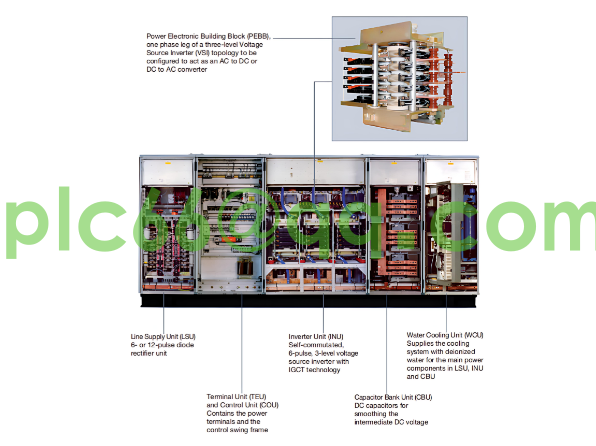

The drive has a flexible modular design with standard and optional cabinet units. Each cabinet unit is dedicated to a specific function.

1) Active rectifier unit (ARU): Self-commutated, 6-pulse, 3-level voltage source inverter with IGCT technology

2) Drive control panel for local operation: Keypad with multi-language display, main supply on/off push buttons, and emergency-off push button

3) Inverter unit (INU): Self-commutated, 6-pulse, 3-level voltage source inverter with IGCT technology

 4) Capacitor bank unit (CBU): DC capacitors for smoothing the intermediate DC voltage

5) Water cooling unit (WCU): Supplies deionized water for cooling the main power components

6) Terminal unit (TEU) and control unit (COU): Contains the power terminals and the control swing frame

7) Braking chopper unit (BCU), resistor braking unit (RBU) or voltage limiter unit (VLU): Optional cabinet units

8) Excitation unit (EXU): Optional cabinet unit that supplies a synchronous motor with excitation

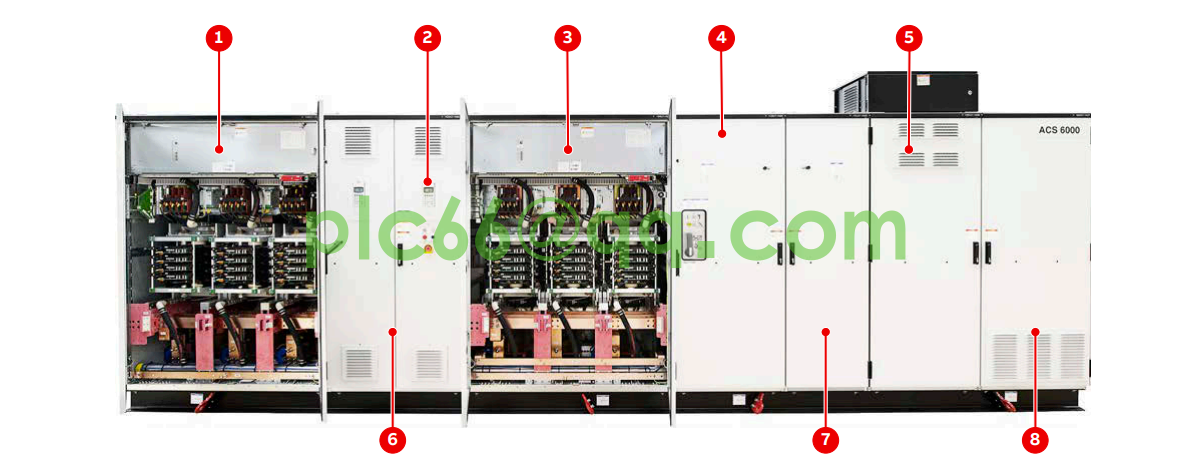

ACS6000 cabinet units

Standard cabinet units                                    ----- Optional cabinet units

– Active rectifier unit (ARU)                                                    ----- Input reactor unit (IRU)

– Inverter unit (INU)                                                                  ------Input filter unit (IFU)

– Line supply unit (LSU)                                                         -----Voltage limiter unit (VLU)

– Capacitor bank unit (CBU)                                               ------Resistor braking unit (RBU)

– Terminal unit (TEU)                                                            ------Braking chopper unit (BCU)

– Control unit (COU)                                                               -----Excitation unit (EXU)

– Water cooling unit (WCU)                                                ------Customer interface unit (CIU)

ACS6000 Technical Specifications Input

Input configuration

6-, 12- or 24- pulse diode rectifier

6-, 12- or 18- pulse diode rectifier

Input voltage

6-pulse diode rectifier: 3300 V

12-pulse and 24-pulse diode rectifier: 1725 V

6-, 12- and 18-pulse active rectifier: 3160 V

Input voltage fluctuation range

± 10%, no capacity reduction

+15/-30, with capacity reduction output

Input frequency 50 / 60 Hz

Input frequency fluctuation range

± 5%

Input power factor

Diode rectifier: > 0.95

Active rectifier: Standard 1.0, Options: Adjustable type

Input harmonics

Compliant with IEC 61000-2-4 and IEEE 519

Auxiliary voltage

Control (optional): 110, 220 VDC or 110 – 240 VAC 50 / 60 Hz

Auxiliary: 380 – 690 VAC 50 / 60 Hz, 3-phase

Output

Output power: 3000 - 36000 kW

Output voltage: 2.3, 3.3 kV

Output frequency: 0 - 75 Hz

Motor types: Induction motor, synchronous motor, and permanent magnet synchronous motor

Frequency converter efficiency: > 98%

Mechanical: Exterior protection grade

Standard configuration: IP32

Optional: IP42 and IP54

Cable entry

Top / Bottom Environment

Altitude: 0 - 2000 meters (higher in reduced capacity conditions)

Ambient temperature: 0 - 40 °C (higher in reduced capacity conditions)

External cooling water temperature: 5 - 32 °C (higher in reduced capacity conditions)

Noise: < 75 dBA

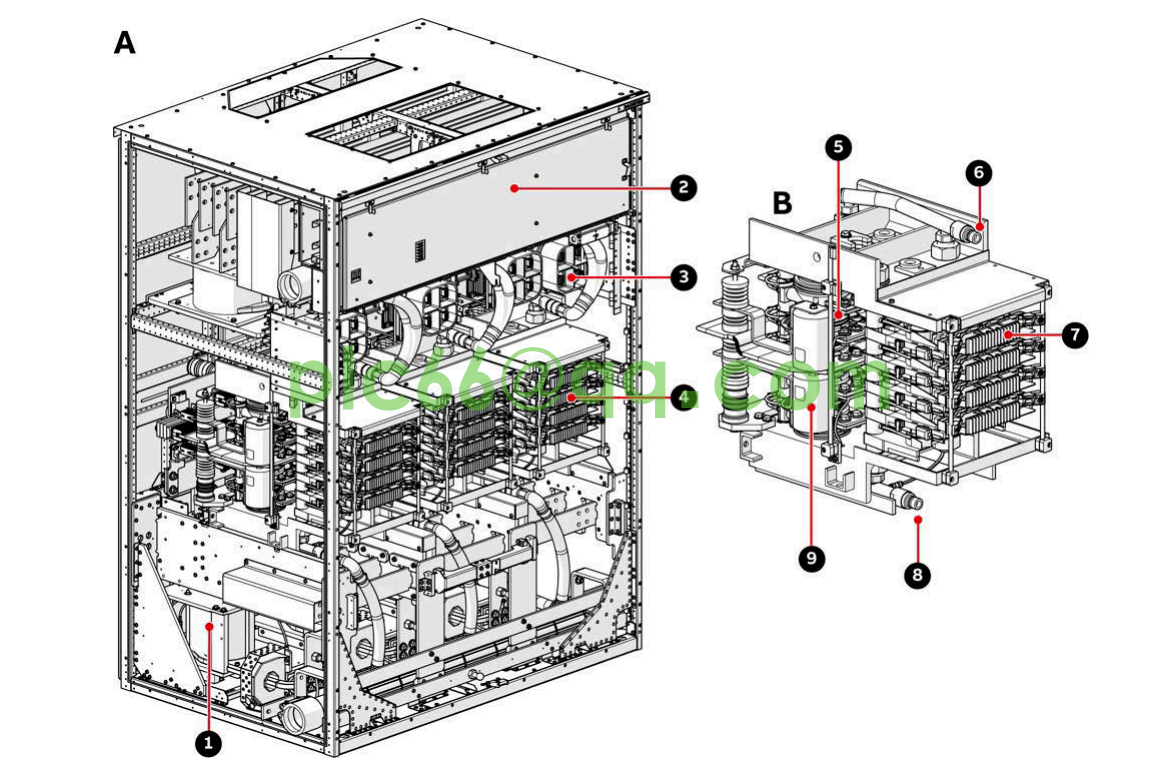

Phase module

Consists of integrated gate-commutated thyristors (IGCTs), diodes and clamp capacitors. The phase modules are identical in construction for all power ratings.

However, the types of semiconductors vary depending on the power rating. For this reason, it is not possible to mix phase modules for different power ratings in one unit.

1) EMC filter

2) Control interface

3) IPS

4) Phase module

5) Diode 6) Coolant outlet

7) IGCT

8) Coolant inlet

9) Clamp capacitor

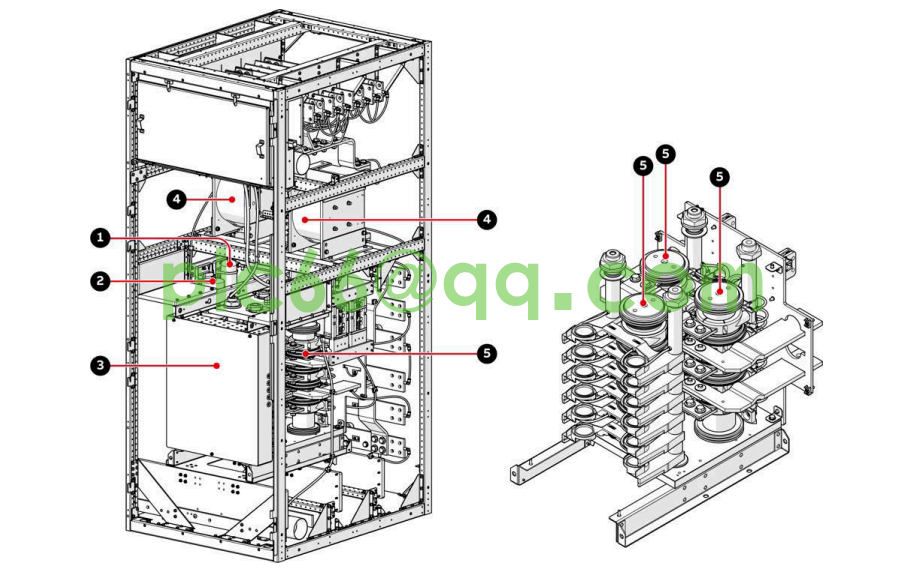

12-pulse diode rectifier

Snubber circuit Limits the rate of the voltage rise (dv/dt) across the diodes and the crowbar thyristors. di/dt limiting reactors Define the current rise in the thyristor crowbar.

Thyristor crowbar Protection circuit that activates when a short-circuit occurs. By applying protection firing, the thyristor crowbar short-circuits the rectifier to prevent further damage of the drive.

1) Snubber resistor

2) Snubber capacitor

3) Rectifier monitoring unit

4) di/dt limiting reactors

5) Diode stacks

ABB ACS 6000 3BHS212794E01 Medium-voltage frequency converter   The entire set of units

Air-cooled excitation unit, brushed and brushless excitation 3BHS299399E01

Main circuit breaker 3BHS125149 E60

ARU - Main Transformer 3BHS356582E01

ABB MVD ACS transformer 3BHS356582E01

ABB MVD ACS motor 3bhs824803e01

Motor 3BHS824804 E01

ABB MVD ACS high-performance motor 3BHS824805 E01

ABB MVD ACS high-speed motor 3BHS824806E01

Power cable 3BHS125090E01

Power cable 3BHS542290 E01

Auxiliary power supply and control cable 3BHS813742E01

Voltage transformer 3BHS125393 E01

Emergency switch and stop mode and prevention of operation 3BHS196243 E01

The ACS6000/ACS6080 label is placed at 3BHS544773 E01

The coating specifications are ACS1000, ACS2000, ACS5000, ACS6000、ACS6080

af100 Fieldbus - NAFA-01 Installation and startup 3BFE58919837

DCS800 driver 3ADW000193R0801

Emergency stop/stop mode and prevention of operation and safety torque off 3BHS196243

Modbus TCP-NETA-21 Remote Monitoring Tool 3AUA0000096939

Installation and startup of Modbus RTU-NMB-01 3AFY58919772

Profibus-nppa-12 Installation and Startup Guide 3BFE64341588

S800 I/O Beginner 3BSE020923

S800 I/O module and terminal unit 3BSE020924

ACS5000, ACS6000 and ACS6080 water-cooled units WCU800

ACS5000, ACS6000 and ACS6080 water-cooled units WCU1400

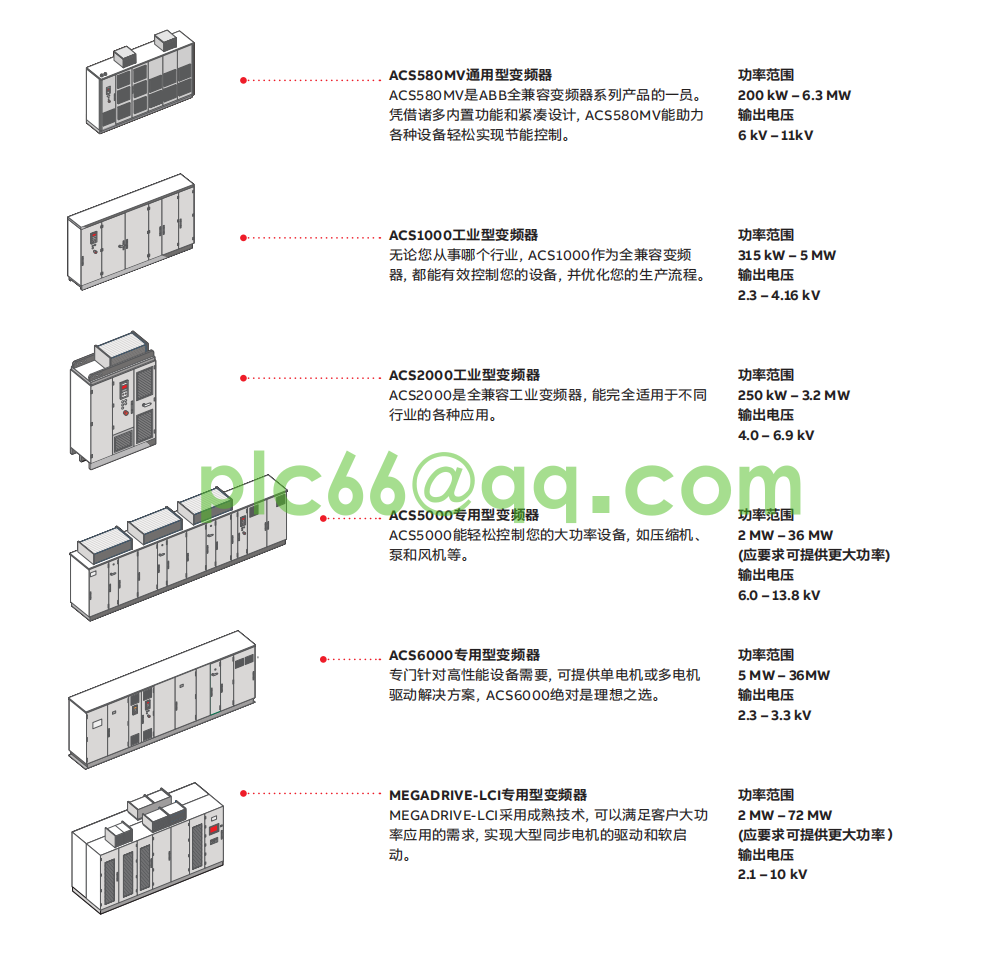

ABB Medium Voltage Drive Product Series

Application fields

Cement, mines, mine hoists, conveyor belts, mills and crushers

Ships: propellers, pumps and compressors; chemicals, oil and natural gas

• Pumps, compressors, extruders, mixers and fans

Other applications

Test benches, wind tunnels, grid simulators and shore power supply

Metallurgy: rolling mills, winding machines, pumps and fans; power generation

• Fans, pumps; water supply
