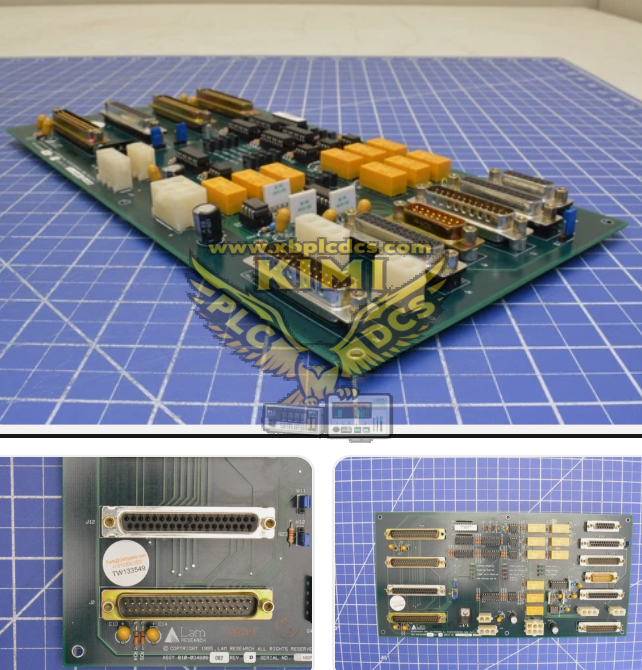

Lam Research 810-034808-002 Turbo RF Interlock PCB Assembly

Product Description
810-034808-002 is a Turbo RF Interlock printed circuit board assembly manufactured by Lam Research, specially designed for Lam plasma etch semiconductor wafer processing tools. This safety interlock control board monitors the working status of turbo pump and RF power supply subsystems. It implements hardware interlock protection to cut off RF power when abnormal vacuum or pump faults are detected, preventing chamber damage and unsafe operating conditions. Fully assembled with components, the PCB is produced with strict ESD control and factory functional burn-in test. It is mounted inside the etcher control cabinet and used as OEM spare replacement part for semiconductor fab production tools.

Key Functions

• Real-time status monitoring of turbo molecular pump and RF generator subsystems
• Hardware safety interlock circuit, emergency RF power cutoff under fault conditions
• Vacuum pressure signal acquisition and interlock threshold judgment
• Digital fault signal feedback and alarm reporting to the main tool controller
• ESD protection and anti-vibration design to meet cleanroom fab operating requirements
• Standard rack slot installation inside Lam plasma etcher chassis
• Pre-assembled PCB assembly for direct swap during on-site maintenance

Application Scenarios

• Lam Research plasma etching wafer processing semiconductor equipment
• Semiconductor cleanroom fab equipment maintenance and spare parts replacement
• Turbo pump and RF power safety interlock protection subsystem
• Fab tool refurbishment, upgrade and spare inventory backup

FAQ

Q: Who manufactures 810-034808-002?
A: Lam Research, USA semiconductor equipment OEM.

Q: What is the full name of this PCB?
A: Turbo RF Interlock PCB Assembly.

Q: What is the core purpose of this board?
A: Monitor turbo pump and RF system status and execute hardware interlock protection for chamber safety.
