FOXBORO 2AX-ALM-AR Product Brief Description

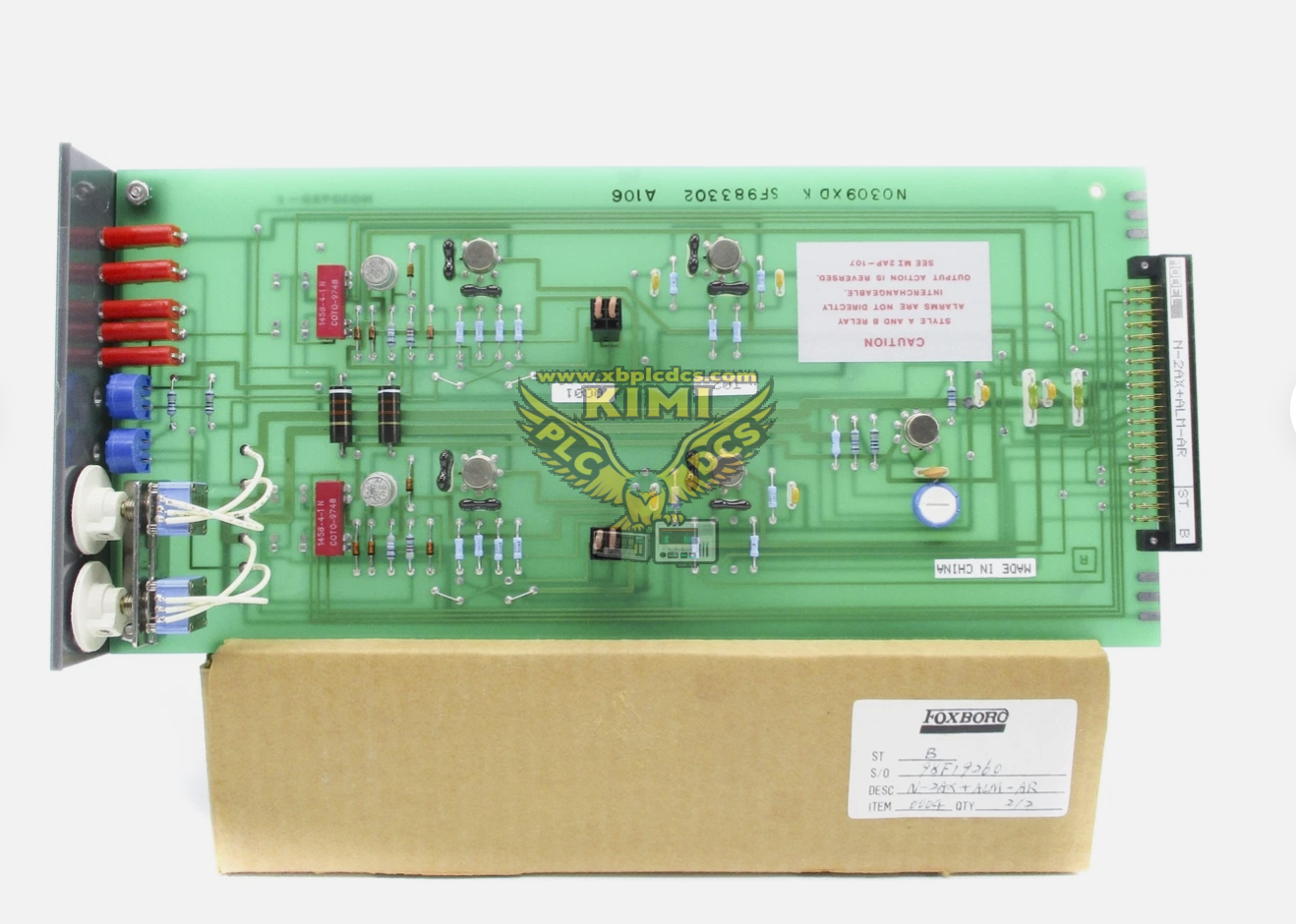

The FOXBORO 2AX-ALM-AR is a dual absolute alarm relay module for Foxboro I/A Series legacy DCS system. It monitors analog process variables and provides two independent absolute alarm relay outputs. When measured values exceed predefined setpoints, the module activates relay contacts to drive local alarms or trigger interlock actions. It is a plug-in backplane card designed for stable alarm handling in continuous process control environments.

Product Features

• Dual independent absolute alarm channels with separate setpoint configuration
• Relay contact outputs for external alarm annunciator and interlock circuits
• Accepts analog process input signal for temperature, pressure, flow and level monitoring
• Plug-in rack mount design, easy installation and replacement on backplane
• Robust industrial circuit design, stable performance under process plant conditions
• Built-in status indication for alarm trigger and module health status

Application Scenarios

• Petrochemical and chemical plant DCS process alarm monitoring
• Oil & gas processing unit high/low limit alarm and annunciator control
• Power plant boiler auxiliary parameter alarm and warning system
• Water treatment and pulp & paper process variable limit protection
• Legacy Foxboro I/A Series system spare replacement and retrofit projects
