GE 323A2374P3 Display Mini-Termina Origina New In Stock
- Part number：323A2374P3
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
Product: GE 323A2374P3 Display Mini-Terminal – Mark V Turbine Local Operator HMI
General Electric 323A2374P3 Mini Terminal | Local Handheld/Panel Mount Operator Interface for Speedtronic Mark V Gas & Steam Turbine Control System
323A2374P3 is an original OEM mini operator terminal produced by General Electric exclusively for the legacy Speedtronic Mark V turbine control platform. It is a compact integrated LCD + membrane keypad human-machine interface, serving as on-site local operation and debugging terminal for gas turbines, steam turbines and generator excitation systems. It connects to Mark V main control rack via dedicated multi-core cable and plug connector, enabling operators to view real-time unit operating parameters, alarm logs, adjust control setpoints, execute startup/shutdown commands and complete offline equipment troubleshooting without relying on central HMI workstations.
Core Technical Specifications
- Part Number: 323A2374P3 | Internal Model: GEN450B-003 | Brand: General Electric | Platform: Speedtronic Mark V
- Display Screen: 2-line × 40-character monochrome industrial LCD, high contrast for dim cabinet environment viewing
- Keypad Layout: Full membrane touch-sensitive panel, 4 rows of multi-function keys with SHIFT secondary function switching
- Key Set: F1–F20 function keys, up/down scroll, numeric 0–9, CLEAR, DELETE, ENTER, MORE/LESS, RAISE/LOWER adjustment keys
- Connection Interface: Dedicated multi-pin plug cable, fixed wiring along the long side of the terminal housing
- Mounting Method: Screw fixed panel mounting or portable handheld use with cable extension
- Power Supply: Bus-powered from Mark V control rack, no separate external power adapter required
- Operating Temperature: 0°C ~ +60°C | Storage Temperature: -40°C ~ +85°C
- Protection Grade: Front panel dustproof membrane overlay, internal PCB conformal coating for anti-moisture & corrosion
- Origin: Made in USA | Net Weight: Approx. 0.45kg, compact lightweight plastic housing
- Certifications: CE, UL industrial power generation EMC anti-interference compliance
Main Functional Features
- Local real-time data monitoring: Display turbine speed, load, temperature, vibration, valve position, pressure and all critical analog/digital operating values
- On-site parameter modification: Adjust governor setpoint, PID gain, alarm threshold, protection trip value directly on the terminal
- Unit operation control: Execute local start, stop, load adjust, test and reset fault alarm commands
- Fault diagnosis & log query: Browse historical alarm records, sensor fault codes and communication abnormal information for rapid troubleshooting
- Dual-function key design with SHIFT key, greatly expands operation functions without increasing panel size
- Plug-and-play bus connection, hot-pluggable under non-trip operating status for temporary on-site maintenance
- Fully compatible with all Mark V core boards (DS200CPU, DS200ADPAG1, DS200CDBAG1 series)
- Compact small footprint, suitable for narrow cabinet installation or portable use during unit overhaul inspection
Application Industries
- Combined Cycle & Thermal Power Plant: Mark V gas/steam turbine main control cabinet local operation terminal
- Oil & Gas Industry: Onshore gathering station and offshore platform turbine generator on-site debugging interface
- Industrial Cogeneration Station: Reciprocating engine generator set local parameter adjustment equipment
- Hydropower Station: Large generator EX2100 excitation system on-site maintenance operation terminal
- Equipment Retrofit & Spare Parts Replacement: Original spare HMI terminal for aging Mark V turbine control systems

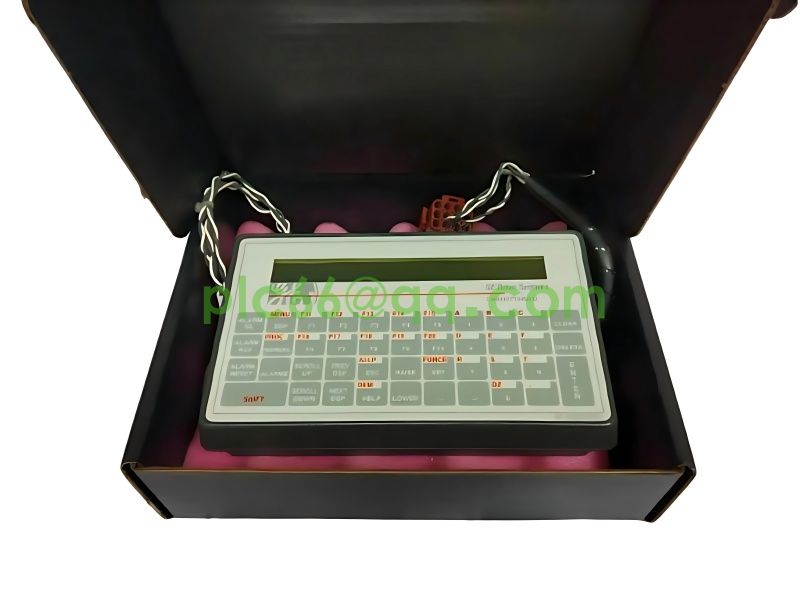

Product Picture
