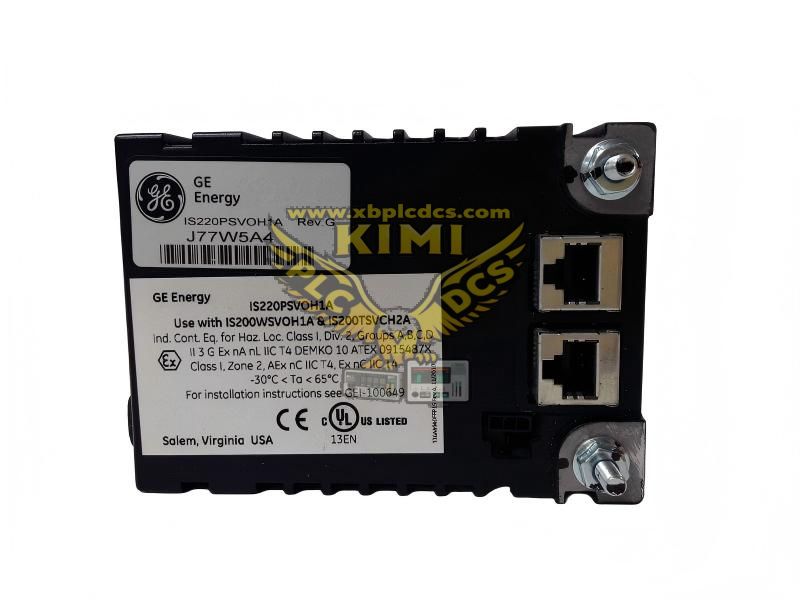

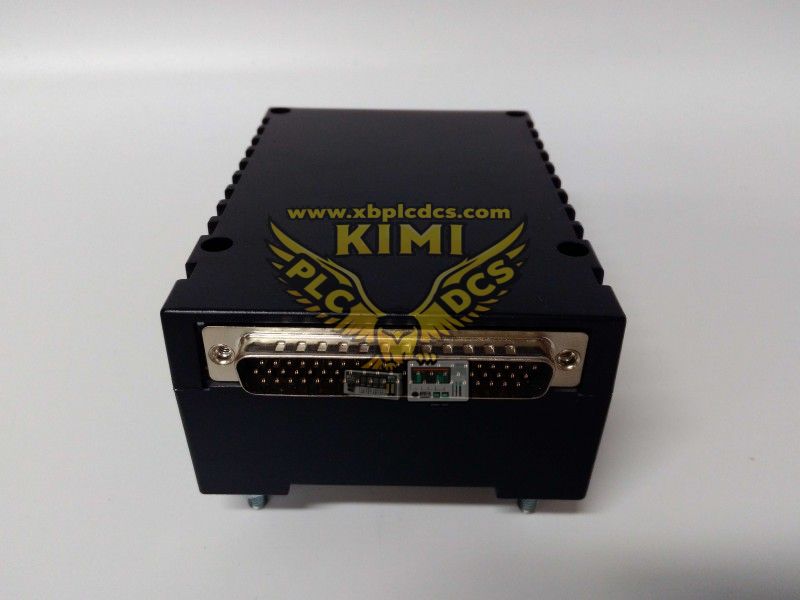

GE IS220PSVOH1A is a dedicated PSVO servo control I/O pack designed exclusively for GE Mark VI and Mark VIe Speedtronic turbine distributed control platforms. It serves as the core interface between the system’s high-speed I/O Ethernet backplane and TSVO servo terminal boards, delivering precise closed-loop drive signals to hydraulic turbine servo valves. The module supports two independent high-speed servo position loops with microsecond-level control response to regulate fuel valves, steam admission valves, bypass dampers and auxiliary actuators on gas and steam turbines. Equipped with dual redundant 10/100Mbps industrial Ethernet ports, it realizes fault-tolerant communication with UCS processor controllers to avoid single network failure shutdown risks. The unit adopts ruggedized industrial PCB with conformal coating, with an operating temperature range of -20°C ~ +60°C, meeting strict power plant EMC and vibration resistance standards. It is powered by 24VDC rack supply and integrates high-resolution analog feedback acquisition circuits for LVDT position sensors mounted on servo actuators. Front panel multi-color LED arrays display power status, Ethernet link health, servo loop running state and hardware fault codes for rapid on-site troubleshooting. This module supports hot standby redundant pairing, enabling bumpless switchover between primary and backup PSVO packs to maintain uninterrupted turbine control during component faults.

• Dual independent servo closed-loop control channels for driving hydraulic turbine servo valves and collecting LVDT position feedback signals
• High-speed deterministic control algorithm execution with microsecond scan cycle to ensure ultra-precise valve position regulation for turbine speed and load control
• Dual redundant 10/100Mbps Ethernet communication interface to exchange setpoint commands and position feedback data with Mark VIe UCS controllers
• Full LVDT sensor signal conditioning, amplification and A/D conversion to convert mechanical valve position into digital values for closed-loop calculation
• Support for hot standby redundant configuration; seamless automatic switchover without valve jitter or turbine load fluctuation when primary module fails
• Comprehensive multi-layer self-diagnosis: Ethernet communication loss, LVDT open/short circuit, servo drive overload, over-temperature and internal circuit fault detection
• Configurable fail-safe output mode: hold current valve position or drive valve to predefined safe shutdown position upon communication loss or module failure
• Front panel LED status indication for power supply, Ethernet link, servo channel active status and hardware fault alarm signals
• Standard backplane installation design compatible with all Mark VIe control racks, matched with TSVO terminal boards for field servo valve wiring connection
• Built-in over-current, short-circuit and reverse polarity protection for each servo drive channel to prevent permanent damage to module and hydraulic actuators

• Real-time fault event timestamp recording, uploading abnormal servo loop logs to HMI and historian servers for post-failure analysis of turbine trips

• Combined Cycle Gas Turbine Power Plants: Fuel gas control valve, inlet guide vane (IGV) and exhaust bypass damper precision position control
• Steam Turbine Generating Units: Main steam stop valve, governor control valve, reheater bypass valve and extraction steam regulating actuator control
• Thermal Power Plant Auxiliary Turbines: Feedwater pump turbine, blower turbine and small auxiliary turbine servo loop regulation systems
• Offshore Oil & Gas Turbine Generators: Gas turbine speed control and fuel valve adjustment for offshore platform power supply units
• Industrial Cogeneration Facilities: Waste heat recovery steam turbine and industrial gas turbine load & speed closed-loop control racks
• Petrochemical Plant Drive Turbines: Compressor drive steam/gas turbine fuel and flow control valve servo management
• Power Plant DCS Retrofit Projects: Spare replacement servo control pack for aging Mark VI / Mark VIe turbine control cabinets

• Hydrogen Energy & New Power Generation: Small gas turbine servo valve control for distributed clean energy power stations

• Q: IS220PSVOH1A fault LED lights red after power-up, servo valves cannot receive position control signals?
  A: Check loose backplane insertion, abnormal 24VDC rack power supply, damaged TSVO terminal board wiring, mismatched firmware versions with UCS controller or internal drive circuit failure; re-seat the module and inspect field LVDT cable short faults.
• Q: Single servo channel reports LVDT open-circuit alarm while the physical position sensor is intact?
  A: Inspect loose wiring terminals on TSVO board, broken LVDT signal cable cores, incorrect sensor wiring polarity or excessive cable resistance exceeding module detection threshold.
• Q: Can IS220PSVOH1A modules be hot swapped while the Mark VIe control rack remains powered on?
  A: Only standby redundant backup PSVO packs support online hot swap. The active primary module must not be removed under power; full rack power shutdown is required for maintenance of single non-redundant modules to avoid turbine valve misoperation.
• Q: Turbine valve fluctuates violently with unstable position feedback during normal operation?
  A: Enable digital filtering for LVDT signals in control logic; separate servo signal cables from high-power motor and transformer wiring to reduce EMI interference; tighten loose terminal contacts and check aging LVDT sensors.
• Q: Redundant switchover fails when primary IS220PSVOH1A triggers hardware fault, backup module does not take over control?
  A: Verify dual Ethernet cable connection integrity between two PSVO packs; fully synchronize firmware revisions of primary and backup units; reconfigure redundancy parameters in Mark VIe Toolbox software and perform offline switchover test.
• Q: Servo valve drifts to fully closed position immediately after Ethernet communication loss with controller?
  A: Modify channel fail-safe logic settings in the turbine control project; adjust the fail mode to hold last valid valve position instead of shutdown position for non-emergency operation scenarios.

• Q: Is GE IS220PSVOH1A still mass-produced for brand-new turbine control projects?
  A: This legacy Mark VIe PSVO module has been discontinued by GE. Only original surplus, refurbished and certified used spare parts are available for maintenance of existing turbine units; GE recommends modern Mark VIeS next-generation servo packs for new greenfield power plant construction.
