EL3010-IPA | EL3000 Series Continuous Gas Analyzer--KIMI

Part number：EL3000 EL3001, EL3002, EL3004
Product Origin：Sweden
HS CODE：8708299000
Warehouse: Spot
Warranty： 365 days
Quality: Original module
Condition： New
Shipping method: Courier delivery

Contact person: LI MING
Contact number: +86 18059884790
WeChat：18059884790
E-mail: plc66@qq.com

Product Description

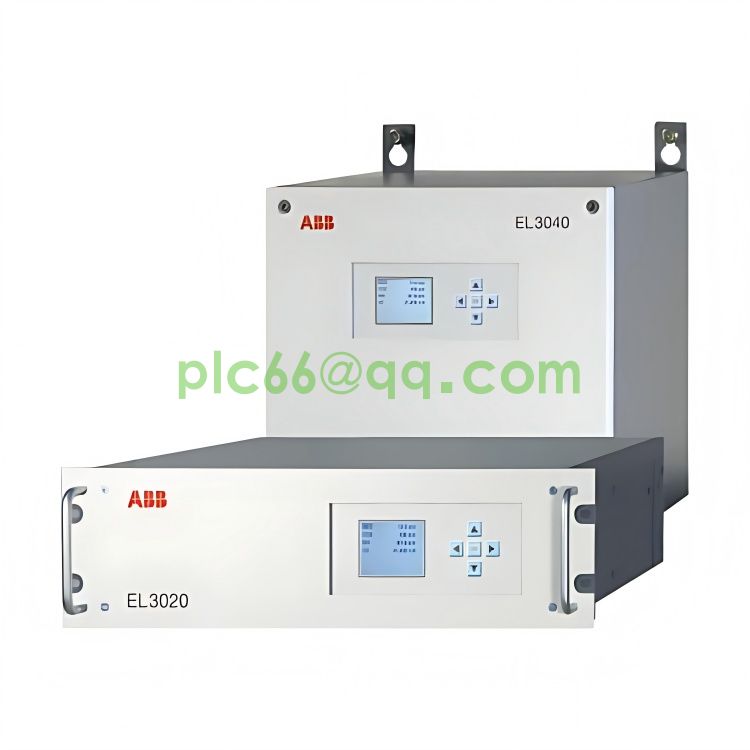

ABB EL3010-IPA | EL3000 Series Continuous Gas Analyzer (NDIR)

Real-Time Industrial Gas Monitoring for Emissions Compliance & Process Optimization

1. Product Overview

The ABB EL3010-IPA is a high-performance continuous gas analyzer from the EL3000 Series, integrating Non-Dispersive Infrared (NDIR) sensor technology for real-time, accurate measurement of gas concentrations in industrial environments. Designed to monitor up to five gas components simultaneously (via dual-module configuration), it features a robust IP65-purifiable enclosure for wall-mount or 19" rack-mount installation, ensuring reliability in harsh industrial conditions. Equipped with intuitive five-button operation, built-in web server, and comprehensive self-diagnostic functions, it supports remote monitoring, data logging, and compliance reporting (EN 14181 QAL3 compliant). The analyzer operates on 100-240 VAC power, with multiple communication outputs (4-20 mA, Modbus TCP/RTU, Ethernet) for seamless integration with DCS, SCADA, and emission monitoring systems, making it ideal for power generation, chemical processing, and environmental monitoring applications.

EL3000 EL3010-IPA (2).png

Key Specifications

• Manufacturer: ABB

• Model: EL3010-IPA (EL3000 Series)

• Product Type: Continuous Gas Analyzer (NDIR Technology)

• Measurement Principle: Non-Dispersive Infrared (NDIR) Absorption

• Measurable Gases: CO, CO₂, CH₄, N₂O, and other infrared-active gases

• Simultaneous Channels: Up to 5 (with dual-module configuration)

• Accuracy: ±1% of reading (typical), ±2% full scale (maximum)

• Response Time: T90 < 15 seconds (standard)

• Power Supply: 100-240 VAC, 50/60 Hz, 80 VA Max

• Outputs: 4-20 mA analog (4 channels), Modbus TCP/RTU, Ethernet (10/100 Base-T)

• Enclosure: IP65 (purifiable) for wall-mount; 19" rack-mount (IP20)

• Operating Temperature: 0°C to +45°C (Industrial Grade)

• Certifications: CE, EN 14181 QAL3, IEC 61010-1

EL3000 EL3010-IPA (1).png

2. Core Features

• NDIR Precision: Advanced infrared technology for stable, drift-resistant measurement of infrared-active gases.

• Multi-Gas Monitoring: Up to 5 gas components with dual-module configuration for flexible application coverage.

• Robust Enclosure: IP65 purifiable housing for wall-mount; 19" rack-mount option for system integration.

• Remote Access: Built-in web server for browser-based monitoring, configuration, and data retrieval.

• Compliance Ready: EN 14181 QAL3 compliant with internal reporting for emission certification.

• Comprehensive Diagnostics: Self-check functions for sensor health, flow, and system status to minimize downtime.

• Flexible Communication: 4-20 mA, Modbus, and Ethernet outputs for DCS/SCADA integration.

EL3000 EL3010-IPA (5).png

3. Typical Applications

• Power Generation: Flue gas monitoring in coal, gas, and biomass power plants for NOₓ, SO₂, CO₂ compliance.

• Chemical Processing: Process gas analysis in refineries, petrochemicals, and specialty chemical manufacturing.

• Environmental Monitoring: Stack emission monitoring for industrial facilities to meet local/global regulations.

• Waste Incineration: Continuous monitoring of toxic gases (CO, HCl, HF) in incineration plant exhaust streams.

• Cement Industry: Kiln gas analysis for process optimization and emission control (CO, O₂, NOₓ).

• Metals Processing: Furnace and converter gas monitoring for efficiency and environmental compliance.

EL3000 EL3010-IPA (4).png

4. Installation & Maintenance

Installation: Mount in a well-ventilated area (IP65 for outdoor/wall-mount; 19" rack for indoor). Connect sample gas line (with particulate filter, dryer, and flow controller), power (100-240 VAC), and communication cables (4-20 mA, Ethernet). Configure gas components, measurement ranges, and alarm thresholds via keypad or web interface; perform zero/span calibration before operation.

Maintenance: Replace sample filters every 3-6 months; calibrate zero/span quarterly (or per local regulations). Check gas flow rate (0.5-2 L/min) and sensor drift; update firmware via web server. Clean optical components annually to maintain accuracy; verify communication links and data logging functions regularly.

Fault Diagnosis: Use self-diagnostic tools to check for sensor errors, flow issues, or power anomalies. Monitor web server dashboards for real-time alerts; verify analog outputs with a multimeter; inspect sample lines for leaks or blockages; check for error codes in system logs for quick troubleshooting.

EL3000 EL3001

You can click on (ABB ) to visit the official website for more product information.

If you want to purchase, you can contact YMGK's official customer service

For the relevant manual, please click to download and learn about the specific parameters

EL3000 EL3001, EL3002, EL3004 analysis meter(图2) LL_MAGNOS28-EN_B.pdf

Technical Document | ABB EL3010-IPA | EL3000 Series Continuous Gas Analyzer
