Product Description

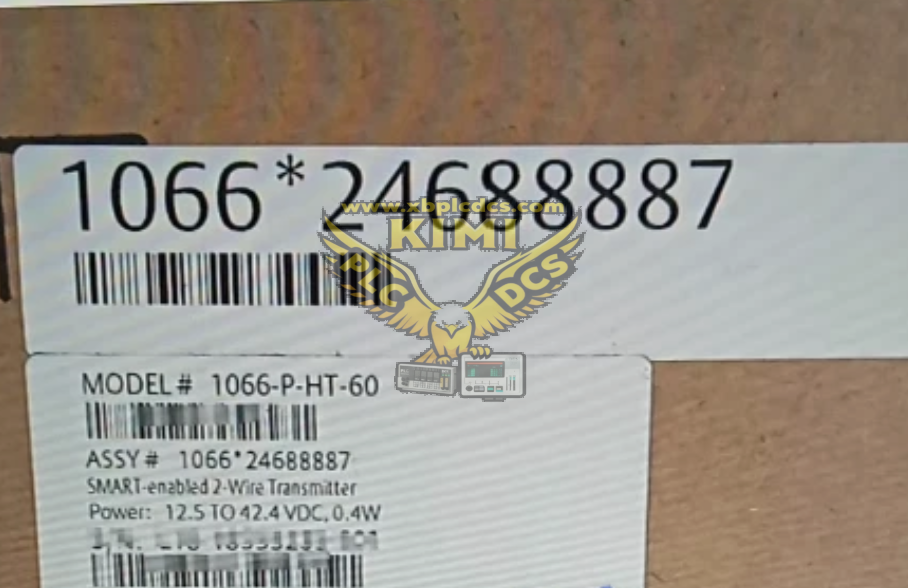

The 1066-P-HT-60 is Emerson Rosemount 1066 series single-channel liquid analytical transmitter for pH measurement. It adopts 1/2 DIN panel mount design, polycarbonate enclosure with NEMA 4X / IP66 protection rating. It supports HART digital communication, works with pH or ORP sensors, converts sensor analog signal into standard 4-20mA loop output for DCS/PLC system. The unit features graphic LCD display for on-site reading, parameter configuration and calibration.

Key Functions

• Continuous pH or ORP measurement for liquid process media
• Built-in temperature compensation for accurate pH reading
• HART protocol communication for remote configuration & diagnostics
• 4-20mA analog loop output, loop-powered design
• On-board calibration, sensor diagnostics and fault alarm
• Local graphic display for measurement, status and setup menu

Application Scenarios

Applied in water treatment, chemical plants, food & beverage, power plant boiler water, pharmaceutical manufacturing. Used to monitor pH value in process water, wastewater, reaction tank and online liquid quality analysis.

Common Issues & Troubleshooting

• Unstable pH reading: Dirty pH electrode, cable leakage or grounding interference
• No display: Check 4-20mA loop power supply and wiring connection
• Cannot calibrate: Electrode aging, reference electrolyte depletion
• HART communication failure: Insufficient loop resistance or cable damage
• Alarm error: Broken sensor wire, moisture ingress inside transmitter housing
