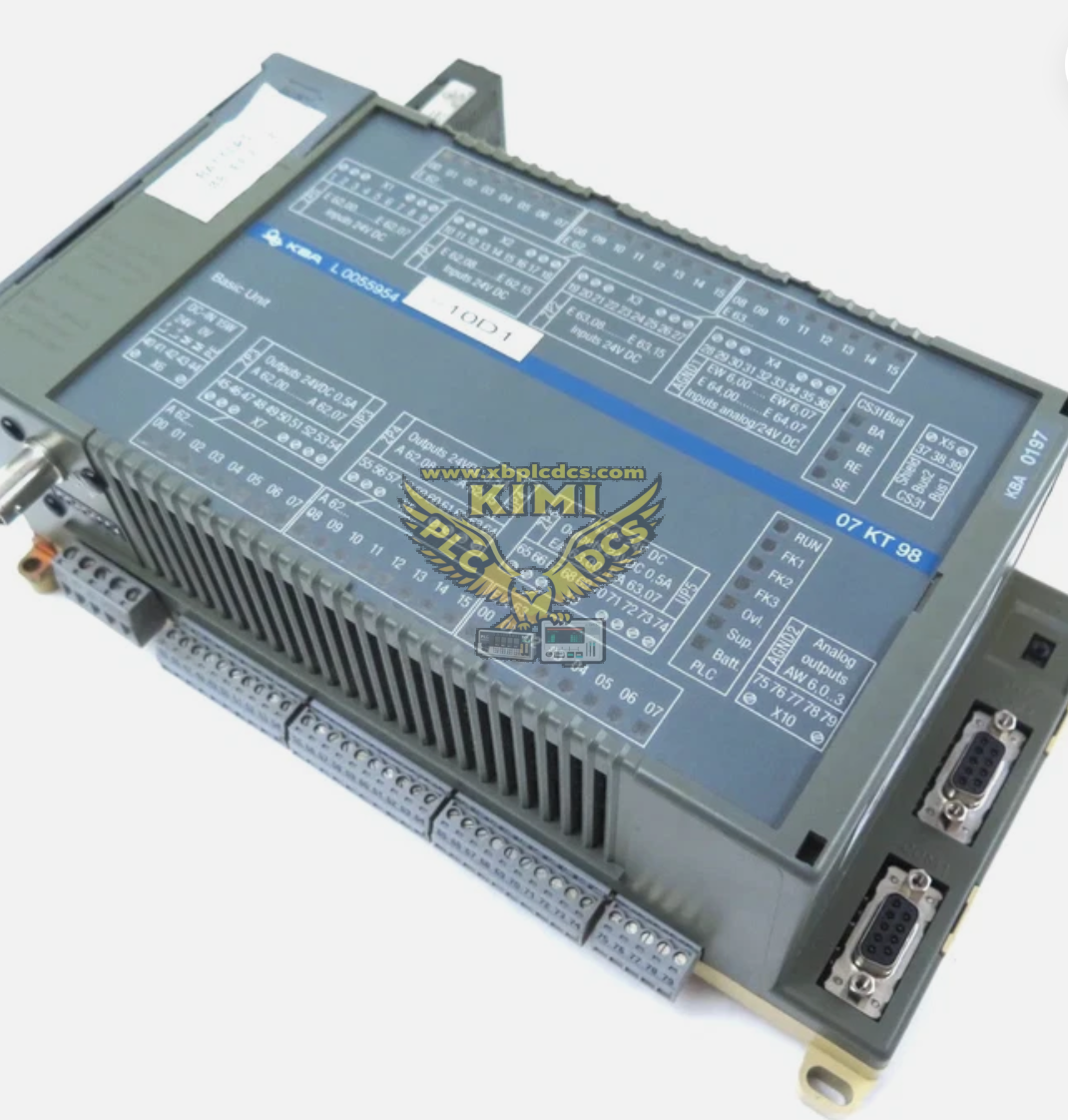

ABB 07KT98G (GJR5253100R3262) Advant Controller AC31 High-End PLC CPU Unit

Product Description

07KT98G, part number GJR5253100R3262, is the flagship high-performance CPU basic unit for ABB Advant Controller AC31‑90 series PLC platform. It features a powerful 32‑bit processor, large flash program memory, integrated mixed digital/analog local I/O, CS31 RS‑485 fieldbus master, dual RS232 serial ports, SmartMedia card slot and optional onboard Ethernet. Powered by 24 VDC, DIN‑rail TS35 mounting, IP20 cabinet protection. It serves as CS31 bus master to drive distributed remote I/O slaves including 07AC91, 07DI92, 07DO92, and supports optional fieldbus expansion modules (Profibus‑DP, ARCNET, Ethernet). Widely used for complex legacy industrial automation, semiconductor fab abatement scrubbers, wastewater skids and gas cabinet control systems.

Key Functions

• 1MB flash program memory, large user data memory; supports Ladder Diagram and Structured Text programming via ABB 907 AC1131 engineering software
• On‑board I/O: 24‑channel opto‑isolated 24VDC digital input; 16‑channel 0.5A transistor digital output; 8 multi‑mode analog inputs; 4 analog outputs
• Analog input configurable: ±10 V, 0‑20 mA, 4‑20 mA, Pt100 RTD; analog output: ±10 V, 0‑20 mA, 4‑20 mA, 12‑bit resolution
• CS31 (RS‑485) system bus master at 187.5 kBaud; supports up to 61 CS31 slave nodes, maximum bus length 500m, expandable with repeaters
• Dual RS232 COM ports for programming, Modbus‑RTU master/slave and custom ASCII host communication; optional 10/100Mbps Ethernet for Modbus TCP
• SmartMedia card slot for program backup, data logging and firmware upgrade; lithium backup battery retains retentive variables and real‑time clock during power loss
• Two 50kHz high‑speed counter channels, built‑in PID function blocks; front panel LED indicators: Power, RUN, STOP, System Fault, CS31 bus error and channel diagnostics
• Operating temperature: 0 °C ~ +55 °C; reverse polarity protection, EMC compliant for industrial cabinet environments; power consumption approx 10W

Application Scenarios

• ABB AC31‑90 distributed automation systems, flagship CS31 master controller for complex control sequences
• Semiconductor factory auxiliary equipment: waste gas abatement scrubber, wastewater treatment skid, gas cabinet interlock and process sequencing control
• Paper, metallurgy, power, packaging and material handling machinery requiring large program capacity and mixed analog/digital I/O
• Legacy system spare part replacement for installed AC31‑90 systems, compatible with full range of CS31 remote I/O modules

Common Issues & FAQ

• CS31 bus fault / remote I/O stations drop off: Confirm 120Ω termination resistors at both physical bus ends; check for CS31 station address conflicts; inspect shielded RS‑485 cable routing, grounding and cable length limits; verify stable 24VDC supply to slave I/O modules.
• Program loss / RTC reset after power cycle: Replace aged lithium backup battery; confirm application program saved to Flash‑EPROM; use SmartMedia card for full program backup and recovery.
• Cannot connect programming tool: Check RS232 programming cable, RUN/STOP switch status; match baud rate, parity and protocol settings in 907 AC1131 software.
• ERR LED steady on: Read PLC diagnostic buffer; typical causes include program runtime fault, CS31 bus failure, I/O short circuit, or expansion module hardware fault.
• Refurbished‑unit note: After replacement, download original user program, configure CS31 bus node addresses; perform local I/O loop‑back test, full CS31 slave scan and complete equipment sequence test before commissioning. Inspect lithium battery condition before production use and verify compatibility with existing expansion modules.
