ABB 086345-504 (BA 41904) INFI90 DCS Analog Power Supply Board

Product Description

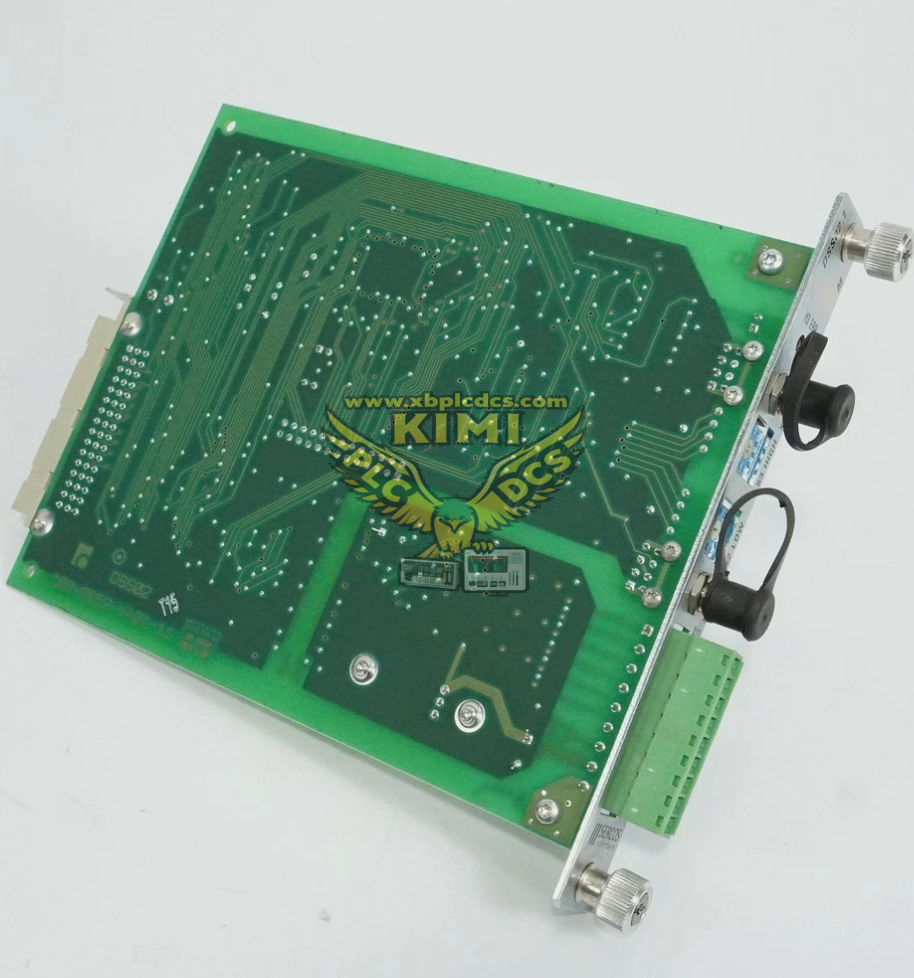

086345-504 with marking BA 41904 is ABB Bailey INFI90 DCS rack-mounted analog power supply board. This legacy card is dedicated to providing clean, regulated DC power for INFI90 analog input / output modules (AI/AO). It is a critical rack backplane accessory board, designed to supply stabilized power to 4-20mA, 0-10V analog signal loops, isolate noise and suppress transients. It is a discontinued original Bailey ABB spare part, widely used in power plants, chemical and petrochemical process DCS systems.

Key Functions

• Provide highly regulated, low-noise DC power supply for all analog I/O modules within the INFI90 rack
• Built-in multi-stage EMI filtering circuit to reduce power ripple, preventing analog signal drift and measurement fluctuation
• Galvanic isolation between rack main power and analog sensor loops, block common-mode ground loop interference
• Integrated hardware protection: over-voltage, over-current, short-circuit and over-temperature protection, auto cut-off on fault
• Front panel LED indicators for power OK and fault alarm status, simple on-site diagnostics
• Standard card form factor for INFI90 rack slot, hot-swap capable for maintenance without full system shutdown
• Designed for continuous 24/7 operation in heavy industrial process control environments

Application Scenarios

• ABB Bailey INFI90 distributed control system (DCS) analog I/O rack power supply
• Thermal power, chemical, oil & gas process control systems for pressure, flow, temperature analog signal acquisition
• Legacy INFI90 system maintenance, spare part replacement for existing installed base
• Process plants requiring stable 4-20mA transmitter loop power

Common Issues & FAQ

• Analog signal drifting / unstable 4-20mA readings: Check board output voltage ripple; inspect aging filter capacitors; verify load current of all analog loops on the rack; check board for thermal degradation.
• Power fault LED illuminated: Measure input supply voltage to the board; check for shorted analog field wiring causing overcurrent; inspect for failed internal semiconductors or blown fuses on the board.
• Intermittent loss of analog measurements: Inspect backplane connector pins for oxidation; check board mounting; verify temperature inside control cabinet, overheating causes intermittent dropout.
• Refurbished / replacement unit note: After installation, verify output voltage and ripple amplitude, test all analog channel loops in the rack. Confirm compatible firmware and backplane revision with existing INFI90 system. Perform full signal loop test before returning DCS rack to online service. Capacitor rework is often recommended for refurbished units due to age-related electrolyte drying.
