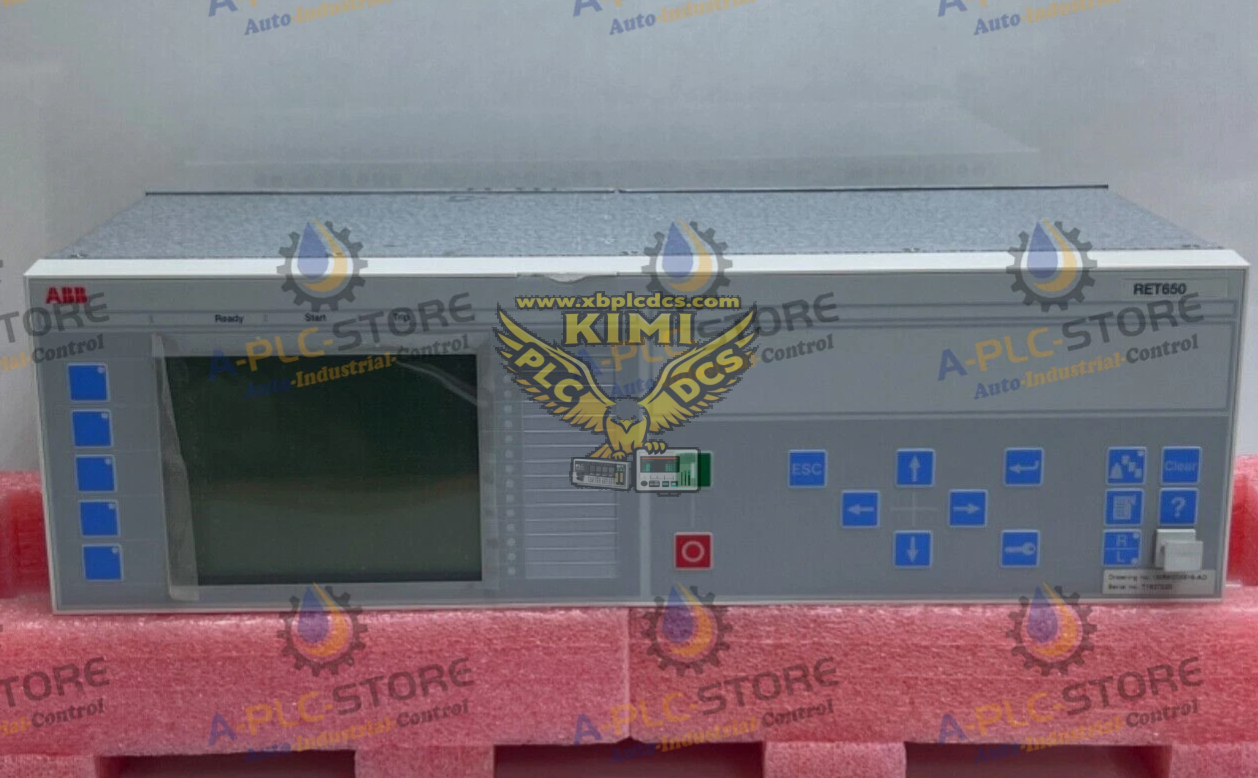

Hitachi‑Energy(ABB) RET650 1MRK008516‑BA Product Description

The RET650, order reference 1MRK008516‑BA, is a transformer‑and‑reactor‑protection IED from the Relion® 650‑series. It delivers main‑and‑backup‑protection, measurement, supervision and bay‑control functions for two‑winding / three‑winding power transformers, autotransformers, generator‑transformer blocks and shunt reactors in transmission‑and‑distribution substations. The suffix‑BA defines hardware‑variant, I/O‑configuration and firmware baseline. It supports IEC 61850 including GOOSE, MMS and process‑bus sampled‑values; configuration and parameter‑setting are completed by PCM600 engineering tool before commissioning.

Product Features

• Core main‑protection: transformer differential protection with 2nd‑harmonic inrush restraint, 5th‑harmonic over‑excitation restraint, auto CT‑ratio‑matching and phase‑shift compensation, sensitive turn‑to‑turn winding‑fault detection.
• Complementary protection elements: low‑impedance restricted earth‑fault, phase‑/neutral‑overcurrent, thermal‑overload, over‑voltage / under‑voltage, over‑excitation and breaker‑failure backup protection.
• Full IEC 61850 compliance: GOOSE inter‑IED signalling, MMS client‑server, 9‑2LE process‑bus sampled‑values, HSR ring‑redundancy, IEEE‑1588 precision time‑synchronization; also supports Modbus, DNP3 protocols.
• Front‑panel graphical HMI with multi‑page tri‑colour status‑LEDs, configurable push‑buttons, local breaker‑control, fault‑event buffer and disturbance‑recorder storage for post‑fault analysis.
• Modular plug‑in hardware design; configurable binary‑input, binary‑output and analogue‑input modules; wide‑range DC auxiliary‑power‑supply; 19‑inch rack‑mount, IP20 protection grade.
• 1MRK008516‑BA is a specific order variant; hardware, I/O layout and firmware baseline must match site project‑specification; cannot freely swap with other‑suffix RET650 variants without validation.
• Parameter download via PCM600 software; factory pre‑loads base firmware, but application‑specific protection‑settings, logic‑schemes and IEC‑61850 datasets are blank on delivery.

Application Scenarios

• Utility‑grid HV‑substation main‑power‑transformer primary‑and‑backup‑protection bays
• Power‑plant generator‑transformer‑unit protection for thermal, combined‑cycle and renewable power stations
• Heavy‑industry, metallurgy, petrochemical large‑power‑transformer and shunt‑reactor protection‑control cabinets
• Digital‑substation projects applying IEC 61850‑9‑2LE process‑bus and merging‑unit signal interfaces
• Retrofit‑replacement and spare‑part‑maintenance for existing Relion 650‑series transformer‑protection installations
• Autotransformer‑protection applications within transmission‑voltage‑level substation systems
