Bently Nevada 3500/15 AC and DC Power Supplies

Product Number:Bently Nevada 3500/15 AC and DC Power Supplies

Product Overview

The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one.

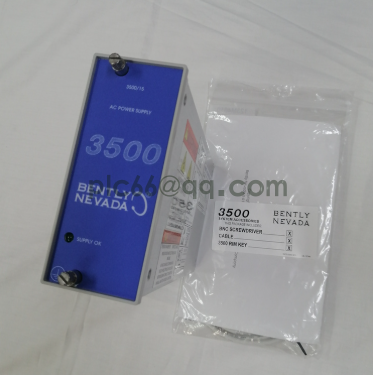

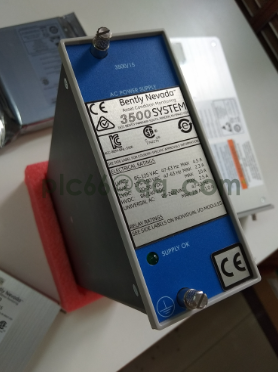

Bentley 3500/15-05-00-00 is a general-purpose AC power supply

Bentley 3500/15-05-00-00 is a general-purpose AC power supply, installed within the Bentley bently3500/05 frame for power supply. It is used for vibration monitoring of large and medium-sized rotating machinery such as steam turbines, compressors, fans, water pumps, coal mills, gearboxes, and motors.

Bentley 3500/15-05-00-00 is a general-purpose AC power supply installed within the Bentley 3500/05 frame. It is used for vibration monitoring of large and medium-sized rotating machinery such as steam turbines, compressors, fans, water pumps, coal mills, gearboxes, and motors, and is widely applied in many industries including steel, power, metallurgy, chemical engineering, and petrochemicals. The Bentley 3500/15 power module is a half-height module and must be installed in the leftmost slot of the Bentley 3500/05 frame. The 3500/05 frame can be equipped with one or two AC-AC or DC-DC power modules in any combination form. Each power module can supply power to the entire frame independently. If two power modules are installed, one is primary and the other is backup. When two power supplies are installed in one rack, the lower slot is used as the main power supply, and the other slot is located in the upper slot as the backup power supply. As long as the backup power module is installed, plugging and unplugging the main power module will not cause interruption to the operation of the frame. The 3500 power module accepts a wide range of input voltages and converts them into operating voltages acceptable to the 3500 module.

The 3500 monitoring system offers three types of power modules: 1. Ac power; 2. High-voltage direct current power supply 3. The general AC power supply and PIM (power input module) of the low-voltage DC power supply are incompatible with the traditional 3500 AC power supply, high-voltage AC PIM and low-voltage AC PIM. The high-voltage and low-voltage DC power supplies and PIM (power input module) are incompatible with the traditional 3500 high-voltage and low-voltage DC power supplies and PIM.

Bentley power Module 3500/15-AXX-BXX-CXX option description

A: Power supply type (upper slot)

05 General AC voltage AC power supply 85-260V

06 High-voltage direct current (DC) (88 to 140Vdc)

07 Low-voltage DC(20 to 30Vdc)

B: Power supply type (lower slot)

05 General AC voltage AC power supply 85-260V

06 High-voltage direct current (DC) (88 to 140Vdc)

07 Low-voltage DC(20 to 30Vdc)

C: Explosion-proof certification approval

00 None

CN China Explosion-proof Site Certification

For example: 3500/15-05-00-00 is a set of universal AC power supply (including 220VAC) including front and rear panels.

3500/15-05-05-00 are two sets of general-purpose AC power supplies (including 220VAC) with front and rear panels.

Spare parts

106M1079-01 3500/15 front board main board, universal AC power module

106M1081-01 3500/15 Rear panel power strip, universal AC power input module

114M5330-01 Low-voltage DC power supply

114M5335-01 Low-voltage DC module

127610-01 AC Power Module (Discontinued old model)

125840-01 High Voltage AC Power Input Module (PIM) (Discontinued old model)

125840-02 Low Voltage AC Power Input Module (PIM) (Discontinued old model)

This article is originally written by KIMI Xiaoming. Please bring the link www.xbplcdcs.com when reprinting
