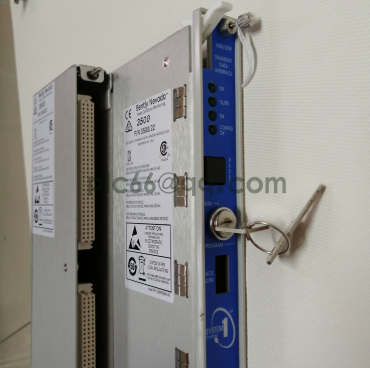

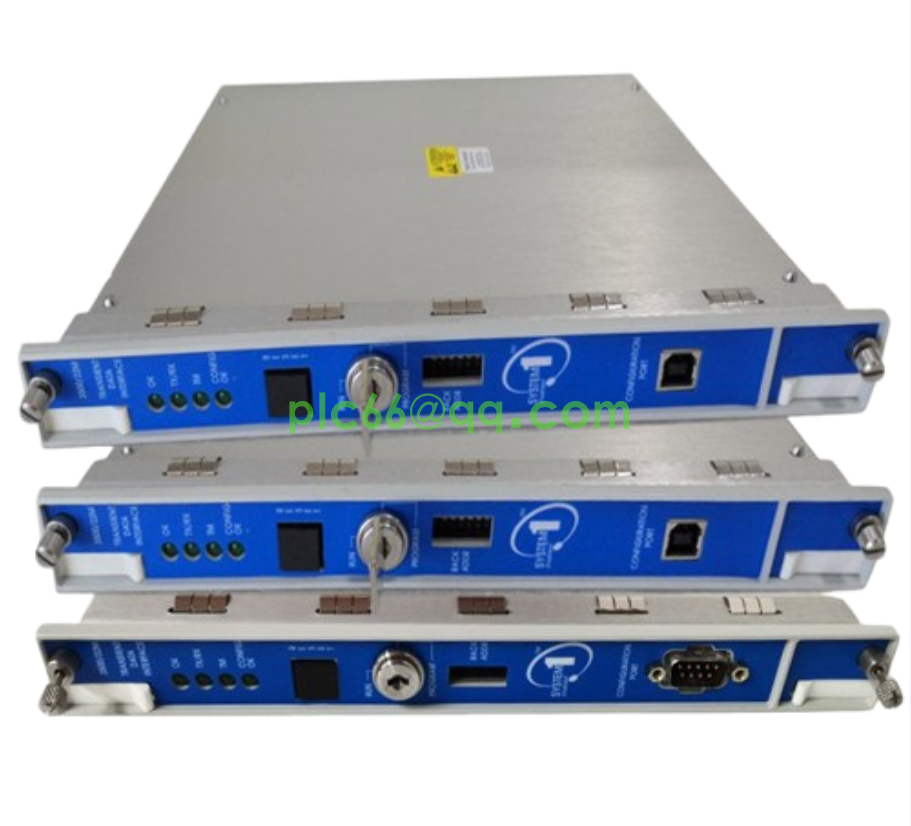

Bently Nevada 3500/22M Transient Data Interface Module

The 3500/22M Transient Data Interface (TDl) is the interfacebetween the 3500 monitoring system and compatiblesoftware (System 1 Condition Monitoring and Diagnosticsoftware and 3500 System Configuration software). The TDlcombines the function of a 3500/20 Rack Interface Module(RlM) with the data collection capability of a communicationprocessor such as TDXnet.

The Bently Nevada 3500/22 transient data interface, as a key device in the field of industrial monitoring, plays an important role in ensuring the stable operation of machinery and equipment.

It is the bridge between 3500 monitoring systems and compatible software such as System 1 condition monitoring and diagnostic software and 3500 system configuration software. Its main function is to work with M-series monitors (like 3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient dynamic (wavefo

rm) data. The data is transmitted to the host software at high speed and stably through Ethernet link, which is convenient for technicians to carry out remote monitoring and in-depth analysis.

The Bentley 3500/22M module is the transient Data Interface (TDI), which is the main interface for connecting the 3500 framework. It supports the Bentley Nevada proprietary communication protocol and is used for configuring the framework and retrieving mechanical information. TDI has two main functions: protecting system configuration and retrieving data for Bentley Nevada machine management systems.

The Bentley 3500/22M module is a transient data interface (TDI) that serves as the primary interface for connecting to the bently nevada3500 framework. It supports the Bentley Nevada proprietary communication protocol and is used for configuring the framework and retrieving mechanical information. TDI has two main functions: protecting system configuration and retrieving data for Bentley Nevada machine management systems. The bently nevada3500 Bentley module is used for vibration monitoring of large and medium-sized rotating machinery such as steam turbines, compressors, fans, water pumps, coal mills, gearboxes, and motors. It is widely applied in many industries including steel, power, metallurgy, chemical engineering, and petrochemicals.

Bentley 3500/22M TDI module and input/output module 3500/22-AXX-BXX-CXX selection method:

A: TDI module type

0 1 Standard (Standard Monitoring Application)

0 2TMR (Only used when triple module redundancy configuration is required)

B: Input/output module type

0 110 Base-T /100 Base-TX Ethernet input/output module

0 2100 Base-FX (Optical Fiber) Ethernet Input/Output Module

C: Approving authority 00 No 01CSA/NRTL/C

Bentley 3500/22M module spare parts:

288055-01 Standard Transient Data Interface Module

146031-01 10/100 Base T input/Output Module

146031-02 100 Base FX (Optical Fiber) Input/Output Module

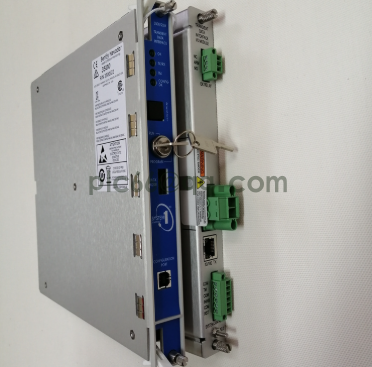

For example: Bentley module 3500/22M-01-01-00(Front panel 288055-01, back panel 146031-01)

The Bentley 3500/22M module must be placed in slot 1 of the Bentley 3500/05 frame (adjacent to the power module). Although TDI provides reliable functionality for the entire framework, it is not a component of the key monitoring channels. The operation of TDI does not affect the usual correct operation of the entire monitoring system.

Technical parameter

Power consumption: 10.5W.

Ethernet: Supports 10Base-T/100Base-TX Ethernet or 100Base-FX optical Ethernet.

Operating temperature: -30 ℃ to + 65 ℃.

Dimensions: 241.3 mm x 24.4mm x241.8 mm.

Weight: 0.82 kg (1.8 lb).
