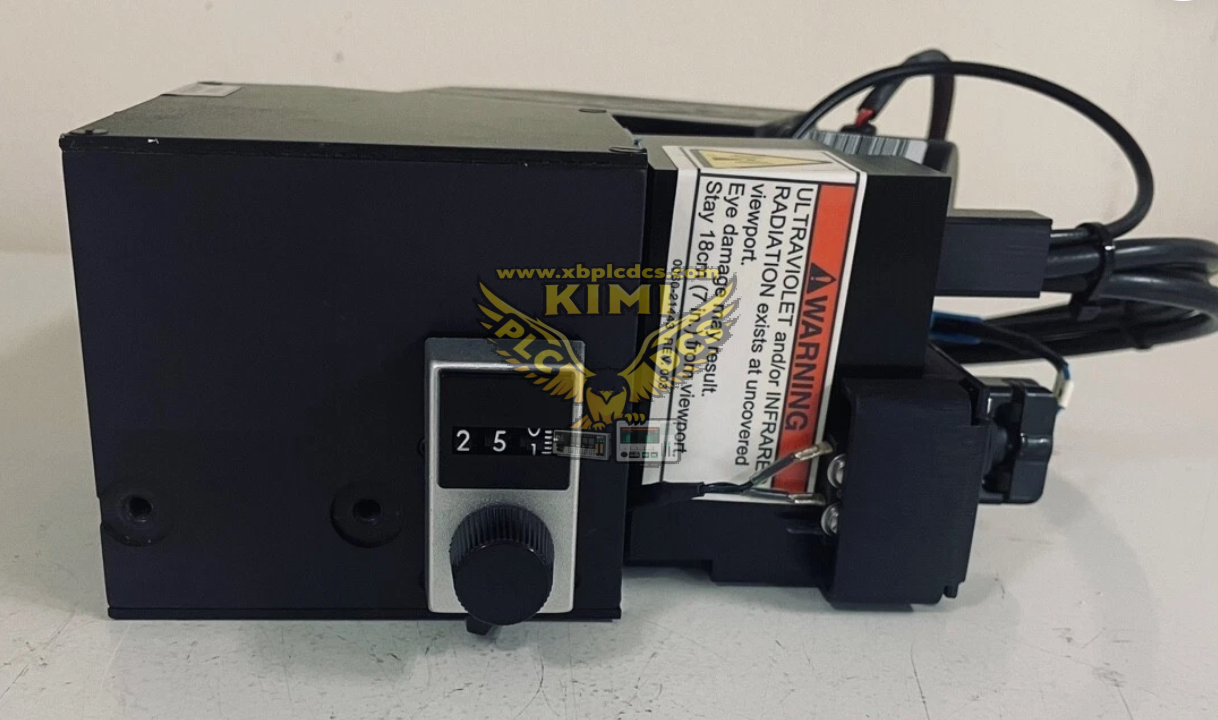

Applied Materials 0010-14157 Monochromator Assembly

Product Description

The 0010-14157 is a monochromator optical measurement assembly manufactured by Applied Materials for semiconductor wafer process endpoint detection. It is integrated into the vacuum processing chamber optical monitoring system, equipped with optical grating, photodetector, optical fiber coupling interface and precision mechanical adjustment structure. This component separates broadband light into discrete wavelengths and captures spectral signal changes during plasma etching or deposition processes. It adopts cleanroom-compatible construction with low particle emission, designed for continuous operation inside fab production tools. Available stock includes surplus and refurbished assemblies for maintenance and chamber rebuild of AMAT semiconductor process platforms.

Product Functions

• Split the collected plasma emission light into specific wavelength bands using grating spectroscopy principle for optical spectrum measurement
• Capture real-time spectral intensity variation to judge process endpoint for wafer etch or thin-film deposition processes
• Convert optical signals into digital electrical signals and transmit spectral data to the tool host controller
• Support multi-wavelength selection to match different process film materials and endpoint recipe requirements
• Precision optical alignment mechanism for fine tuning wavelength calibration and light signal intensity
• Built-in optical fault diagnosis to detect fiber breakage, light source loss and detector degradation
• Provide endpoint trigger signal to stop process automatically once target film layer removal or deposition is completed

Application Scenarios

• Plasma etch and PVD/CVD deposition endpoint monitoring on Applied Materials semiconductor wafer processing tools
• Spare replacement for failed 0010-14157 monochromator assemblies on production process chambers
• Preventive maintenance, optical recalibration and chamber overhaul projects in wafer fabrication factories
• Semiconductor process development and recipe qualification for thin film process control
• Spare inventory for semiconductor equipment service vendors and fabs running legacy AMAT process systems
• On-site repair for process chambers with endpoint detection failure or unstable spectral readings

Common Problems

• Weak optical signal: optical window contamination, fiber connector fouling or misalignment of internal grating components
• Endpoint detection drift: wavelength calibration offset caused by mechanical vibration and thermal expansion
• No spectral signal output: damaged photodetector, broken optical fiber or internal circuit board failure
• Slow response or missed endpoint: degraded detector sensitivity after long time plasma radiation exposure
• Mechanical adjustment failure: grating drive stuck or loose positioning screw leading to wavelength shift
• Intermittent signal fluctuation: unstable light coupling, EMI interference or temperature variation inside optical housing
• Refurbished unit risk: optical component aging, lower measurement precision and requiring full calibration before production use
