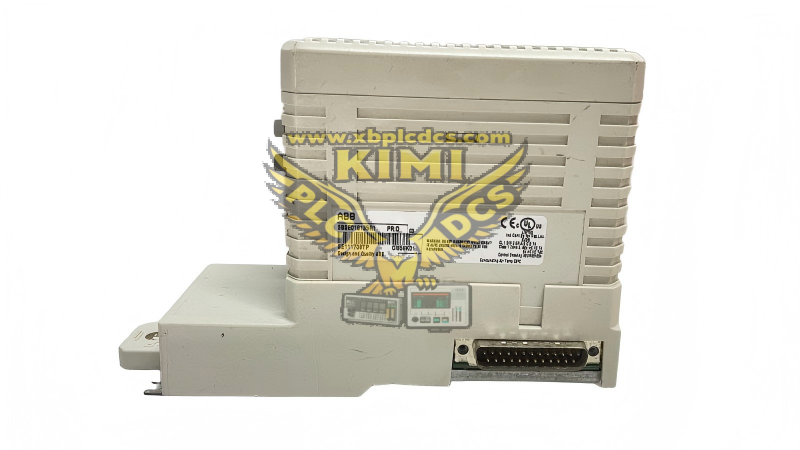

ABB CI858K01 3BSE018135R1 | DriveBus Interface Module for AC 800M

Connects up to 24 ABB Drives to AC 800M Controllers - Hot - Swap, 1 Mbps DriveBus, CEX - Bus Powered, IP20 Protection for Sectional Drive Applications

1. Product Overview

The ABB CI858K01 3BSE018135R1 is a specialized DriveBus interface module for the ABB AC 800M automation system, serving as a high - performance communication bridge between AC 800M controllers and ABB industrial drives in sectional drive applications like rolling mills and paper machines. It supports the DriveBus protocol with a 1 Mbps data rate, allowing a single module to connect up to 24 ABB drives, and an AC 800M controller to link a maximum of two CI858K01 modules for expanded drive connectivity. The module gets power from the AC 800M processor unit via the CEX - Bus, eliminating the need for external power, and offers hot - swap functionality for maintenance without system shutdown. With an operating temperature range of 0°C to +55°C, IP20 protection, and compliance with marine certifications (ABS, BV, DNV - GL, LR) and ISA 71.04 G3 corrosion protection, it delivers reliable, real - time communication for precise speed, torque, and position control of drives in harsh industrial settings, crucial for optimizing production efficiency and minimizing downtime in critical manufacturing processes.

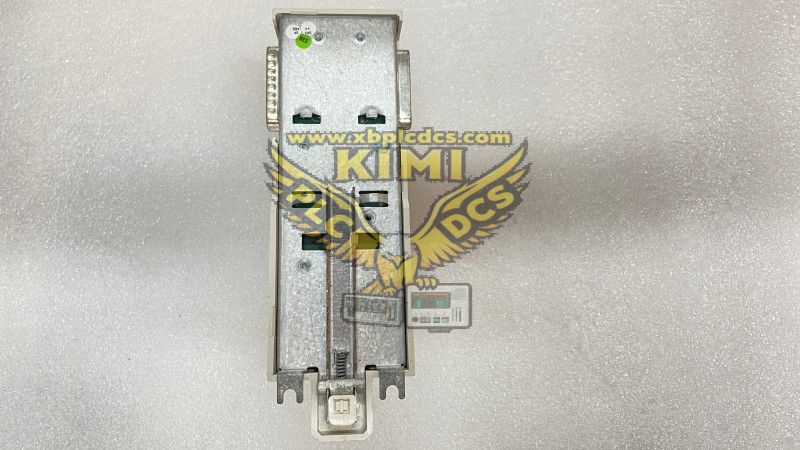

ABB CI858K01 3BSE018135R1 (2).png

Key Specifications

• Model: CI858K01 3BSE018135R1 (DriveBus Interface Module for ABB AC 800M System)

• Communication Protocol: DriveBus (Optimized for ABB Sectional Drive Applications)

• Data Rate: 1 Mbps (Max.) for Real - time Drive Control and Status Monitoring

• Max. Drive Connectivity: 24 ABB Drives per Module; 2 Modules Max. per AC 800M Controller

• Power Supply: CEX - Bus from AC 800M Processor Unit (No External Power Needed)

• Hot - Swap: Supported for DriveBus (Maintenance Without System Shutdown)

• Connector: 25 - Pin D - Sub (DB25) for DriveBus Field Wiring

• Operating Temperature: 0°C to +55°C (+32°F to +131°F); Storage: -40°C to +70°C (-40°F to +158°F)

• Dimensions: 115mm × 60mm × 25mm (Module); Net Weight: ~0.55kg (Including TP858 Baseplate)

• Certifications: CE, Marine (ABS, BV, DNV - GL, LR), ISA 71.04 G3 Corrosion Protection, IP20 (EN60529)

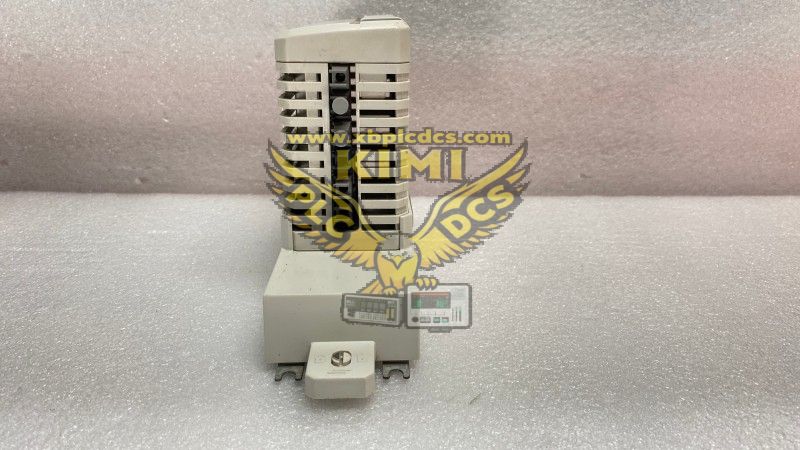

ABB CI858K01 3BSE018135R1 (5).png

2. Core Features

• DriveBus Optimization: Tailored for ABB Rolling Mill and Paper Machine Sectional Drive Control, Ensuring Synchronized Multi - Drive Operations.

• High - Density Drive Connectivity: 24 - Drive Capacity per Module Meets the Needs of Large - Scale Drive Systems.

• CEX - Bus Powering: Simplifies Installation and Reduces Wiring by Drawing Power from the AC 800M Processor.

• Hot - Swap Capability: Replace or Maintain the Module Without Stopping the System, Maximizing Production Uptime.

• Dual Module Expansion: One AC 800M Controller Can Connect Two CI858K01 Modules for Up to 48 Drives.

• Industrial - Grade Reliability: IP20 Protection, ISA 71.04 G3 Corrosion Resistance, and Marine Certifications for Harsh Environments.

• Real - time Communication: 1 Mbps DriveBus Rate Enables Fast Data Exchange for Precise Drive Control and Status Feedback.

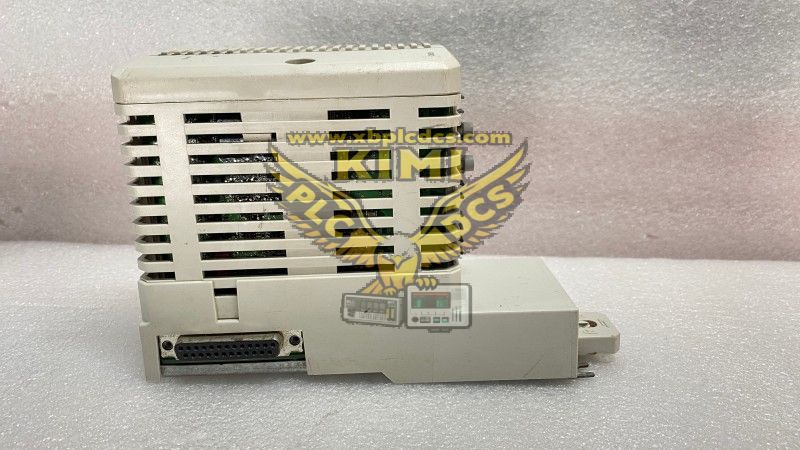

ABB CI858K01 3BSE018135R1 (4).png

YMGK Purchase Information

This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.

One-Stop Global Industrial Product Procurement

Sales Manager: KI MI

WeChat: 18059884790

WHATSAPP: +86 18059884790 (Click to add)

Email: plc66@qq.com

Global Inventory: 121 shared inventories worldwide, enabling direct procurement
from overseas warehouses for faster delivery.
Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
Customer Coverage: Serving clients across United States, Germany, Japan, South Korea,
United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands,
Switzerland, Sweden, Belgium, Austria, and Turkey.
Product Quality: All items are brand new and original. Spare parts include a 1-year warranty,
and all products are tested and certified.
Discounts: Contact us for bulk-order discounts. We also offer further price adjustments
if you receive lower quotes for identical products from other suppliers.

For additional inquiries, reach out to us at any time.

All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders.

3. Typical Applications

• Rolling Mills: Control of Multiple Drives for Strip Rolling, Ensuring Uniform Thickness and Tension via Synchronized DriveBus Communication.

• Paper Machines: Coordinate Speed and Tension of Sectional Drives (Forming, Press, Dryer Sections) for Consistent Paper Quality.

• Metal Processing: Drive Control for Extruders, Calendars, and Cut - to - Length Systems with Real - time Torque and Speed Adjustment.

• Pulp & Paper: Multi - Drive Coordination in Pulp Digester and Bleaching Line Operations.

• Marine Propulsion: Certified for Shipboard Drive Control Systems, Providing Reliable Communication in Maritime Environments.

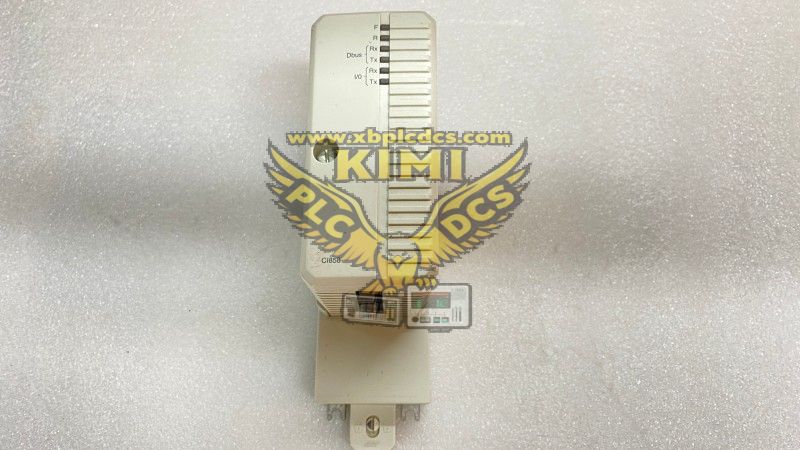

ABB CI858K01 3BSE018135R1 (3).png

4. Installation & Maintenance

Installation: Mount on TP858 Baseplate; Insert into AC 800M Controller CEX - Bus Slot; Connect DriveBus via DB25 Connector; No External Power Wiring Needed.

Configuration: Set Drive Addresses via Drive Parameters; Configure CI858K01 in Control Builder Plus; Assign DriveBus Communication Parameters (Baud Rate, Node Count).

Maintenance: Weekly: Check Status LEDs (Power, Communication, Fault) for Module Health. Quarterly: Inspect DB25 Connector for Loose Wires; Verify CEX - Bus Connection. Annual: Clean Module Vents; Update Firmware via AC 800M Service Port.

Fault Diagnosis: Communication Loss: Check DriveBus Wiring and Termination; Verify Drive Addresses. Power Failure: Confirm CEX - Bus Power from AC 800M Processor; Reseat Module in CEX - Bus Slot.
