Product Description

ABB PU512V2 3BUR001401R1 Real-Time Accelerator (RTA) Module (Advant MOD 300)

High-Speed Real-Time Processing for ABB Advant MOD 300 Distributed Control Systems

1. Product Overview

The ABB PU512V2 3BUR001401R1 is a Real-Time Accelerator (RTA) module belonging to the ABB Advant MOD 300 Distributed Control System (DCS), designed to enhance the real-time processing capabilities of Advant Stations (HP workstations with EISA slots) running MOD 300 software. It features a 32-bit RISC processor (100 MHz), 16 MB on-board RAM, and a high-speed EISA bus interface for seamless communication with the MOD 300 controller, accelerating control logic execution, data processing, and system response times for critical industrial processes. The module supports MOD 300 software exclusively, providing 16 MB of dedicated memory for real-time tasks, and is designed for EISA slot installation in legacy HP workstations, ensuring compatibility with existing MOD 300 systems. It has a compact form factor (152×25×51mm, ~0.5kg), plug-in EISA connector, and LED indicators for power and communication status, simplifying installation, integration, and troubleshooting. With a wide operating temperature range (-25°C to +70°C) and 5%–95% RH (non-condensing) humidity resistance, it operates reliably in harsh industrial environments, making it ideal for power generation, oil & gas, and petrochemical applications requiring high-speed real-time control and data processing.

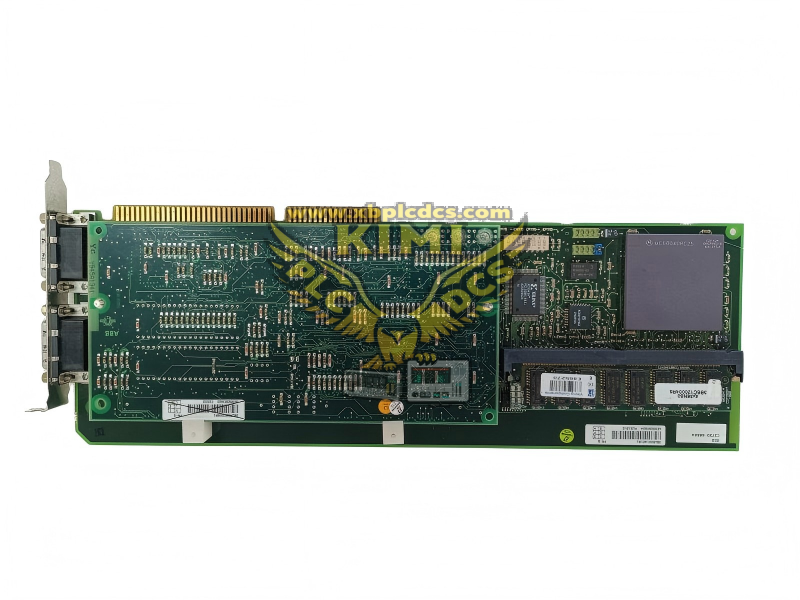

ABB PU512V2 3BUR001401R1 (1).png

Key Specifications

• Manufacturer: ABB Industrial Automation

• Model: PU512V2 (3BUR001401R1) - Real-Time Accelerator (RTA) Module

• System Compatibility: ABB Advant MOD 300 DCS, Advant Stations (HP workstations with EISA slots)

• Software Compatibility: MOD 300 Software Only (exclusive to MOD 300 systems)

• Processor: 32-bit RISC Processor, 100 MHz Clock Speed

• Memory: 16 MB On-Board RAM (dedicated to real-time tasks)

• Interface: EISA Bus (for connection to Advant Station motherboard)

• Indicators: Power (PWR), Communication (COM), Status (STS) LEDs

• Power Input: 5V DC (from EISA bus), Power Consumption ≤10W

• Dimensions: 152mm × 25mm × 51mm (6.0in × 1.0in × 2.0in), Weight: ~0.5kg (1lb)

• Operating Temperature: -25°C to +70°C, 5%–95% RH (non-condensing)

• Certifications: CE, UL 508, IEC 61010-1

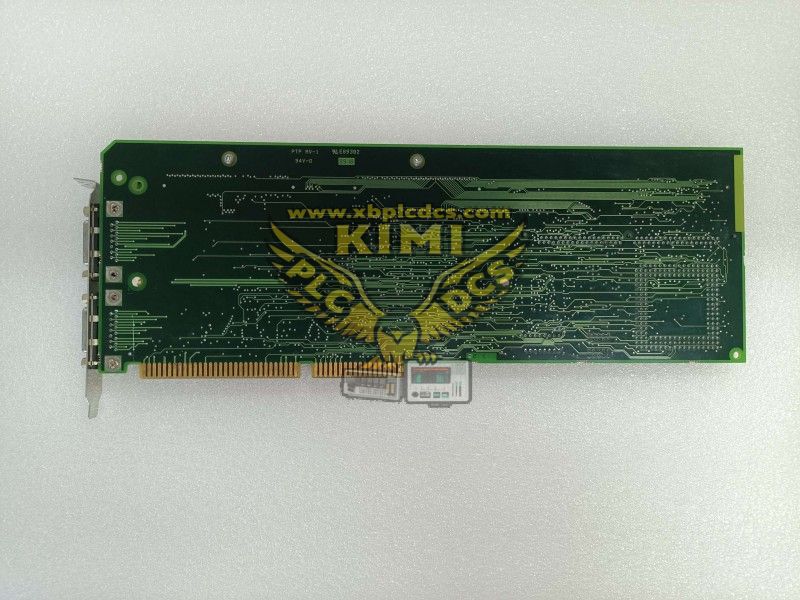

ABB PU512V2 3BUR001401R1 (6).png

2. Core Features

• Real-Time Acceleration: 100 MHz RISC processor & 16 MB RAM boost control logic execution speed by 3–5x.

• EISA Bus Integration: Seamless communication with Advant Station for low-latency data exchange.

• MOD 300 Optimization: Exclusive compatibility with MOD 300 software for maximum system performance.

• Status Monitoring: Power, communication, and status LEDs enable quick troubleshooting.

• Plug-and-Play Design: EISA slot installation simplifies integration into existing Advant Stations.

• Compact Form Factor: 152×25×51mm dimensions save space in industrial workstations.

• Robust Operation: Wide temperature range and humidity resistance for harsh industrial environments.

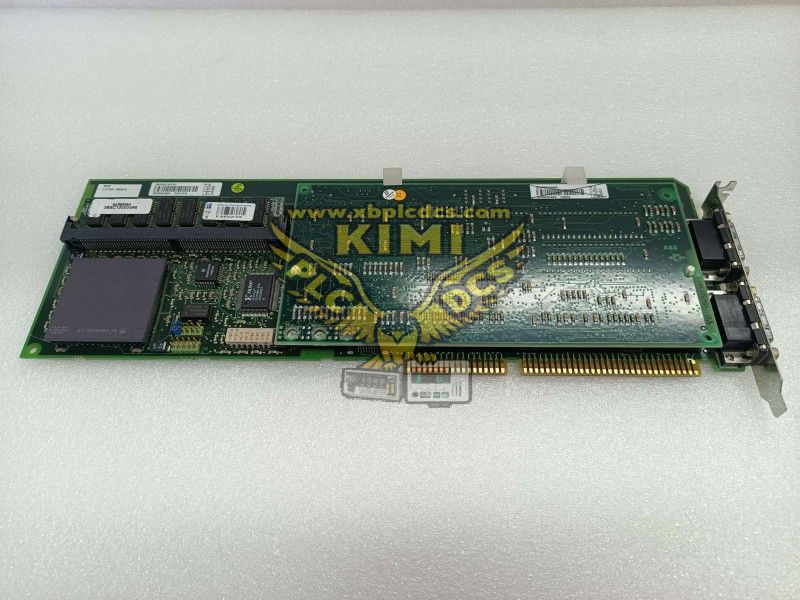

ABB PU512V2 3BUR001401R1 (5).png

YMGK Purchase Information

This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.

One-Stop Global Industrial Product Procurement

Sales Manager: KI MI

WeChat: 18059884790

WHATSAPP: +86 18059884790 (Click to add)

Email: plc66@qq.com

Global Inventory: 121 shared inventories worldwide, enabling direct procurement
from overseas warehouses for faster delivery.
Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
Customer Coverage: Serving clients across United States, Germany, Japan, South Korea,
United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands,
Switzerland, Sweden, Belgium, Austria, and Turkey.
Product Quality: All items are brand new and original. Spare parts include a 1-year warranty,
and all products are tested and certified.
Discounts: Contact us for bulk-order discounts. We also offer further price adjustments
if you receive lower quotes for identical products from other suppliers.

For additional inquiries, reach out to us at any time.

All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders.

3. Typical Applications

• Power Generation: Steam turbine speed control, boiler combustion optimization, and generator load balancing.

• Oil & Gas: Refinery process control, pipeline flow regulation, and compressor anti-surge protection.

• Petrochemical: Reactor temperature/pressure control, catalyst bed monitoring, and distillation column automation.

• MOD 300 System Upgrades: Enhancing real-time performance of legacy MOD 300 systems without full replacement.

• Critical Process Control: High-speed data acquisition and control for batch processes and continuous manufacturing.

• Workstation Retrofits: Adding RTA capability to existing Advant Stations for improved system responsiveness.

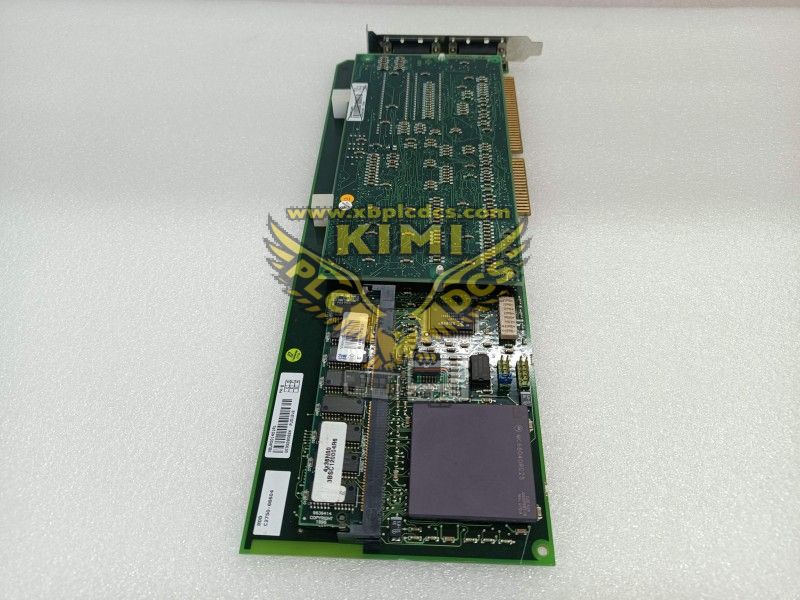

ABB PU512V2 3BUR001401R1 (4).png

4. Installation & Maintenance

Installation: Insert into EISA slot of Advant Station (HP workstation); secure with screws. Power via EISA bus (no external power required). Verify PWR LED is steady green and COM LED flashes during communication.

Maintenance: Perform monthly LED status checks; test RAM integrity quarterly using MOD 300 diagnostic tools. Inspect EISA connector for dust/corrosion annually; clean with compressed air if needed. Replace module if STS LED shows continuous red (hardware fault).

Fault Diagnosis: No PWR LED indicates EISA bus power failure; check workstation power supply. Flashing red COM LED means communication loss; verify MOD 300 software version and bus connection.

Technical Document | ABB PU512V2 3BUR001401R1 | Real-Time Accelerator Module for Advant MOD 300
