FOXBORO P0926GH Compression Terminal Assembly--KIMI

Part number：FOXBORO P0926GH
Product Origin：America
HS CODE：8537109021
Warehouse: Spot
Warranty： 365 days
Quality: Original module
Condition： New
Shipping method: Courier delivery

Contact person: LI MING
Contact number: +86 18059884790
WeChat：18059884790
E-mail: plc66@qq.com

Product Description

FOXBORO P0926GH Compression Terminal Assembly (for FBM224/FBM230/FBM231)

Reliable Wiring Interface for FOXBORO I/A Series DCS FBM Modules

1. Product Overview

The FOXBORO P0926GH is a compression terminal assembly specifically designed for FOXBORO I/A Series FBM224 (Analog Input), FBM230 (Digital Input), and FBM231 (Digital Output) modules, serving as a critical wiring interface between field devices (sensors, actuators, switches) and DCS I/O modules. It features a compression - type terminal design for secure electrical connections, ensuring stable signal transmission even in harsh industrial environments with high vibration, electromagnetic interference (EMI), and temperature fluctuations (-40°C to +85°C). The modular construction allows hot - swapping of FBM modules without disconnecting field wiring, minimizing downtime during maintenance. With corrosion - resistant polyamide material and channel - to - channel isolation, this assembly provides reliable protection against short - circuits and electrical noise, making it ideal for process control applications in oil & gas, chemical, power generation, and manufacturing industries.

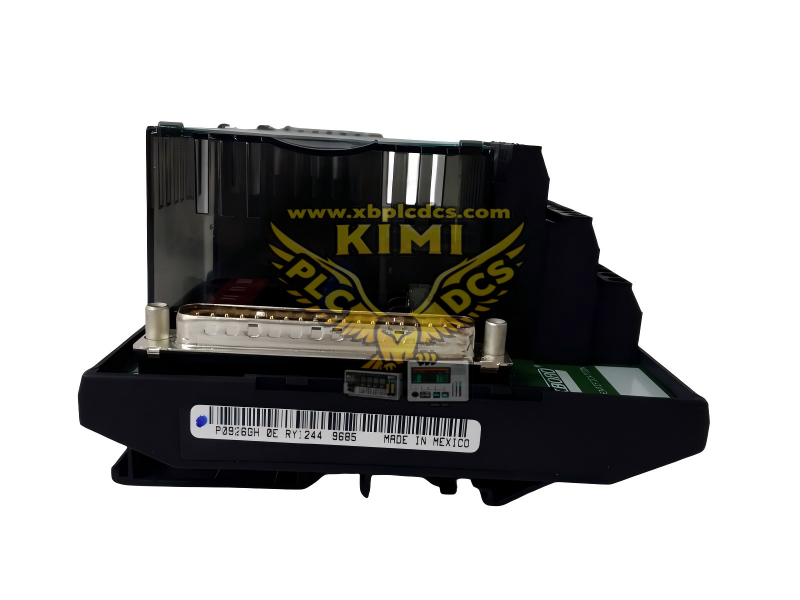

P0926GH -1.png

2. Key Technical Specifications

• Brand & Model: FOXBORO P0926GH

• Product Type: Compression Terminal Assembly

• Compatible Modules: FBM224 (AI), FBM230 (DI), FBM231 (DO)

• Terminal Type: Compression - Type (Polyamide Insulation)

• Channel Count: 16 Channels (8 Differential Pairs for FBM224/FBM230/FBM231)

• Voltage Rating: 300 V AC/DC (Max)

• Current Rating: 10 A (Per Channel, Resistive Load)

• Isolation: Channel - to - Channel Isolation (500 V AC, 1 Minute)

• Material: High - Temperature Polyamide (Heat - Resistant, Corrosion - Resistant)

• Installation: Panel - Mount (FBM Module Backplane Compatible)

• Operating Temperature: -40°C to +85°C; Storage Temperature: -40°C to +100°C

• Physical Dimensions: 150 mm × 80 mm × 40 mm; Weight: 0.3 kg

• Certifications: CE, UL 508, IEC 61010 - 1, RoHS Compliant

3. Core Features

• Compression Terminal Design: Ensures vibration - resistant, long - term stable electrical connections.

• Hot - Swap Compatibility: Allows FBM module replacement without field wiring disconnection.

• High - Density Channel Layout: 16 channels in compact form factor, saving panel space.

• Electrical Isolation: Prevents cross - talk and short - circuits between channels.

• Industrial - Grade Material: Withstands extreme temperatures, humidity, and chemical exposure.

• Tool - Less Wiring: Compression terminals enable quick, reliable connections without special tools.

• LED Status Indicators: Integrated LEDs for power, communication, and channel activity monitoring.

4. Typical Applications

• Oil & Gas: Refinery Process Control, Pipeline Monitoring, and Wellhead Automation.

• Chemical Industry: Batch Process Control, Reactor Temperature/Pressure Monitoring.

• Power Generation: Boiler Control, Turbine Monitoring, and Grid Stability Systems.

• Manufacturing: Production Line Automation, Quality Control, and Equipment Monitoring.

• Water/Wastewater: Treatment Plant Process Control, Flow/Level Monitoring.

5. Installation & Maintenance

Installation Steps

• Mounting: Secure to FBM backplane panel; align with module connector pins.

• Wiring: Strip wire insulation (6-8 mm); insert into compression terminal; crimp with standard tool.

• Module Insertion: Slide FBM224/FBM230/FBM231 into backplane; lock in place.

• Testing: Verify continuity and isolation using multimeter; check LED status for power/communication.

Maintenance Tips

• Daily: Inspect LED indicators for fault alerts; monitor module communication via DCS HMI.

• Weekly: Tighten terminal screws (if loose); check for corrosion on wiring/pins.

• Monthly: Test channel isolation and insulation resistance (500 V Megohmmeter).

• Annual: Replace aging terminals; clean backplane connectors with dry air.

Technical Document | FOXBORO P0926GH | Compression Terminal Assembly | FOXBORO I/A Series DCS
