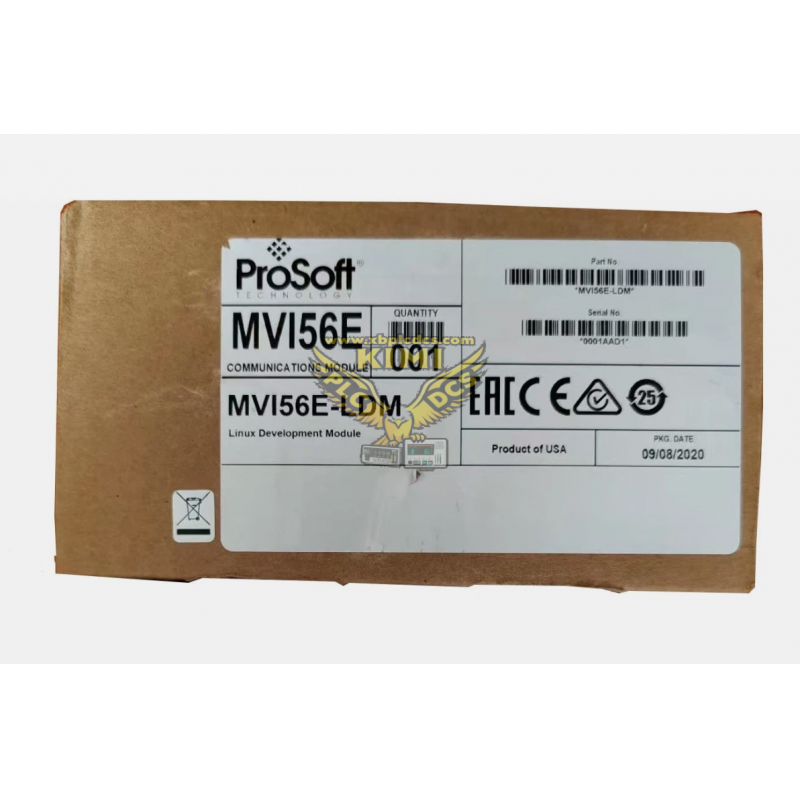

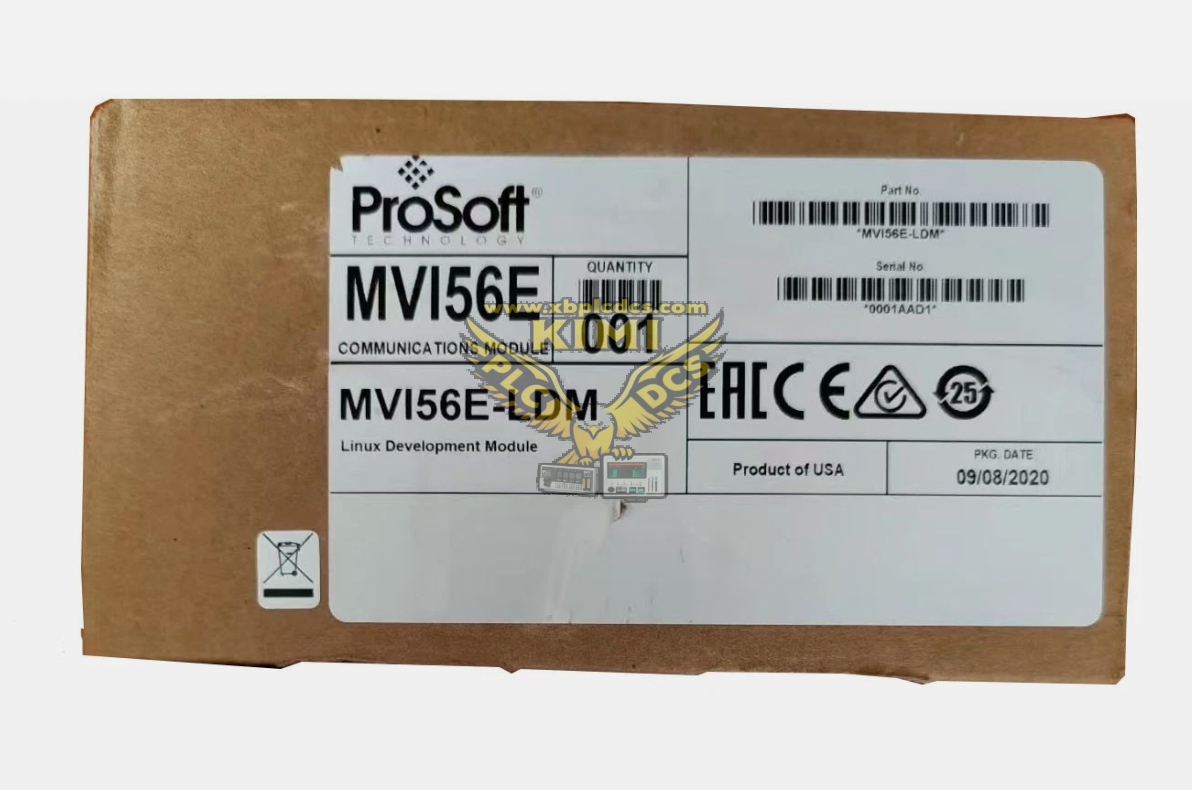

ProSoft MVI56E-LDM Linux Development Module for ControlLogix

Product Description

The ProSoft MVI56E-LDM is an in-chassis Linux-based edge co-processor module designed for Rockwell ControlLogix rack systems. It provides an open Linux runtime environment for users to develop custom C/C++ applications, proprietary protocol drivers and IIoT data pipelines. It features dual independent Ethernet ports, two isolated RS232/422/485 serial ports and fanless industrial construction. It communicates with ControlLogix CPU via backplane API and supports MQTT, Sparkplug B, ThingWorx and custom ASCII protocols. This module is available as new surplus or fully tested refurbished spare parts for industrial IoT upgrade, legacy device integration and custom automation communication projects.

Product Functions

• Open Linux runtime for custom C/C++ application development and deployment inside ControlLogix rack
• High-speed data exchange with ControlLogix processor through native backplane communication API
• Dual Ethernet and dual isolated serial ports (RS232/422/485) for multi-device connectivity
• Pre-built sample libraries for MQTT, Sparkplug B and ThingWorx IIoT connectivity
• Support custom proprietary protocol drivers for scanners, printers and legacy serial instruments
• Scrolling LED status display for custom alarm, diagnostic and runtime message output

Application Scenarios

• Factory IIoT data gateway, publishing ControlLogix tag data to MQTT cloud platforms
• Integration of legacy ASCII, serial and non-standard protocol devices with Rockwell PLC
• Packaging, automotive and material handling lines with custom barcode scanner interfaces
• Marine, oil & gas and energy automation systems requiring customized communication logic
• Spare replacement and retrofit of existing ProSoft MVI56E-LDM edge computing modules
