ProSoft MVI56-PDPS PROFIBUS DP Slave Communication Module--KIMI

Warehouse: Spot
Warranty： 365 days
Quality: Original module
Condition： New
Shipping method: Courier delivery

Contact person: LI MING
Contact number: +86 18059884790
WeChat：18059884790
E-mail: plc66@qq.com

Product Description

ProSoft MVI56-PDPS PROFIBUS DP Slave Communication Module

PROFIBUS DP V0 Slave Interface for Rockwell Automation ControlLogix Platform

1. Core Overview

The ProSoft MVI56-PDPS is a single-slot PROFIBUS DP V0 Slave communication module designed for Rockwell Automation ControlLogix local/remote racks, bridging ControlLogix processors with PROFIBUS DP master devices (e.g., Siemens S7, Schneider Quantum). It supports up to 12 Mbps baud rate, 0-125 node addressing, and bidirectional data transfer (122 input words / 122 output words) via ladder logic mapping, with a serial configuration/debug port for rapid setup and troubleshooting. Built for harsh industrial environments, it features 5V/24V backplane power, 512K SRAM battery backup, and compliance with CE/UL/RoHS, making it ideal for automotive, chemical, and material handling applications requiring seamless multi-protocol integration.

• Core Role: PROFIBUS DP V0 Slave for ControlLogix; bidirectional data exchange with DP masters • Model Info: MVI56-PDPS; ProSoft Technology; 1756 chassis-compatible; single-slot design • Key Specs: 12 Mbps max baud; 122 I/O words each way; 5V (800mA)/24V (3mA) backplane power • Reliability: 0°C to +60°C operation; 512K SRAM backup; 30g operational shock; 5-95% RH (non-condensing)

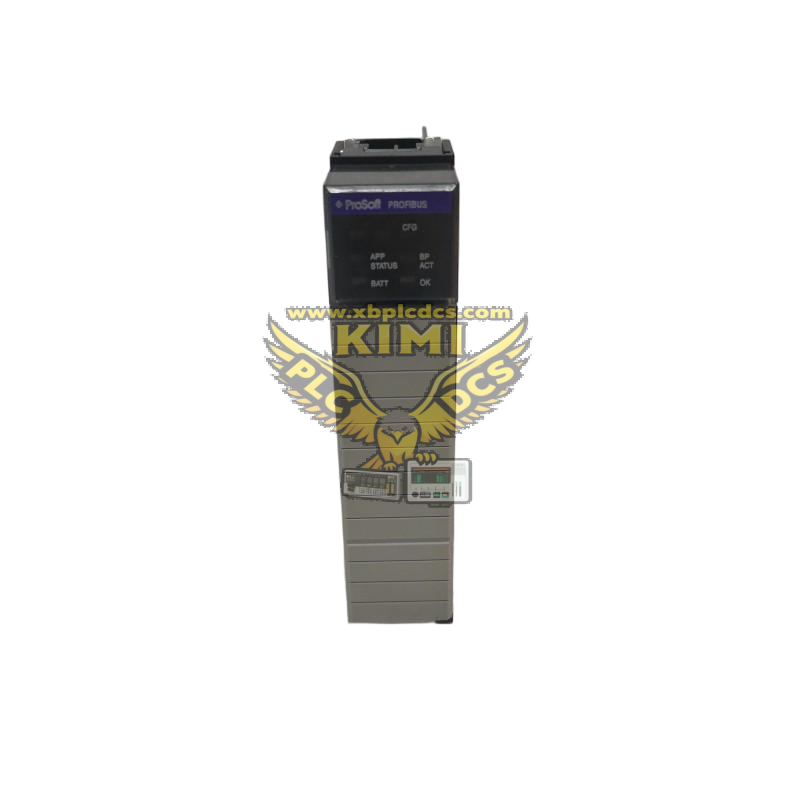

PROSOFT MVI56-PDPS (3).jpg

2. Communication Performance & Data Mapping

The module implements PROFIBUS DP V0 Slave functionality, supporting cyclic data exchange with DP masters and user-configurable byte swapping for input/output images. It uses ladder logic in RSLogix 5000 to map ControlLogix tags to PROFIBUS registers, enabling real-time process data transfer (e.g., sensor readings, drive setpoints) with<5ms latency. The front-panel DB9 serial port connects to a PC for parameter configuration (node address, baud rate, comm timeout) and live status monitoring (data traffic, fault codes). It also supports database paging, comm failure mode (no transfer on fail), and timeout multiplier (1-10 × 125ms) for flexible network resilience tuning.

• Protocol: PROFIBUS DP V0 Slave; cyclic data exchange; 0-125 node addressing • Data Capacity: 122 input words (DP → ControlLogix); 122 output words (ControlLogix → DP) • Configuration: RSLogix 5000 ladder logic mapping; serial port (9600-115200 baud) for setup • Resilience: Comm failure mode; byte swapping; database paging; 125ms base timeout (1-10x multiplier)

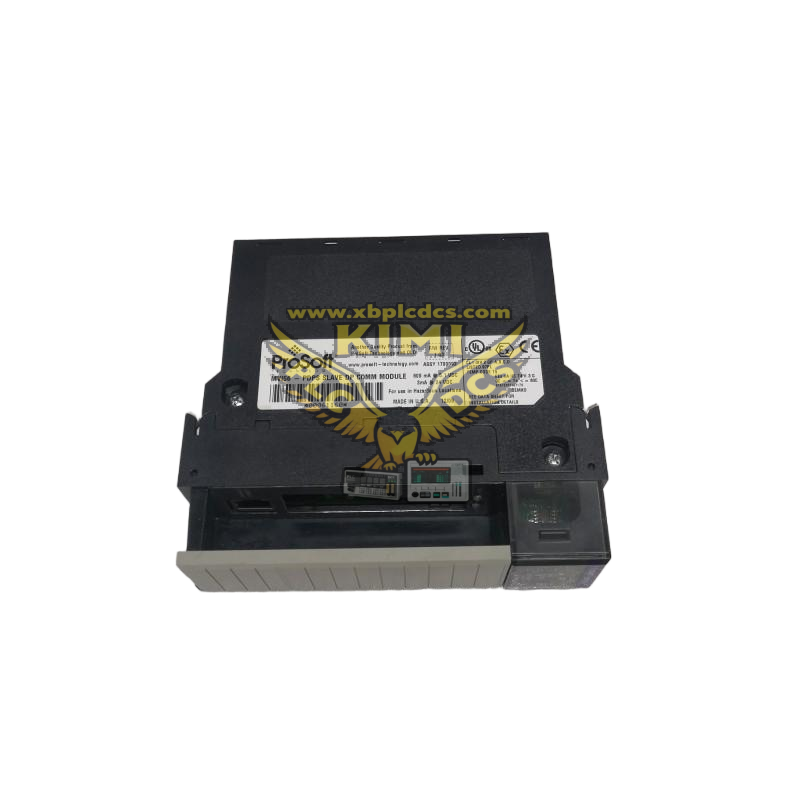

PROSOFT MVI56-PDPS (1).jpg

3. ControlLogix Integration & Installation

The MVI56-PDPS installs in any 1756 local/remote chassis slot, drawing 800mA at 5V DC and 3mA at 24V DC from the backplane, with a rechargeable lithium battery backing up 512K of SRAM to preserve configuration during power loss. It integrates with ControlLogix CPUs via the 1756 backplane, supporting both local and remote I/O rack deployment for distributed control systems. Wiring uses a front-panel DB9 female connector for PROFIBUS DP (A/B bus lines, shield) and screw terminals for auxiliary power; LED indicators show module power, DP communication status, and data activity for at-a-glance diagnostics. It is compatible with all ControlLogix processors (L6x/L7x) and works with ProSoft Configuration Builder for offline setup and online monitoring.

• Chassis Compatibility: 1756 local/remote racks; single-slot; ControlLogix CPU (L6x/L7x) compatible • Power & Backup: 5V (800mA)/24V (3mA) backplane; 512K SRAM battery backup (5-year life) • Wiring: DB9 female (PROFIBUS A/B/shield); screw terminals (aux power); LED status indicators • Software: RSLogix 5000 (v16+); ProSoft Configuration Builder; serial debug for live monitoring

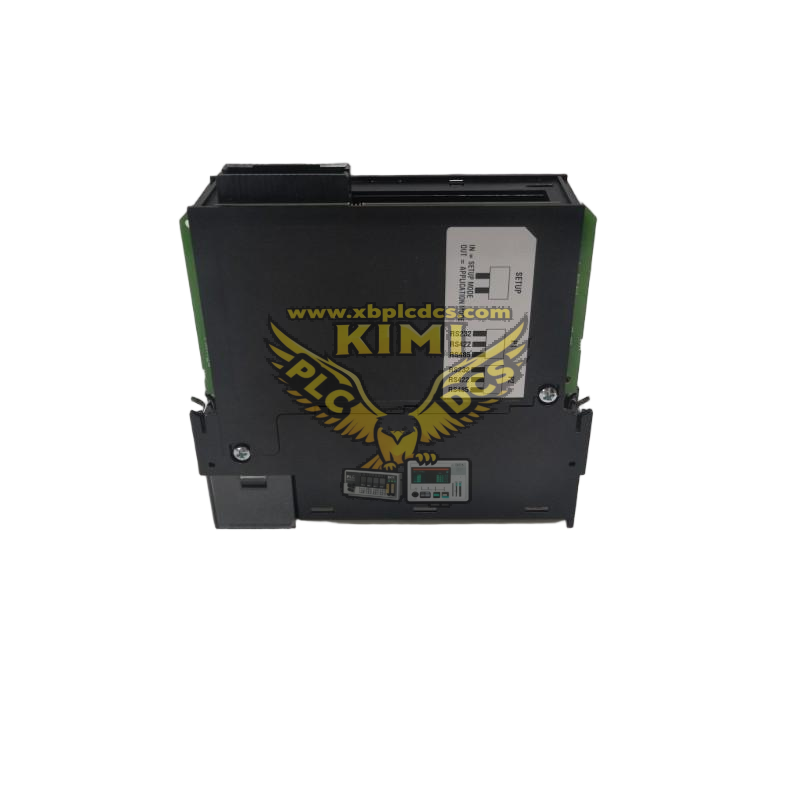

PROSOFT MVI56-PDPS (5).jpg

Typical Applications & Compliance

Key Sectors: Automotive assembly, chemical processing, material handling, packaging machinery, water/wastewater treatment.

Use Cases: Connect ControlLogix to Siemens S7 PROFIBUS DP masters; integrate DP field devices (drives, sensors, valves); remote I/O expansion; multi-vendor DCS/PLC interoperability.

Compliance: CE marked; UL 508 industrial control standard; RoHS compliant; IEC 61000 EMC immunity; 0°C to +60°C operating temp.

Spare Part Grade: Prosoft genuine module; factory-tested for 1756 chassis compatibility; 2-year standard warranty with extended support.

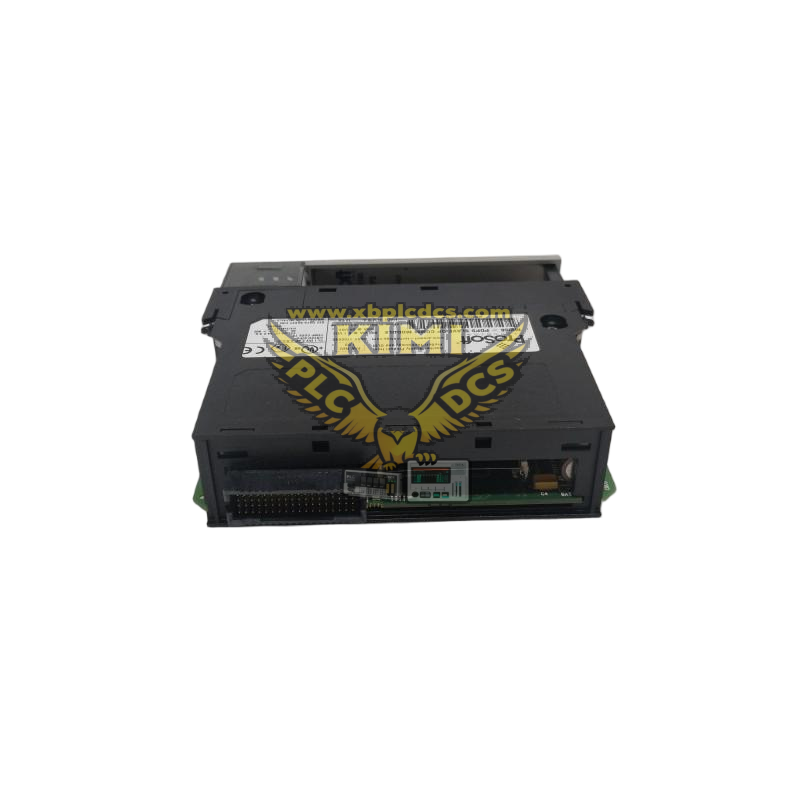

PROSOFT MVI56-PDPS (2).jpg
