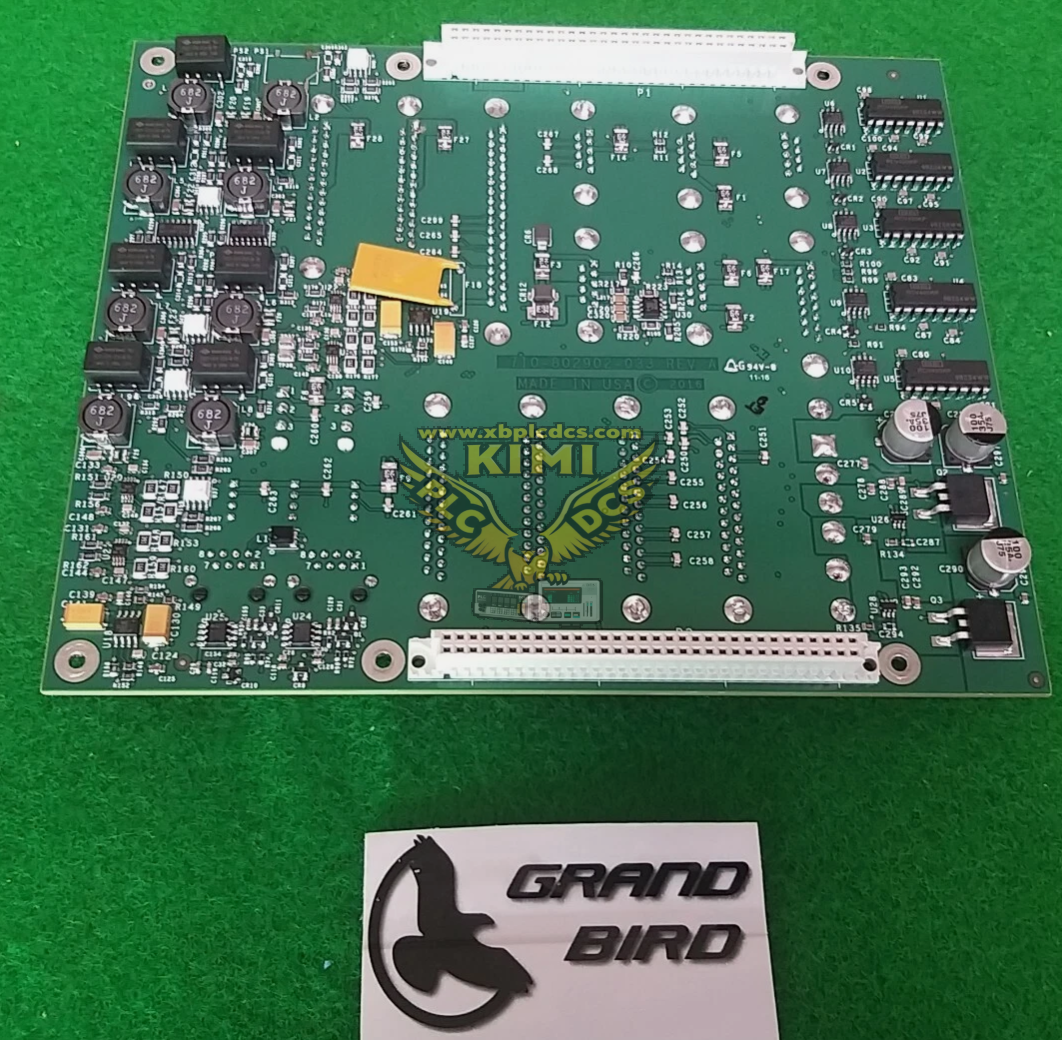

Lam Research 810-802902-033 Node 2 MB PM HE PCB Assembly

Product Description

810-802902-033 is a Node 2 MB PM HE printed circuit board assembly manufactured by Lam Research, designed for semiconductor wafer etch processing equipment. It serves as a power and motion control board within the Lam process chamber subsystem, responsible for power distribution, signal conditioning and actuator drive control. The board adopts high-reliability industrial PCB with conformal coating, supports precise low-noise signal transmission under vacuum and thermal cycling environment inside the wafer processing tool. It is installed in the main control rack of Lam etcher systems, and is a critical spare component for semiconductor fab equipment maintenance. Most available stock in the market are tested refurbished or surplus used boards.

Key Functions

• Precise power distribution and regulation for chamber mechanical actuators and sensors
• Analog signal conditioning, filtering and amplification for process feedback signals
• Drive and position control for chamber lift, clamping and gas valve sub-components
• Over-current, over-voltage and thermal protection for on-board circuits
• Real-time status monitoring, fault detection and diagnostic feedback to host equipment controller
• High noise immunity design to resist plasma interference in etching chamber environment
• Conformal coated PCB for protection against humidity and chemical vapor contamination

Application Scenarios

• Lam Research semiconductor wafer etch process tools
• 300mm wafer fabrication plant chamber control subsystem
• Semiconductor production equipment maintenance and spare replacement
• Process chamber actuator and sensor control cabinets
• Equipment upgrade and refurbishment projects in chip manufacturing fabs

FAQ

Q1: What does Node 2 MB PM HE mean?
A1: Node 2 refers to the equipment control node, MB = Mother Board, PM = Power Module, HE is hardware revision variant for Lam etcher platform.

Q2: Can this board work on all Lam etch tools?
A2: It is only compatible with matching Lam etcher model and firmware version, model and revision verification is required before replacement.

Q3: Common failure symptoms?
A3: Actuator motion failure, unstable sensor readings, board power failure, circuit burnout caused by plasma surge, communication timeout with host controller.

Q4: What pre-test is needed before installation?
A4: Continuity test, power rail voltage check and communication verification on test bench, inspect PCB for trace corrosion or component damage.
