Product Description

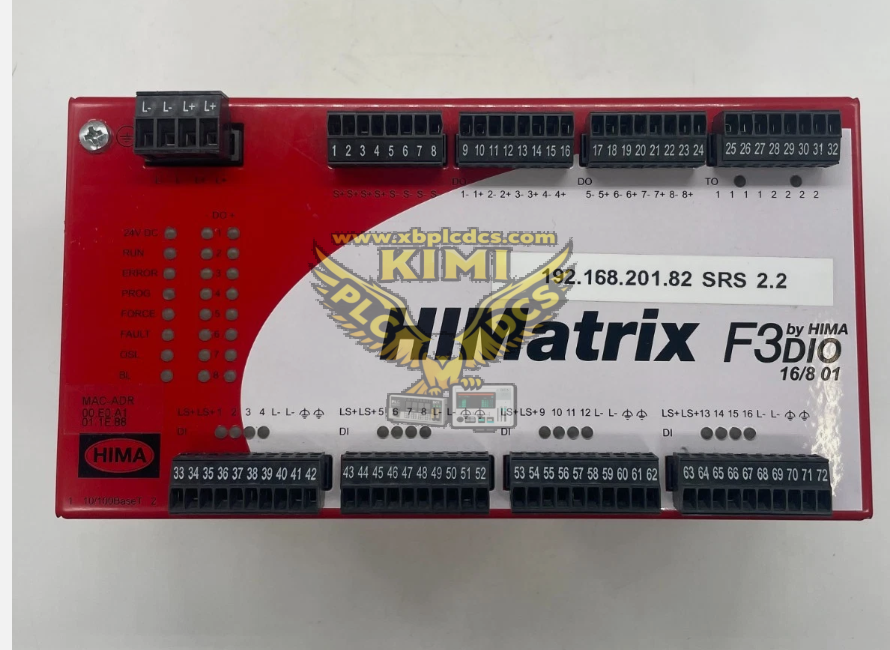

The F3DIO20/802 (F3 DIO 20/8 02, part number 982200484) is SIL3 certified safety mixed digital I/O remote module of HIMA HIMatrix safety system, specially designed for SILworX engineering software. It complies with IEC 61508, IEC 61511, EN ISO 13849-1 PL e / Category 4. This DIN rail mounted module provides 20 channels of 24VDC safety digital inputs and 8 channels of safety digital outputs. It has dual SafeEthernet ports with built-in switch for redundant safety network topology. It supports channel-level wire monitoring and EMC protection. This distributed slave I/O cannot run safety logic independently and communicates with HIMatrix safety CPU via SafeEthernet. It is approved for Ex Zone 2 hazardous area installation.

Key Functions

• 20 safety digital input channels for collecting signals from emergency stop buttons, limit switches and safety field sensors
• 8 safety digital output channels to drive safety solenoid valves, safety relays and alarm indicators
• Channel-wise line diagnosis to automatically detect wire break, short circuit and field wiring faults
• Dual SafeEthernet interfaces to build redundant safety network and communicate with HIMatrix safety controller
• Fail-safe design: outputs switch to de-energized safe state upon communication loss, power failure or hardware fault
• Front panel LED indicators for power supply, network status and individual channel fault alarms
• Hardware configuration, online monitoring and fault diagnosis only supported by SILworX programming tool

Application Scenarios

This F3DIO20/802 remote I/O module is widely used in Safety Instrumented Systems (SIS), Emergency Shutdown (ESD), Burner Management System (BMS) and Fire & Gas (FGS). It is deployed in oil & gas, petrochemical, chemical refining, offshore platforms and thermal power plants for safety signal acquisition and safety interlock actuator control of high-risk production processes.

Common Issues & Troubleshooting

• Channel fault alarm: Loose field terminals, cable short circuit, wire break or cable insulation degradation
• SafeEthernet communication interruption: Damaged Ethernet cable, network switch fault or incorrect IP configuration
• Input signal instability: Sensor contact bounce, loose wiring or fluctuating 24VDC field power supply
• Output no response: Load overload, wiring error or safety interlock logic being triggered
• Intermittent module offline: Cabinet overheating, mechanical vibration or unstable 24VDC power supply
