Product Description

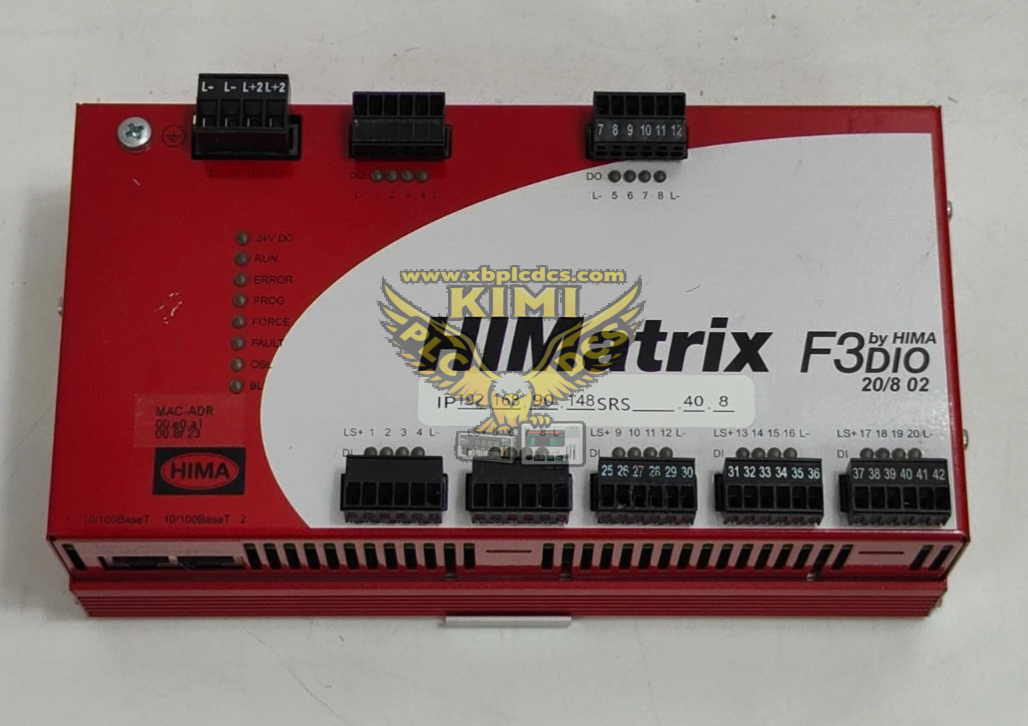

The F3DIO-20/8-02 (F3 DIO 20/8 02) is a SIL3 certified safety mixed digital I/O remote module of HIMA HIMatrix safety system, complying with IEC 61508 and IEC 61511. This DIN rail mounted module provides 20 channels of 24VDC safety digital inputs and 8 channels of safety digital outputs. It is equipped with dual RJ45 SafeEthernet ports with integrated switch for redundant safety network. It supports channel-level wire monitoring and EMC protection, can not execute safety logic independently, works as distributed remote I/O to connect field devices with HIMatrix safety controller.

Key Functions

• 20 safety digital input channels for collecting status of emergency stop buttons, limit switches and safety sensors
• 8 safety digital output channels to control safety solenoid valves, safety relays and alarm indicators
• Channel-wise line diagnosis to automatically detect wire break and short circuit of field wiring
• Dual SafeEthernet interfaces to build redundant safety network and communicate with HIMatrix CPU
• Fail-safe design: outputs switch to de-energized safe state upon communication loss or hardware fault
• Front panel LED indicators for power, network status and individual channel fault alarm
• Configuration, online monitoring and fault diagnosis supported by ELOP II and SILworX engineering software

Application Scenarios

This F3DIO-20/8-02 mixed I/O module is widely used in Safety Instrumented Systems (SIS), Emergency Shutdown (ESD), Burner Management System (BMS) and Fire & Gas (FGS). It is deployed in oil & gas, petrochemical, chemical refining and thermal power plants to realize safety signal acquisition and safety interlock actuator control for high-risk process protection loops.

Common Issues & Troubleshooting

• Channel fault alarm: Loose field terminals, cable short circuit, wire break or cable insulation degradation
• SafeEthernet communication loss: Damaged Ethernet cable, network switch failure or incorrect IP configuration
• Input signal instability: Sensor contact bounce, loose wiring or fluctuating 24VDC field power
• Output no actuation: Load overload, wiring error or safety interlock logic triggered
• Intermittent module offline: Cabinet overheating, mechanical vibration or unstable 24VDC power supply
