ABB PDP800 PROFIBUS DP Master Communication Module--KIMI

Part number：PDP800
Product Origin：Sweden
HS CODE：8708299000
Warehouse: Spot
Warranty： 365 days
Quality: Original module
Condition： New
Shipping method: Courier delivery

Contact person: LI MING
Contact number: +86 18059884790
WeChat：18059884790
E-mail: plc66@qq.com

Product Description

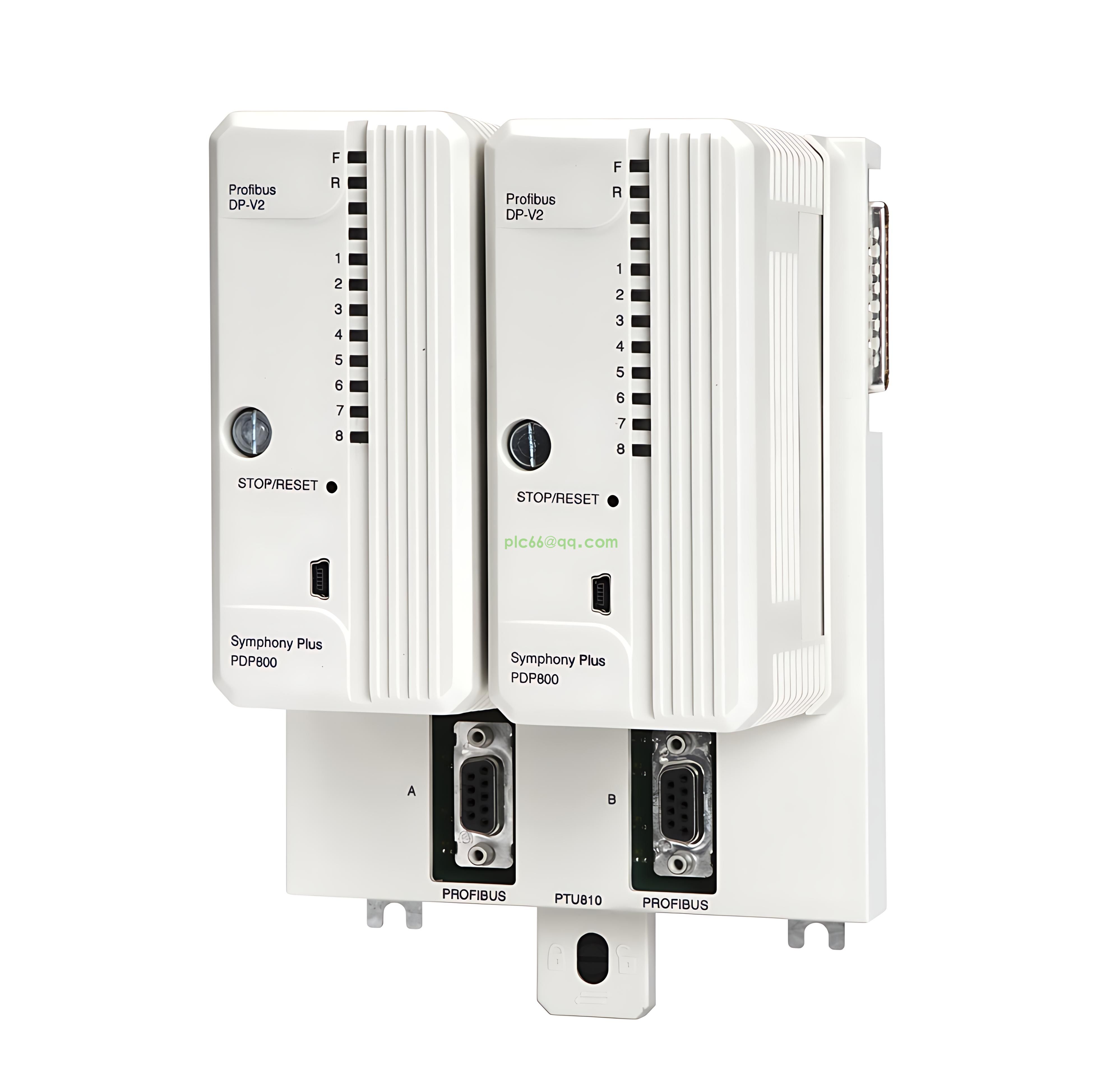

ABB PDP800 PROFIBUS DP Master Communication Module

Symphony Plus SD Series, High-Speed PROFIBUS DP/PA Integration for Industrial Automation

1. Product Overview

The ABB PDP800 is a PROFIBUS DP master communication module belonging to the ABB Ability™ Symphony Plus SD Series, dedicated to establishing a reliable communication link between Symphony Plus controllers and PROFIBUS DP/PA field devices. It supports PROFIBUS DP V0/V1/V2 protocols and enables integration of PROFIBUS PA devices via DP/PA linking devices, with high-speed data transmission up to 12 Mbps and fiber-optic transmission distance up to 15 km. The module features comprehensive redundancy support (module, power supply, DP link, and communication bus), 1 ms time-stamping for DP V2 devices, and compatibility with both electrical and fiber-optic media, making it an ideal choice for seamless integration of intelligent field devices in power generation, oil & gas, and chemical industries.

2. Key Technical Specifications

• Product Type: PROFIBUS DP Master Communication Module (SD Series)

• Brand: ABB (Part No.: PDP800)

• System Compatibility: ABB Ability™ Symphony Plus Control System

• Supported Protocols: PROFIBUS DP V0/V1/V2, PROFIBUS PA (via DP/PA Link)

• Transmission Rate: 9.6 kbps - 12 Mbps (Selectable Baud Rate)

• Max. Slave Devices: Up to 125 PROFIBUS DP Slaves

• Transmission Distance: Electrical (up to 1.2 km), Fiber Optic (up to 15 km)

• Redundancy: Module Redundancy, DP Line Redundancy, Power Redundancy

• Time - Stamping: 1 ms Precision (PROFIBUS DP V2 Device Event Marking)

• Interfaces: 2 x 9 - Pin D - Sub (PROFIBUS DP Redundant), 1 x Mini USB (Configuration)

• Operating Temperature: - 20°C to +60°C

• Protection Rating: IP20 (Module), IP65 (Front Panel with Enclosure)

• Installation: Symphony Plus Standard Rack Mount, 35 mm DIN Rail Compatible

• Weight: 610 g

• Certifications: CE, UL, IEC 61131 - 2, RoHS Compliant

PDP800 -3.jpg

3. Core Features

• Seamless integration with Symphony Plus controllers for intelligent field device connection

• Full - level redundancy design ensures high system availability and fault tolerance

• Supports 1 ms time - stamping of device events via PROFIBUS DP V2 for precise monitoring

• Compatible with both electrical and fiber - optic media for flexible network deployment

• Configurable via S+Engineering software for easy network setup and maintenance

• Supports hot - swap for online module replacement without system shutdown

• Enables integration of third - party PROFIBUS - compliant devices

PDP800 -2.jpg

4. Typical Applications

• Power Generation (Thermal, Hydropower, Nuclear) - Field Device Integration

• Oil & Gas (Upstream, Midstream, Downstream) - Process Control & Monitoring

• Chemical & Petrochemical - Plant Automation & Distributed Control System (DCS) Integration

• Water & Wastewater - Pump Station Control & Instrumentation Network

• Heavy Industry - Motor Control Center (MCC) & Intelligent Electronic Device (IED) Connection

PDP800 -1.jpg

You can click on (ABB ) to visit the official website for more product information.

If you want to purchase, you can contact YMGK's official customer service

For the relevant manual, please click to download and learn about the specific parameters

PDP800A Profibus DP V0/V1/V2 Master Module(图2) PDP800A.pdf

Technical Document | ABB PDP800 | PROFIBUS DP Master Module | Symphony Plus Control System
