3BDH000721R1 CAI10-2-PEx I-O_Module Origina New In Stock
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
Product: 3BDH000721R1 CAI10-2-PEx – ABB Symphony Plus Explosion-Proof Analog Input I/O Module
ABB 3BDH000721R1 (CAI10-2-PEx) | Intrinsically Safe Analog Input Module for Hazardous Area DCS Control System
3BDH000721R1 CAI10-2-PEx is an intrinsically safe explosion-proof analog input I/O module launched by ABB, belonging to the Symphony Plus DCS control platform. The suffix PEx represents intrinsic safety certification, specially designed for flammable and explosive hazardous process sites. It collects standard 4–20mA analog signals from field transmitters such as pressure, flow, temperature and liquid level sensors, converts analog signals into high-precision digital data and transmits to the main controller through rack backplane bus. With full intrinsic safety isolation circuit design, it can directly connect field instruments installed in Zone 0/1 hazardous areas, realizing real-time monitoring and closed-loop control of process parameters in petrochemical, oil & gas and chemical plants.
Core Technical Specifications
- Product ID:3BDH000721R1ABB Model Name:CAI 10-2-P ExCatalog Description:CAI 10-2-P Ex, Analog InputDetailed Description:CAI 10-2-P Ex, Analog Input, software version starting from 1.3112-channel 4…20 mA inputs with HART communication, Ex ib IIC Gb intrinsic safety marking
- ATEX certified, compliant with standards EN60079-0, EN60079-11
- Channel-wise galvanic isolation, built-in transmitter power supply
- Mandatory accessories: 4 pieces of CI 120/122-2 Ex cable clampsDimensionsNet Product Depth:212 mmNet Product Height:350 mmNet Product Width:55 mmNet Product Weight:1.24 kgChannel Type:AI (Analog Input)Number of Input Channels:12
Main Functional Features
- Intrinsic safety explosion-proof circuit design, built-in safety barrier to limit voltage and current output to field side, eliminate ignition risk in flammable gas environment
- Independent galvanic isolation for each signal channel, effectively suppress common-mode interference and cross-talk between different measuring points
- High-precision signal sampling with low temperature drift, stable measurement accuracy under long-term temperature fluctuation of control cabinet
- Complete channel self-diagnosis function, automatically detect transmitter open circuit, short circuit, signal over-range and module hardware faults
- Supports hot-swap replacement without shutting down the whole DCS rack, reduce production downtime during equipment maintenance
- Seamless data interaction with Symphony Plus main controller, support real-time trend recording, alarm logic judgment and process closed-loop regulation
- Compact single-slot modular structure, save cabinet installation space, convenient wiring and disassembly operation
- Fully compatible with ABB System 800xA operation configuration software, convenient parameter calibration, channel range setting and fault log export
Application Industries
- Petrochemical Refinery: Hazardous reaction workshop pressure, temperature, flow analog signal acquisition monitoring
- Oil & Gas Industry: Onshore gathering stations and offshore platform explosive zone field instrument signal collection
- Chemical Production Plant: Flammable solvent, liquid medium process parameter real-time monitoring system
- LNG Energy Storage: Tank area hazardous gas environment level and pressure transmitter signal acquisition cabinet
- Pharmaceutical Industry: Explosive raw material production workshop intrinsic safety DCS control system

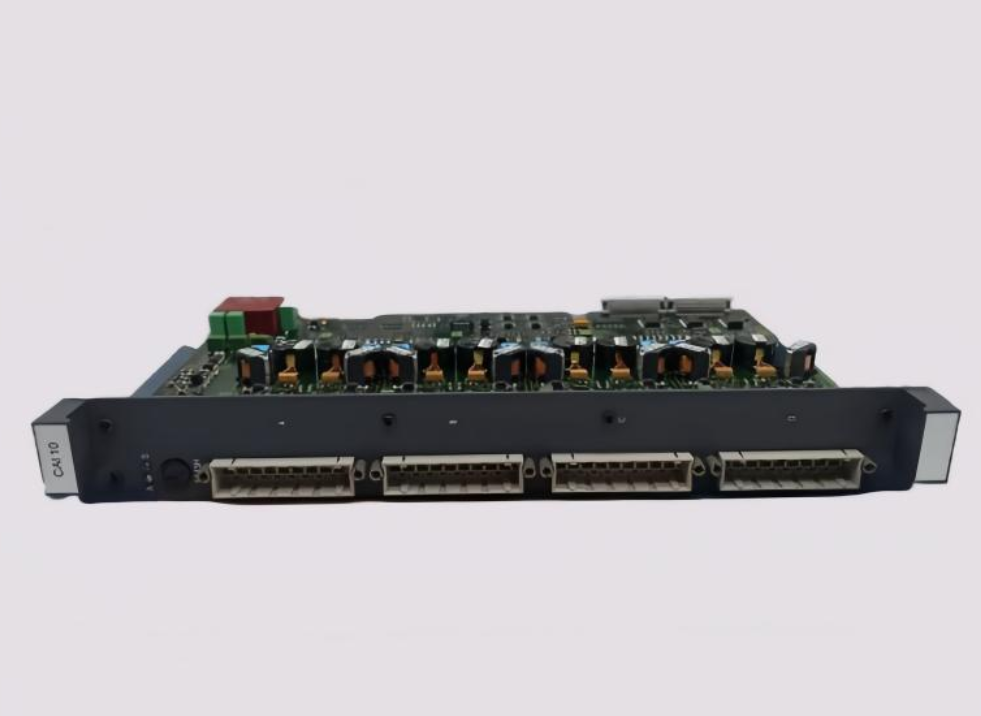

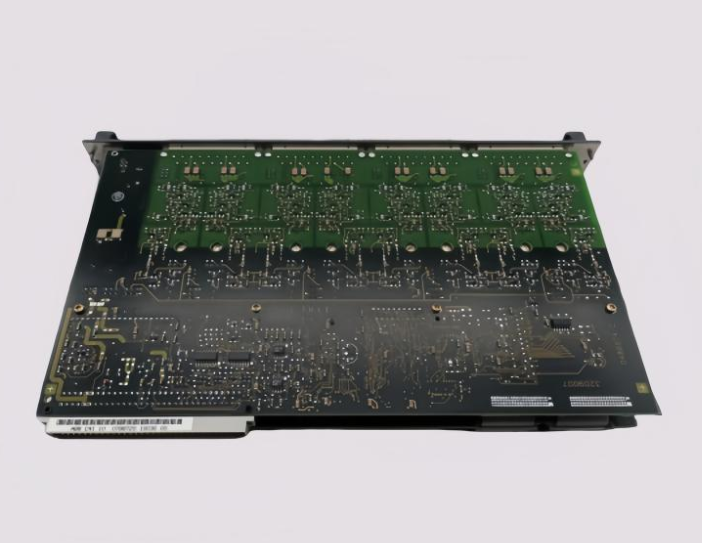

Product Picture
