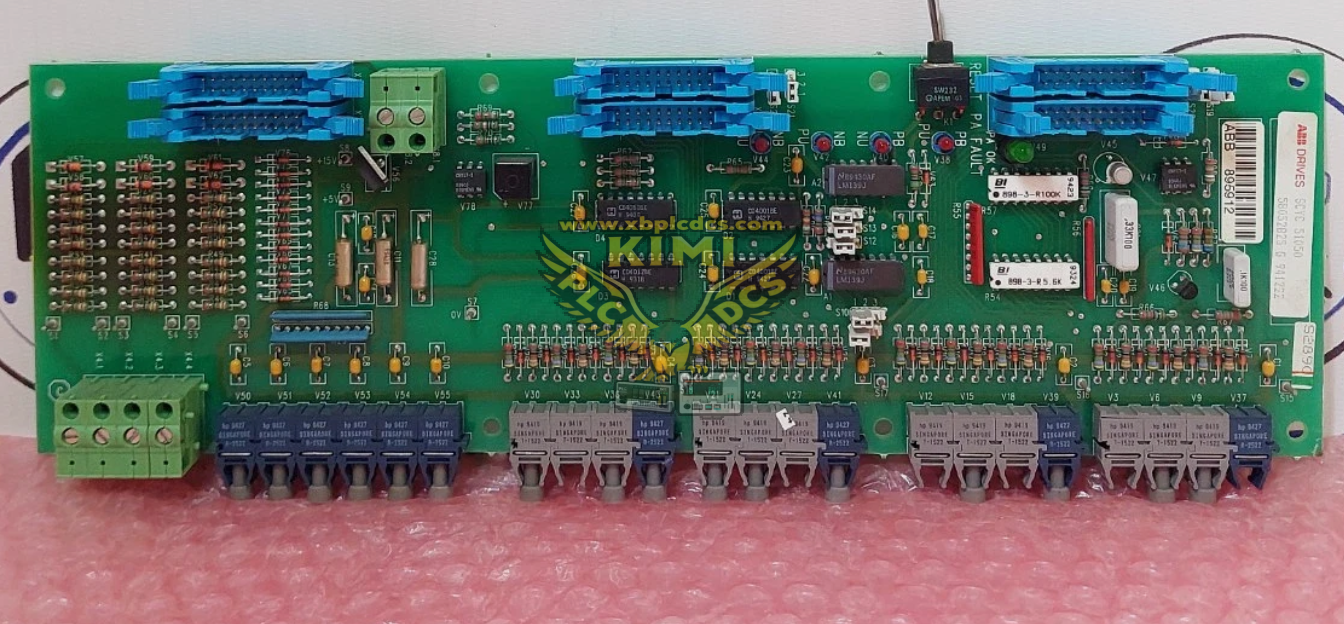

ABB SCYC51050 Synchronous Control Board

Product Description

The ABB SCYC51050 is a high-precision synchronous control pulse board for ABB medium voltage drive and excitation control systems. It is responsible for generating, distributing and synchronizing trigger pulses for thyristor rectifier bridges, supporting multi-phase rectifier synchronization and phase angle closed-loop regulation. It adopts conformal coating design with strong anti-interference capability, suitable for continuous operation in power plant and metallurgical heavy-duty cabinets. This legacy ABB board is widely stocked as spare parts for generator excitation, static frequency converter and medium voltage rectifier cabinet maintenance and retrofit.

Product Functions

• Collect grid voltage synchronization signals and generate accurate thyristor trigger pulses
• Realize phase shift control for rectifier bridge to adjust DC output voltage and current
• Multi-channel pulse output with phase locking and synchronous sequence control
• Built-in pulse monitoring, loss of synchronization and over-phase protection logic
• Signal filtering and electrical isolation to resist high electromagnetic interference
• Transmit synchronization status and fault alarm signals to the master control unit

Application Scenarios

• ABB UNITROL series generator excitation control systems
• Static frequency converter (SFC) and synchronous machine starting cabinets
• Thermal power and hydropower plant excitation rectifier racks
• Metallurgy electrolysis power supply and medium voltage rectifier equipment
• Spare replacement and repair of existing ABB thyristor power control systems
