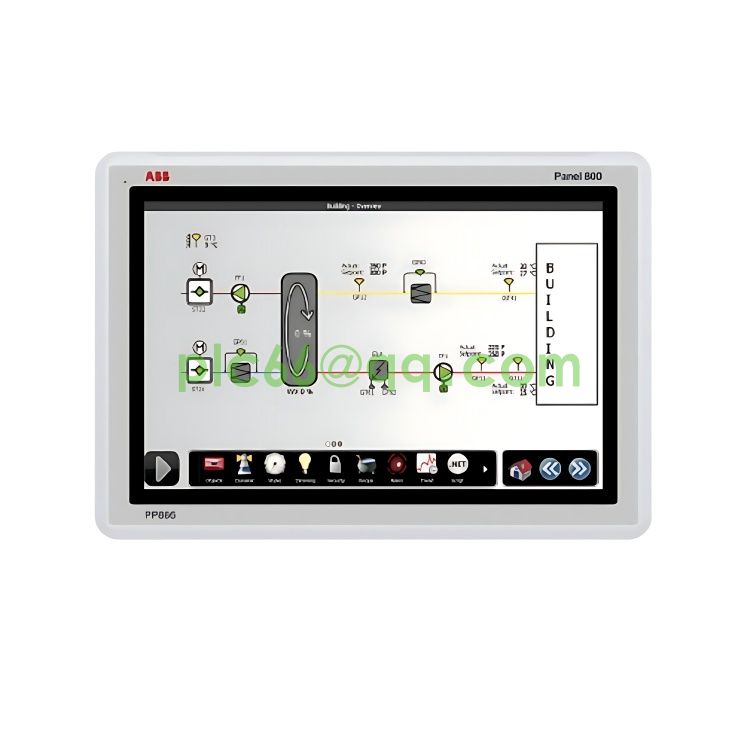

PP886 3BSE092980R1 is a 15.4-inch standard operating Panel from ABB, belonging to the Panel 800 series.

It is mainly used as a human-machine interface (HMI) in industrial automation systems, aiming to provide an intuitive and efficient operation experience

Product Number: 3BSE092980R1

ABB model name: PP886

Table of Contents Description: 15-inch standard panel of PP886

Product net depth: 61 millimeters

Product clear height: 286 millimeters

Product net width :410 millimeters

Net weight of the product: 3.85 kilograms

Detailed description

1280x800 widescreen (16:10). Panel Builder 800 version 6.2 is required for configuration.

To protect the front end, it is recommended to use the RX886 Touch cover. Replace PP885.

Battery type: Button battery

Battery weight :2.5 grams

Screen size :15.4 inches

High-definition widescreen display: Equipped with a 15.4-inch TFT/LED widescreen display, with a resolution of 1280 x 800 pixels (16:10 aspect ratio),

it provides clear and high-resolution graphic display, which can better present complex flowcharts and data.

Resistive touch screen: Utilizing resistive touch technology, operators can conduct intuitive interaction, data input and control through the touch screen.

Powerful processing capability: Equipped with a 1 GHz ARM9 processor and 1 GB main memory, ensuring smooth operation of industrial applications and data processing.

Ample storage space: 2GB SSD storage is provided, of which 1.5GB can be used for application storage.

Multi-protocol connection: Supports multiple communication interfaces, including:

Two 10/100 Base-T Ethernet ports (shielded RJ45)

Two USB 2.0 ports

Multiple serial ports (RS232, RS422/485) enable flexible connection with various industrial controllers.

Robust and durable design: Equipped with a sturdy and lightweight die-cast powder-coated aluminum housing, the front panel achieves IP65 protection rating (NEMA 4X/12 and UL Type 4X/12),

capable of withstanding damp, dusty and harsh industrial environments.

Wide operating temperature range: It can operate stably within the temperature range of -10°C to +60°C, adapting to various industrial environments.

Easy to use and configure: Compatible with Panel Builder 800 software, which has a familiar Microsoft® Windows® environment and multilingual support,

 enabling engineers to configure and program quickly and efficiently.

Graphical interface: It offers vector-based, high-resolution graphic display, as well as icon-based interfaces, navigation and control, simplifying operation.
