UFC911B106 3BHE037864R0106 Fiber Optic Communication Interface Module--KIMI

Part number：UFC911B106 3BHE037864R0106
Product Origin：Sweden
HS CODE：8537109021
Warehouse: Spot
Warranty： 365 days
Quality: Original module
Condition： New
Shipping method: Courier delivery

Contact person: LI MING
Contact number: +86 18059884790
WeChat：18059884790
E-mail: plc66@qq.com

Product Description

ABB UFC911B106 3BHE037864R0106 Fiber Optic Communication Interface Module (AC 800PEC Series)

High-Speed Fiber Communication for AC 800PEC Excitation & Power Electronics Control Systems

1. Product Overview

The ABB UFC911B106 3BHE037864R0106 is a high-performance fiber optic communication interface module specifically engineered for ABB AC 800PEC excitation systems and power electronics control platforms. It serves as a critical bridge between the AC 800PEC controller and remote I/O modules, field devices, or upper-level DCS/SCADA systems, enabling high-speed, interference-free data transmission via fiber optic networks. Equipped with dual redundant fiber ports (multi-mode), this module supports a maximum transmission distance of 2 km, ensuring reliable communication even in harsh industrial environments with strong electromagnetic interference (EMI), high vibration, and extreme temperature fluctuations (-25°C to +70°C). With 2500 V AC galvanic isolation between electrical and optical interfaces, built-in link fault detection, and seamless integration with ABB's proprietary communication protocols, it is ideal for mission-critical applications in power generation, metallurgy, petrochemicals, and renewable energy sectors where uninterrupted data exchange is essential for system stability and operational safety.

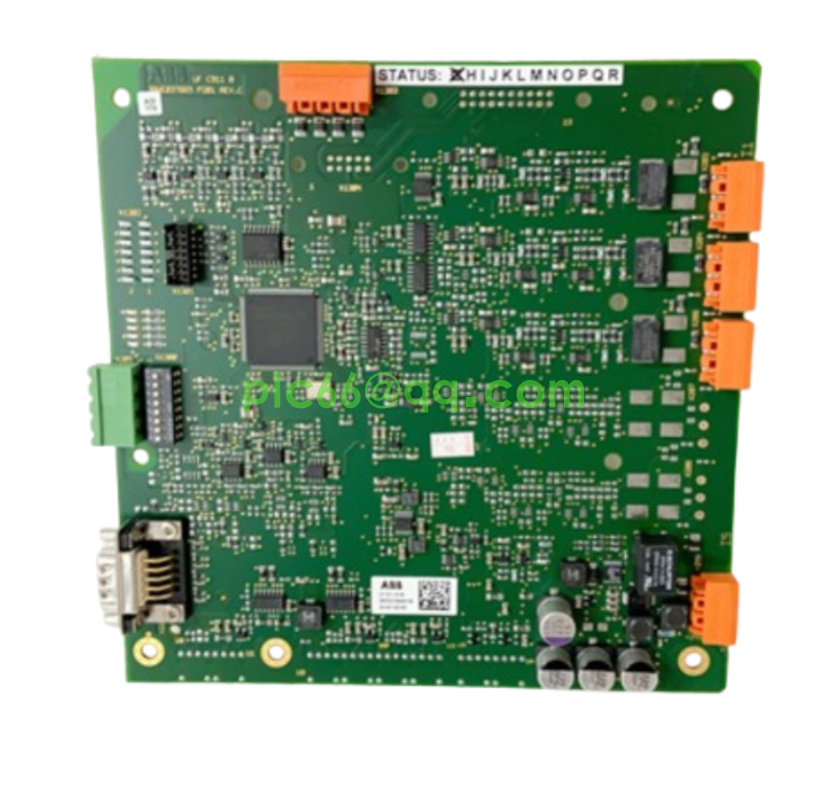

UFC911B106 3BHE037864R0106.png

Product Number: 3BHE037864R0106

ABB model name: UF C911 B106: CVMI2B

Table of Contents Description: UF C911 B106: CVMI2B UF C911 B106: CVMI2B

Detailed description: UF C911 B106: CVMI2B

Net weight of the product: 0.2 kilograms

2. Key Technical Specifications

• Brand & Model: ABB UFC911B106 3BHE037864R0106

• Product Type: Fiber Optic Communication Interface Module (AC 800PEC Series)

• Core Function: High-Speed Data Transmission, Redundant Fiber Communication, Link Fault Detection

• Fiber Optic Ports: 2 x Multi-Mode Fiber (ST Connectors; Wavelength: 850 nm)

• Maximum Transmission Distance: 2 km (Multi-Mode Fiber)

• Communication Bandwidth: 100 Mbps Full-Duplex

• Supported Protocols: ABB PEC Communication Protocol, Modbus TCP (Optional)

• Isolation Rating: 2500 V AC (Electrical-Optical Interface; Channel-to-Channel)

• Power Supply: 24 V DC (Typical Current: 120 mA; Input Range: 19.2-30 V DC)

• Operating Temperature: -25°C to +70°C; Storage Temperature: -40°C to +85°C

• Protection Features: Overvoltage, Reverse Polarity Protection; EMC Compliant with IEC 61000-6-2/4

• Mounting: AC 800PEC Standard Rack (3U Height; 1 Slot Width)

• Physical Dimensions: 100 mm × 160 mm × 220 mm; Weight: 0.45 kg

• Certifications: CE, UL 508, IEC 61010-1, RoHS Compliant

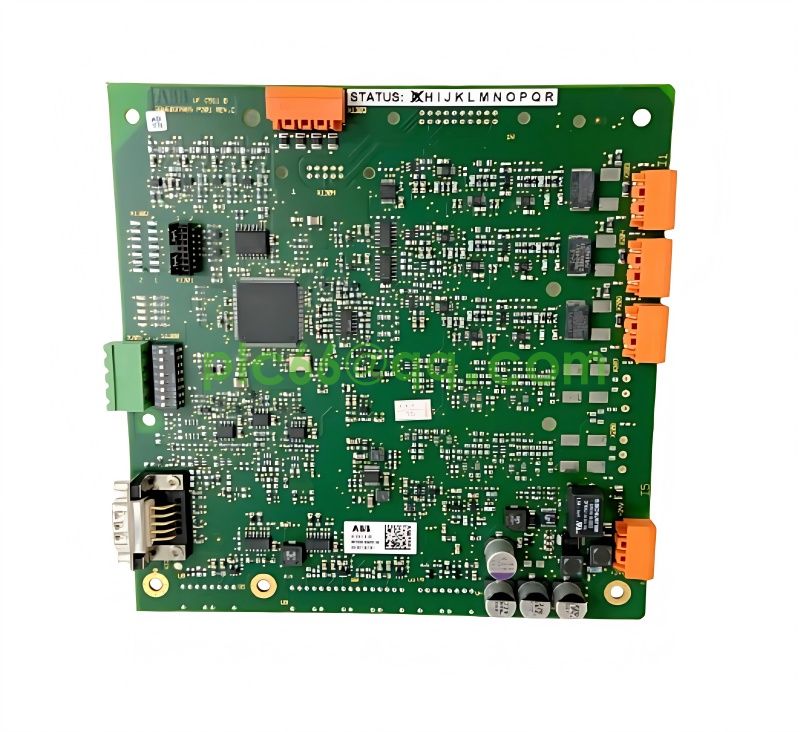

UFC911B106 3BHE037864R0106 -3.png

3. Core Features

• Dual Redundant Fiber Ports: Automatic switchover between primary and backup links ensures uninterrupted communication.

• High-Speed Data Transmission: 100 Mbps full-duplex bandwidth supports real-time control data exchange for AC 800PEC systems.

• EMI Immunity: Fiber optic communication eliminates electromagnetic interference, ideal for high-voltage industrial environments.

• Galvanic Isolation: 2500 V AC isolation prevents ground loops and protects the controller from voltage surges.

• Link Fault Detection: Built-in diagnostics monitor fiber link status and trigger alarms for broken or degraded connections.

• Protocol Flexibility: Native support for ABB PEC protocol with optional Modbus TCP for third-party system integration.

• Hot-Swap Capability: Module replacement without system shutdown minimizes maintenance downtime.

• LED Status Indicators: Real-time monitoring of power, link status, and communication activity for quick troubleshooting.

UFC911B106 3BHE037864R0106 -2.png

4. Typical Applications

• Power Generation: UNITROL Excitation System Communication, Turbine Control Data Exchange, Generator Monitoring.

• Metallurgical Industry: Electric Arc Furnace Control, Rolling Mill Drive System Communication, Smelting Process Automation.

• Petrochemicals: Compressor Control Systems, Pipeline Monitoring Networks, Refinery Process Data Transmission.

• Renewable Energy: Wind Turbine Converter Control, Solar Inverter Data Communication, Energy Storage System Networking.

• Heavy Manufacturing: Industrial Robot Control, CNC Machine Tool Communication, High-Voltage Drive System Integration.

UFC911B106 3BHE037864R0106 -1.png

5. Installation & Maintenance

Installation Steps

• Mounting: Install into AC 800PEC standard rack; secure with locking clips to ensure stable backplane connection.

• Fiber Wiring: Connect multi-mode fiber cables (ST connectors) to redundant ports; ensure minimal bend radius (≥ 30 mm).

• Power Connection: Wire 24 V DC power supply to terminal blocks; verify polarity to avoid damage.

• Configuration: Set communication parameters (protocol, IP address) via ABB Control Builder software.

• Testing: Power on module; check LED link indicators; verify data transmission with controller and remote devices.

Maintenance Tips

• Daily: Inspect LED indicators (Power, Link Active, Fault); monitor system logs for communication errors.

• Weekly: Clean fiber optic connectors with lint-free cloth and isopropyl alcohol; check for cable damage.

• Monthly: Test redundant link switchover by disconnecting the primary fiber port; verify uninterrupted communication.

• Quarterly: Measure optical power levels to ensure signal integrity; check terminal block tightness.

• Annual: Update module firmware; inspect rack ventilation; replace aging fiber cables if necessary.

UFC911B106 3BHE037864R0106.jpg

Recommended products and services

You can click on (ABB ) to visit the official website for more product information.

If you want to purchase, you can contact YMGK's official customer service

For the relevant manual, please click to download and learn about the specific parameters

UFC911B106 3BHE037864R0106 CVMI2B interface board(图2) UFC911B106 3BHE037864R0106.pdf

Technical Document | ABB UFC911B106 3BHE037864R0106 | Fiber Optic Interface Module | AC 800PEC Series

YMGK Purchase Information

This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.

One-Stop Global Industrial Product Procurement

Sales Manager: KI MI

WeChat: 18059884790

WHATSAPP: +86 18059884790 (Click to add)

Email: plc66@qq.com

Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.

For additional inquiries, reach out to us at any time.
